Filter 3/4 20 microns automatic drain size 2 Syntesi series - Metal Work

Name: Filter 3/4 20 microns automatic drain size 2 Syntesi series - Metal Work
Brand: Metal Work
SKU: 5625F505
Price: 75.72 EUR
Availability: BackOrder

€75.72 Tax included

61.56 tax excl.

5625F505

3/4 filter, with a filtration degree of 20μm and automatic discharge, size 2, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.

Series: Synthesis
Reference: 5625F505

metal work logo

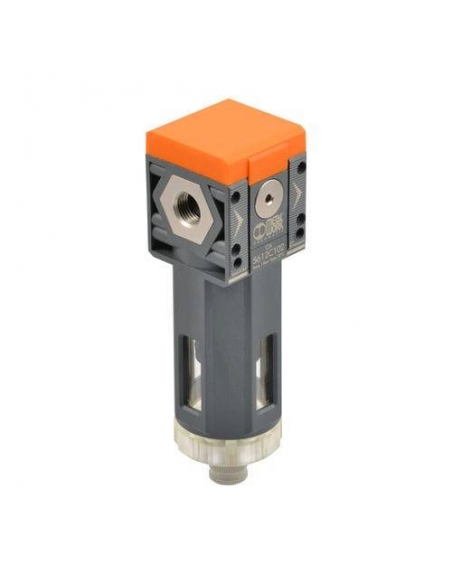

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

3/4 filter cup with a filtration degree of 20μm to retain solid or liquid impurities from the air compressor. Compact size (SY2). The type of purge is automatic, it discharges when the pressure in the filter approaches zero.

Characteristic:

Manufacturer: Metal Work
Manufacturer reference: 5625F505
Threaded drive: 3/4"
Group Size: Size 2
Filtered degree: 20 μm
Maximum inlet pressure ( bar /Mpa/psi): 13 / 1.3 / 188
Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 3800
Flow rate at 6.3 bar (0.63 MPa, 91 psi) ∆P 1 bar (0.1 MPa, 14 psi) (Nl/min): 5200
Fluid: Compressed air or other inert gases
Bowl capacity (condensation) (cm3): 70
Flow rate of additional air intakes at 6.3 bar (Nl/min): 1500
Wall fixing screws: Number 2 M5 screws
Mounting position: Vertical.
Working temperature: -10 to +50ºC.

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Filters and Lubricators Tab

Download (410.99KB)

Productos grupo Syntensi

Download (6.54MB)

Combinations_Accessories Syntesi

Download (6.25MB)
