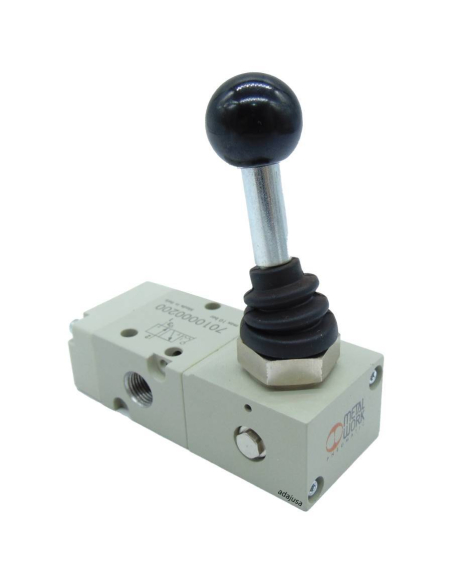

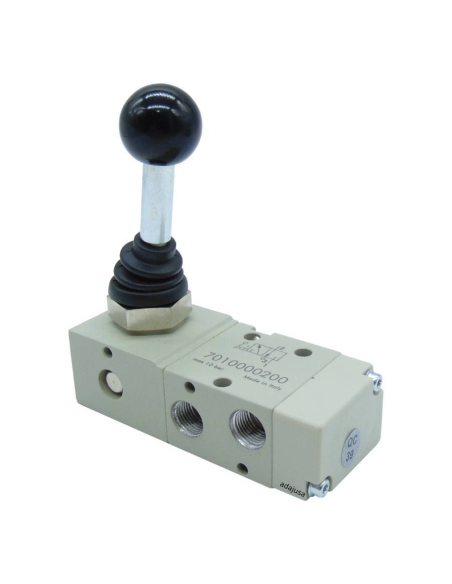

Valve manual lever 1/8 3/2 fixed lever at 90 degrees - Metal Work

€44.56 Tax included

36.23 tax excl.

7010000200

Valve of 1/8 manual drive by bistable lever. 3-way 2 fixed positions, metal body, 90º actuable lever. For control of cylinders of simple effect.

Reference: 7010000200

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Valve of 1/8 manual drive by bistable lever of 2 fixed positions, 3 ways 2 positions that allow to control cylinders of simple effect. In one position the cylinder is collected, in another position the cylinder advances. it can also be used as a passage valve or pneumatic circuit cut-off.

Angle lever drive at 90º.

  • Manufacturer: Metal Work.
  • Reference: MAV 23 OO Code: 7010000200
  • Operating pressure bar: Empty ÷ 10
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min · bar: 121.43
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550

For other models consult.

dimensiones valvula 1-8 3-2 accionamiento manual por palanca

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
