Valve 1/4 5-way 3 fixed positions c.p.- Mindman

€36.06 Tax included

€29.80 tax excl.

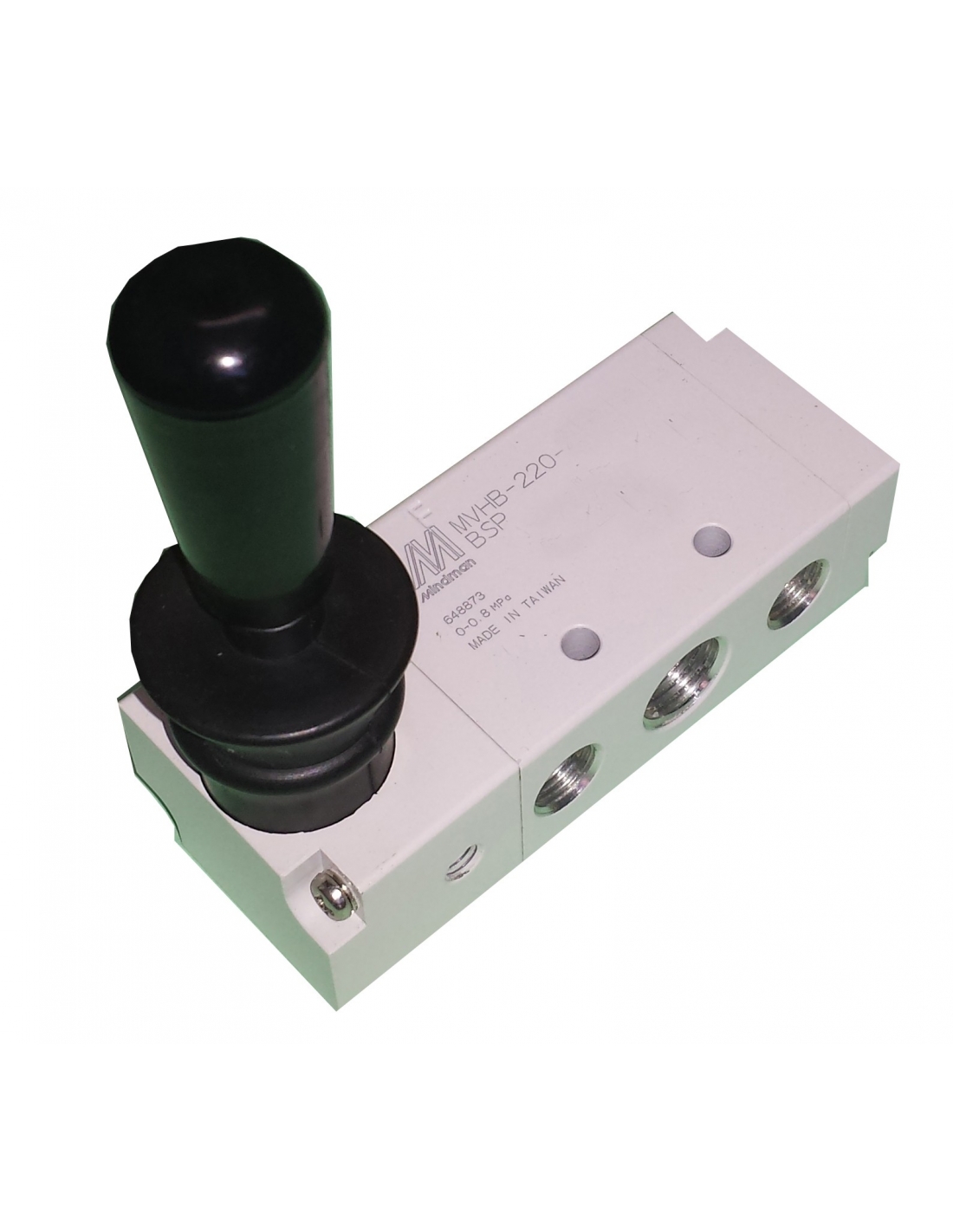

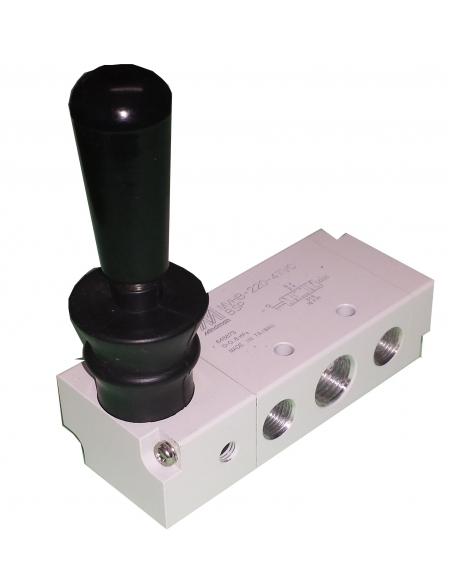

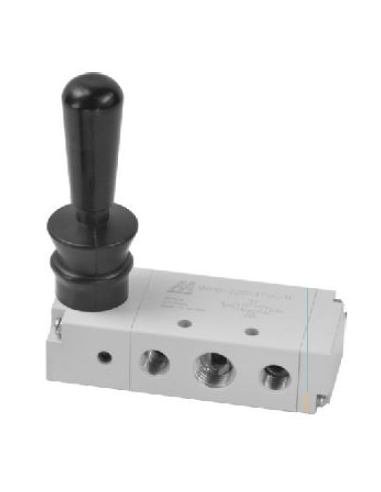

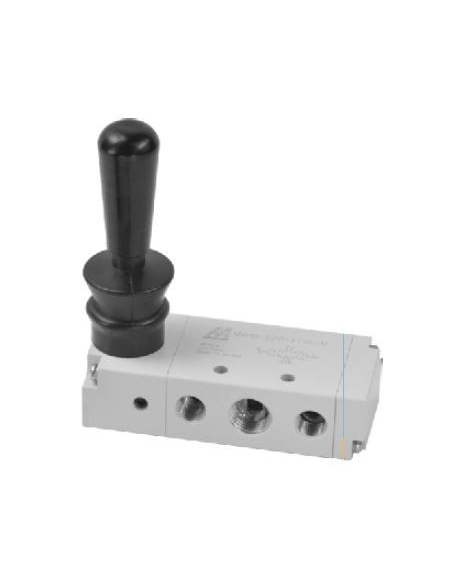

1/4 valve manual drive per lever. 5 ways 3 fixed positions, centers with pressure, metal body. For dual-effect cylinder control.

Reference: 281MVHB2204TVP

https://rodavigo.net/datos/logos-marcas-png/th_mindman.png

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Valve of 1/4 manually operated by lever of 3 fixed positions, centers with pressure, for control of cylinders of double effect, the valve has 3 stable positions, in one of them the cylinder advances, in the intermediate, the cylinder stops but maintains pressure by the two inlets (force), and in the other position the cylinder is collected.

It can also be used as a step or cut valve and for general use


Technical characteristics:

  • Manufacturer: Mindman.
  • Reference: MVHB2604TVP.
  • Type: 5 ways.
  • Mode: 3 bistable positions (fixed), centers with pressure.
  • Thread type: G 1/4".
  • Type of exhaust threads: G 1/8".
  • Effective surface: 18mm².
  • Fluid type: Pressurized air, with or without lubrication.
  • Working pressure: 0 to 8 Kgr.
  • Working temperature: -5º to +60º (Non-condensing).
  • Fixing by screws: 4 drills through Ø4,2mm.
  • Valve body material: Metal.
  • Weight: 278 g.


Dimensiones válvula biestable centros presion 1/4 mindman MVHB-260-4TVC


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

Manual lever valve 1/4 5/3... Manual lever valve 1/4 5/3... 2
Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/3 fixed closed centers - Metal Work

Metal Work
7020000500
€80.72 (€66.71 tax excl.)
Valve of 1/4 manual lever drive. 5 ways 3 positions, closed centers, 3 fixed positions, the valve changes position when the lever is actuated and remains in it until it is changed position, metal body. For control of double effect cylinders. Reference: 7020000500 Representative image for illustrative purposes, the item supplied will correspond to the...
Manual lever valve 1/4 5/3...
Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/3 positions stable closed centers lever 90 degrees - Aignep

Aignep
01VL27CC03
€52.09 (€43.05 tax excl.)
Valve 1/4 manually operated by 90º angle lever of 5 way and stable with 3 fixed positions, closed centers, the valve is actuated when the lever is actuated and returns to the rest position when the lever is no longer actuated. For control of double acting cylinders. Made of anodized and painted aluminum. Series: 01VPart number: 01VL27CC03...
Manual lever valve 1/2 centers pressure return spring lever 90 degrees Metal Work - ADAJUSA
Lever-operated pneumatic valves 1/2

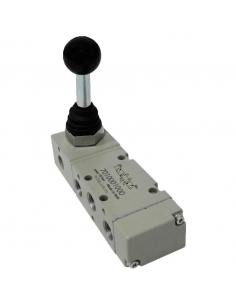

Manual lever valve 1/2 5/3 centers pressure return spring lever 90 degrees - Metal Work
