Handle Valve bistable 1/4 3/2 - Aignep

€37.16 Tax included

30.21 tax excl.

01VT130003

1/4 valve manually operated by handle. 3 way 2 fixed positions. For control of cylinders of simple effect. Made of anodized and painted aluminum.

Series: 01V
Part number: 01VT130003
ESQUEMA BIESTABLE TIRADOR

Logotipo Aignepiconos-válculas aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Valve 1/4 manually operated by handle bistable with 2 fixed positions, 3 way 2 fixed positions, allowing to control cylinders of simple effect.

Fastening by means of lateral screws or front nut. For pneumatic applications.

Manufacturer: Aignep.

  • Part number: 01VT130003
  • Operating pressure: Vacuum ÷ 10
  • Operating temperature °C: -10 ÷ +60
  • Panel mounting: M16x1
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 1200

DIMENSIONES T1

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

Manual lever valve 1/4 5/3 positions closed centers lever 90 degree Aignep | ADAJUSA | price
Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/3 position closed centers spring return lever 90 degree - Aignep

Aignep
01VL07CC03
€55.14 (€44.83 tax excl.)
Valve 1/4 manually operated by 90º angle lever of 5 way and 3 fixed positions, closed centers, spring return, the valve is actuated when the lever is actuated and returns to the rest position when the lever stops being actuated. For control of double acting cylinders. Made of anodized and painted aluminum. Series: 01VPart number: 01VL07CC03...
Manual Lever Valve 1/4 5/3 stable positions closed centers lever 90 degree Aignep | ADAJUSA | price
Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/3 positions stable closed centers lever 90 degrees - Aignep

Aignep
01VL27CC03
€55.14 (€44.83 tax excl.)
Valve 1/4 manually operated by 90º angle lever of 5 way and stable with 3 fixed positions, closed centers, the valve is actuated when the lever is actuated and returns to the rest position when the lever is no longer actuated. For control of double acting cylinders. Made of anodized and painted aluminum. Series: 01VPart number: 01VL27CC03...
Manual pneumatic valve 1/4 5/3 fixed lever 7020000700 MAV36LEOPC | ADAJUSA | price Manual pneumatic valve 1/4 5/3 fixed lever 7020000700 MAV36LEOPC | ADAJUSA | price 2
Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/3 fixed pressure centers - Metal Work

Metal Work
7020000700
€85.20 (€69.27 tax excl.)
Valve of 1/4 manual lever drive. 5 ways 3 positions, pressure centers, 3 fixed positions, the valve changes position when the lever is actuated and remains in it until it is changed position, metal body. For control of double effect cylinders. Reference: 7020000700 Representative image for illustrative purposes, the item supplied will correspond to...
Manual lever valve 1/4 5/3 stable positions open centers lever 90 degree Aignep: ADAJUSA : price
Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/3 stable positions open centers lever 90 degrees - Aignep

Aignep
01VL27OC03
€55.14 (€44.83 tax excl.)
Valve 1/4 manually operated by 90º angle lever of 5 way and stable with 3 fixed positions, open centers, the valve is actuated when the lever is actuated and returns to the rest position when the lever is no longer actuated. For control of double acting cylinders. Made of anodized and painted aluminum. Series: 01VPart number: 01VL27OC03 Representative...

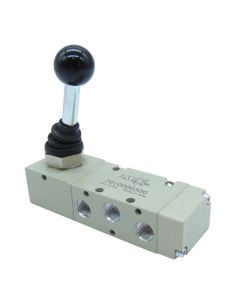

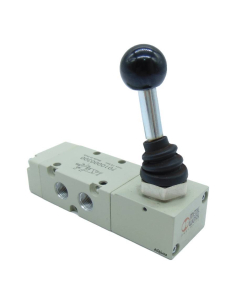

Pneumatic valve 1/4 5 ways 2 positions lever 90º monostable Metal Work | Price adajusa Pneumatic valve 1/4 5 ways 2 positions lever 90º monostable Metal Work | Price adajusa 2
Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/2 return spring lever 90 degrees - Metal Work

Metal Work
7020000300
€81.83 (€66.53 tax excl.)
Valve of 1/4 manual actuation by angular lever to 90º monostable. 5 ways 2 spring return positions, the valve is actuated when the valve is actuated and returns to the resting position when the valve stops being actuated, metal body. For control of double effect cylinders. Reference: 7020000300 Representative image for illustrative purposes, the...
Manual valve 1/4 5/3 monostable lever 7020001100 MAV36LESPC Metal Work | ADAJUSA | price Manual valve 1/4 5/3 monostable lever 7020001100 MAV36LESPC Metal Work | ADAJUSA | price 2
Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/3 centers pressure return spring lever 90 degrees - Metal Work

Metal Work
7020001100
€85.20 (€69.27 tax excl.)
Valve of 1/4 manual lever drive. 5 ways 3 positions, centers in pressure, spring return, the valve is actuated when the lever is actuated and returns to the resting position when the lever stops being operated, metal body. For control of double effect cylinders. Reference: 7010001100 Representative image for illustrative purposes, the item supplied...

Customers who bought this product also bought:

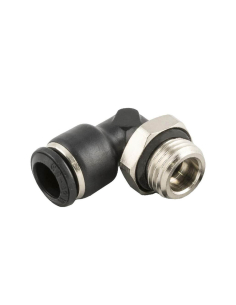

Male cylindrical adjustable elbow fitting 1/8 tube 8mm Series 55000 - Aignep | ADAJUSA
