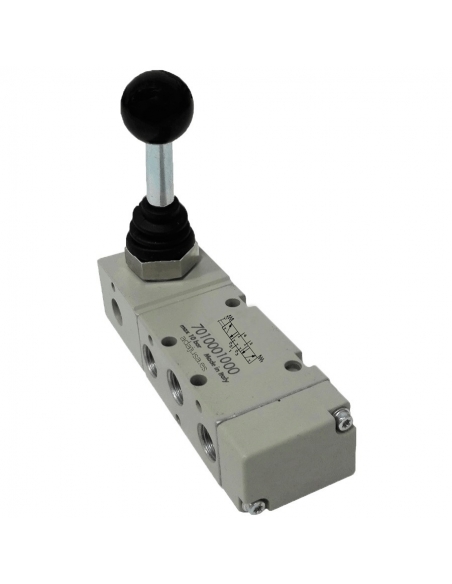

Manual lever valve 1/2 5/3 closed centers return spring lever 90 degrees - Metal Work

€182.43 Tax included

€148.32 tax excl.

Valve of 1/2 manual lever drive. 5 ways 3 positions, closed centers, spring return, the valve is actuated when the lever is actuated and returns to the resting position when the lever stops being operated, metal body. For control of double effect cylinders.

Reference: 7030001000

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Valve of 1/2 manual actuation by lever of 3 positions, closed centers, spring return, the valve is activated when the lever is actuated and returns to the resting position when the lever stops being activated, for control of double-acting cylinders, the valve has 3 positions, in one of them the cylinder advances, in the plant, the cylinder stops but maintains pressure (force) not letting the air present in its outlets escape, and in the other position the cylinder is collected.

It can also be used as a step or cut valve and for general use

Specifications:

  • Manufacturer: Metal Work.
  • Reference: MAV 46 LES CC
  • Code: 7030001000.
  • Fluid: Pressurized or vacuum air, with or without lubrication.
  • Valve Body: aluminum.
  • Sliding material: Nickel-plated aluminum.
  • Joints: NBR.
  • number of tracks: 5.
  • Size: 1/2".
  • Positions: 3 closed centers, return by spring.
  • Control: By lever.
  • Working pressure: Vacuum÷10 bar.
  • Temperature: -10÷60ºC.
  • Nominal diameter: 15
  • Conductance C (Nl/min · bar): 971.43
  • Critical ratio b (bar/bar): 0.43
  • Flow rate at 6bar ΔP 0.5bar: 3200Nl/min.
  • Flow rate at 6bar ΔP 1bar: 4600 Nl/min.
  • Installation: in any position.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
