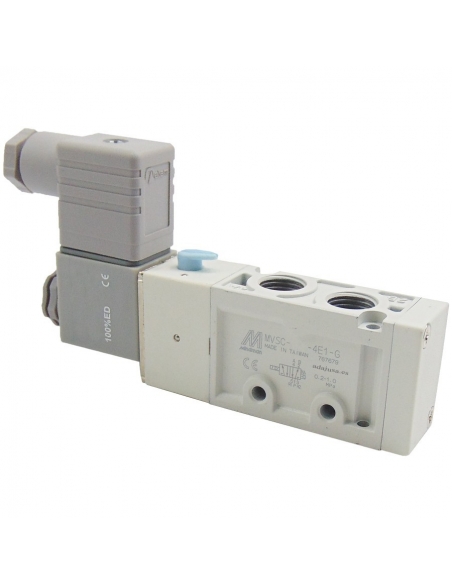

Solenoid valve 3/8 5 way monostable coil 24Vac - Mindman S.300

Name: Solenoid valve 3/8 5 way monostable coil 24Vac - Mindman S.300
Brand: Mindman
SKU: MVSC3004E14
Price: 44.3661 EUR
Availability: InStock

€44.37 Tax included

€36.07 tax excl.

3/8" 5-way monostable pneumatic solenoid valve, with connector and operating voltage of 24Vac.

Reference: 281MVSC3004E14

Esquema neumatico electrovalvula 5 vias monoestable

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Pneumatic solenoid valve of 3/8 5 ways monostable, with 24Vac coil. For general and industrial applications.

The supply of the solenoid valve includes:

Solenoid valve 3/8-5/2.
1 Coil 24Vac
1 x 22mm connector

Specifications:

Solenoid valve manufacturer: Mindman.
Reference: 281MVSC3004E13
Thread type: G 3/8"
Coil voltage: 24Vac.
Coil power: 2.5 W.
Fluid type: Pressurized air, with or without lubrication.
Solenoid valve working pressure: 2 to 8 bar.
Test pressure: 1 MPa
Effective selection: 35mm²
Working temperature: -5ºC to 50ºC.
Weight: 293 g.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
