Solenoid valve 3/8 5 ways monostable coil 230Vca Mindman S.300 - ADAJUSA

Solenoid valve 3/8 5-way monostable coil 230Vca - Mindman S.300

Name: Solenoid valve 3/8 5-way monostable coil 230Vca - Mindman S.300
Brand: Mindman
SKU: MVSC3004E11
Price: 45.2025 EUR
Availability: PreOrder

Delivery in 3 days

€45.20 Tax included

€36.75 tax excl.

No queries yet, leave the first!

Privacy

Shipments

Returns

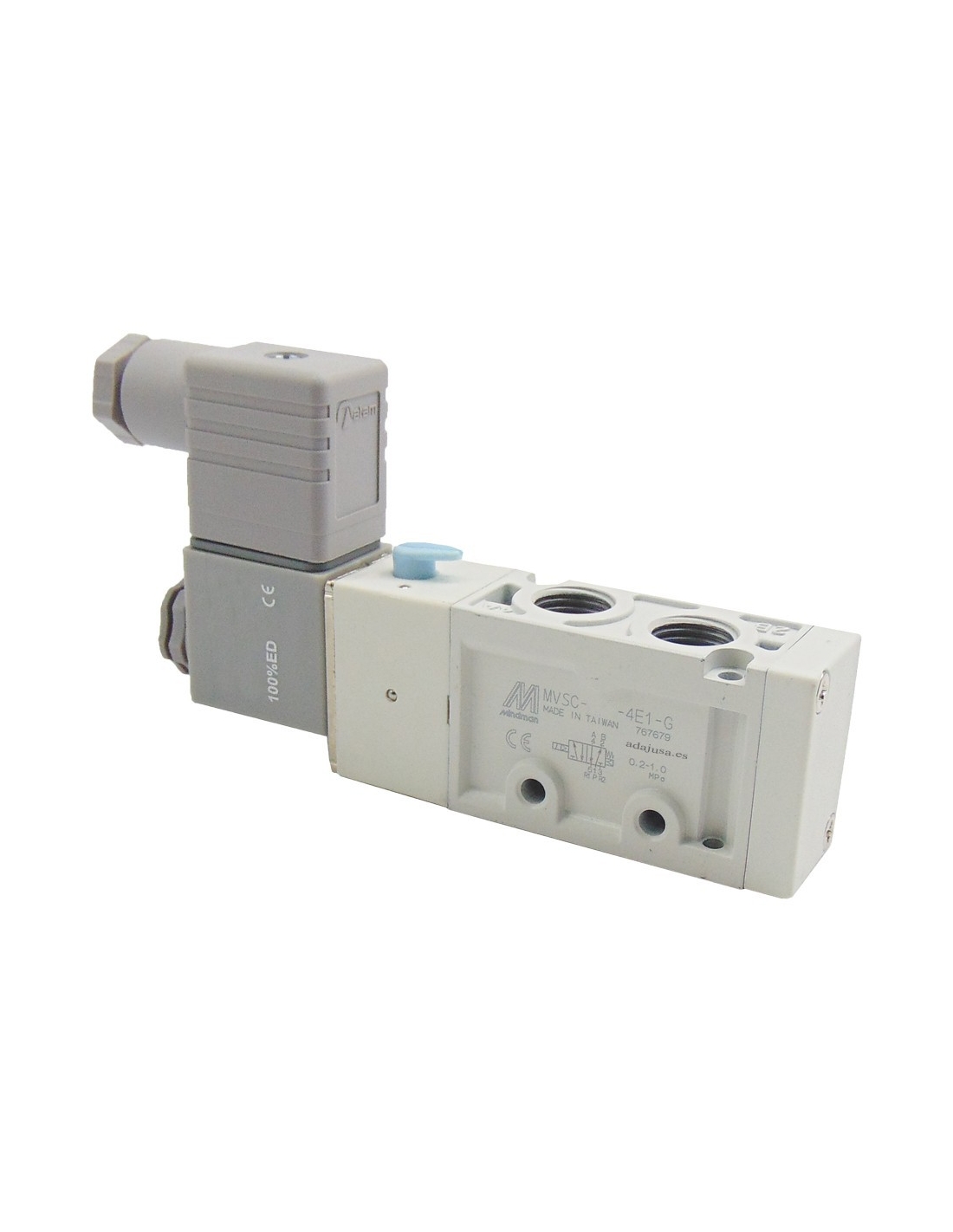

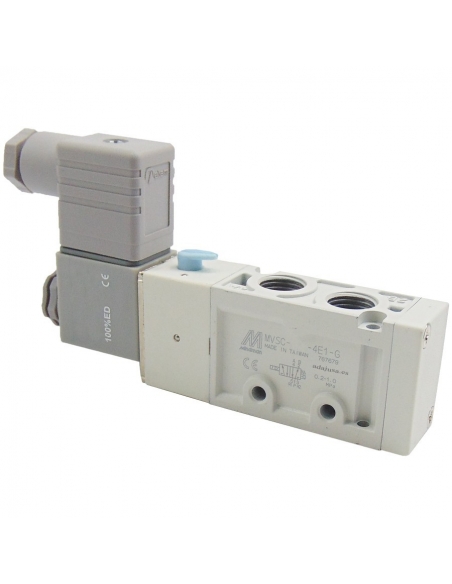

Pneumatic solenoid valve of 3/8 5 ways monostable, with coil of 230Vac. For general and industrial applications.

The supply of the solenoid valve includes:

Solenoid valve 3/8-5/2.
1 Coil 230Vac
1 x 22mm connector

Specifications:

Solenoid valve manufacturer: Mindman.
Reference: 281MVSC3004E11
Thread type: G 3/8"
Coil voltage: 230Vac.
Coil power: 2.5W.
Fluid type: Pressurized air, with or without lubrication.
Solenoid valve working pressure: 2 to 8 bar.
Test pressure: 1 MPa
Effective selection: 35mm²
Working temperature: -5ºC to 50ºC.
Weight: 293 g.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Solenoid valve sheet MVSC300

Download (912.26KB)
