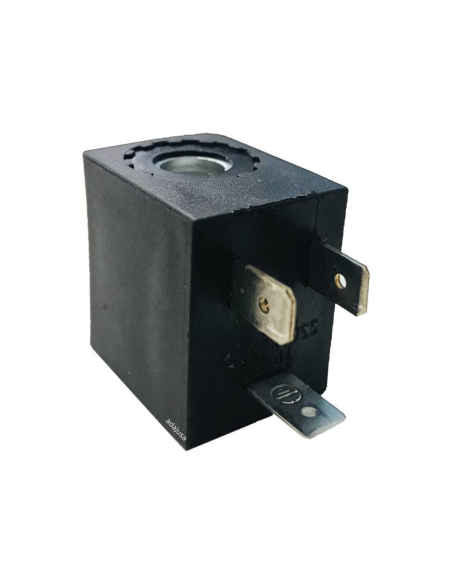

Solenoid valve coil 220VAC Metal Work W0215000031 Price adajusa
Solenoid valve coil 220VAC Metal Work W0215000031 Price adajusa

Solenoid valve coil 230Vac 5VA T22 diameter 8 - Metal Work

€8.92 Tax included

7.25 tax excl.

W0215000031

Coil for solenoid valve size 22mm, voltage 220 - 240Vca., with a consumption of 5VA, for cores of Ø8mm.

Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core.

Reference: W0215000031

Logotipo Metal Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Coil size 22mm for voltage of 220 - 240 Vac with a power of 5VA, suitable for solenoid valves with an actuator core diameter of 8mm.

Suitable for solenoid valves manufactured by:

  • Metal Work.
  • Airon.

Specifications:

  • Manufacturer: Metal Work.
  • Reference: W0215000031
  • Rated voltage: 230Vca.
  • Voltage tolerance: -10% +15%.
  • Rated power: 5VA.
  • Starting power: 8VA.
  • Core diameter: 8.2mm (8mm).
  • Insulation type: F155.
  • Degree of protection: IP65 according to EN60529 with connector.
  • Temp. max. coil at ED100%: 70ºC for an ambient temperature of 20ºC.
  • ATEX 94/9/EC regulation, group II category 3GD.
  • Do not continuously expose to atmospheric agents.

Dimensiones bobinas neumaticas

Material for professional use, install in compliance with the regulations in force at the place of installation.
