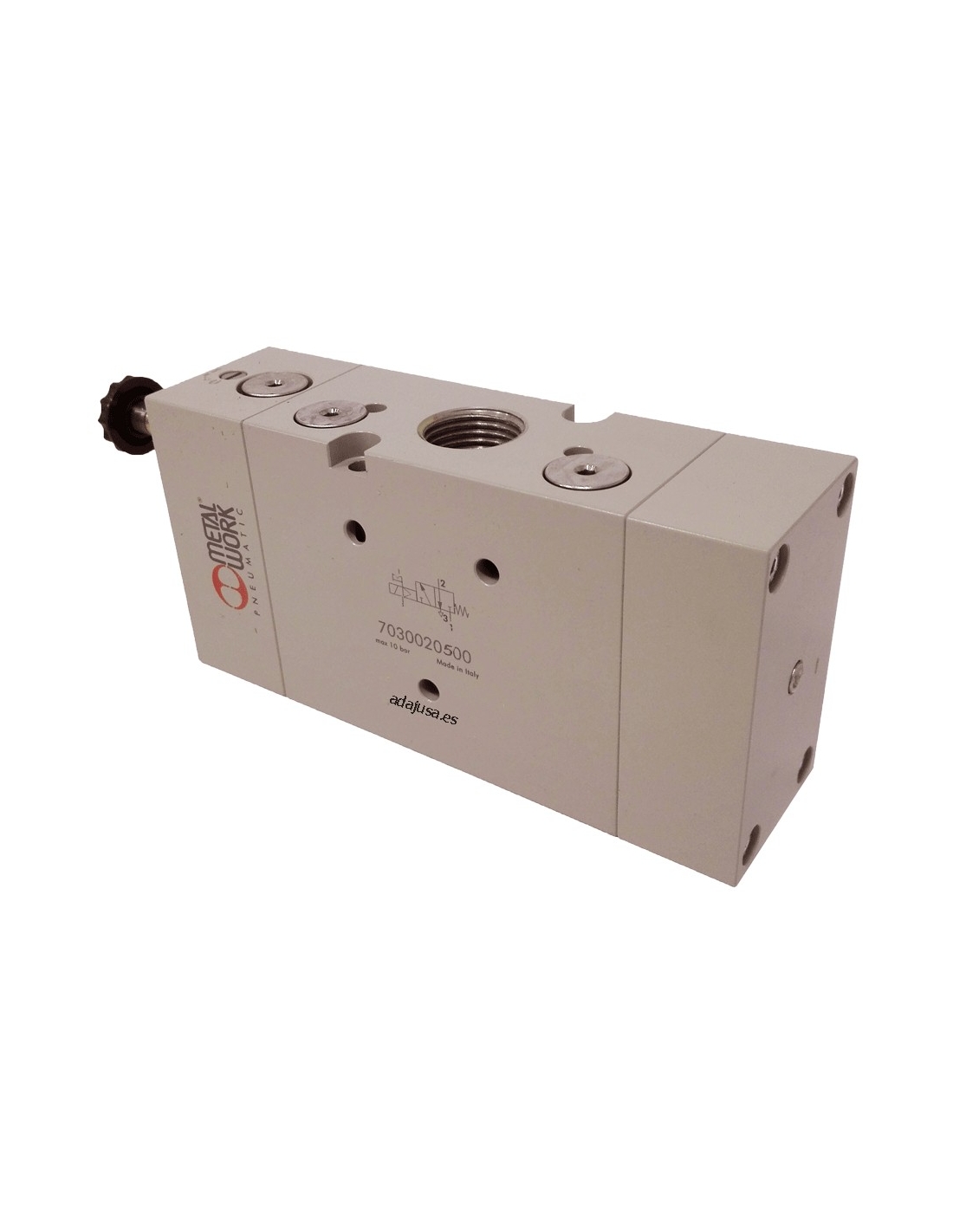

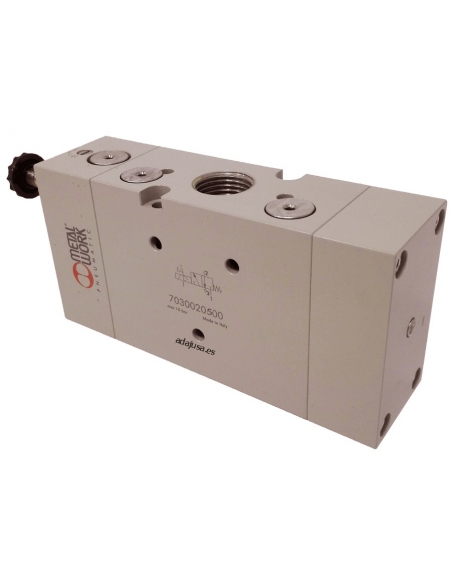

Solenoid valve 1/2 3 ways monostable assisted without coil - Metal Work

€156.94 Tax included

€127.59 tax excl.

Solenoid valve 1/2 3 ways monostable assisted, closed (NC), for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.

Reference: 7030020500



Logo-Metal-Work
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/2 3-way monostable assisted pneumatic solenoid valve, supply does not include coil. For general and industrial applications, to be used with 22mm coils. This solenoid valve needs an external pneumatic pressure socket for pilot operation, allowing you to work even in vacuum applications.

specifications:

  • Manufacturer of the solenoid valve: Metal Work.
  • Manufacturer's Reference: SOV43SESNC Code: 7030020500
  • Working pressure of the solenoid valve: vacuum at 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10oC to 60oC.
  • Nominal diameter: 15mm.
  • Flow rate at 6 bars p 1 bar: 4600 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvula 1_2 3 vías monoestable

Material for professional use, install in compliance with the regulations in force at the place of installation.


To expand the information you can download the data sheet by clicking on the tab "Attachments"
