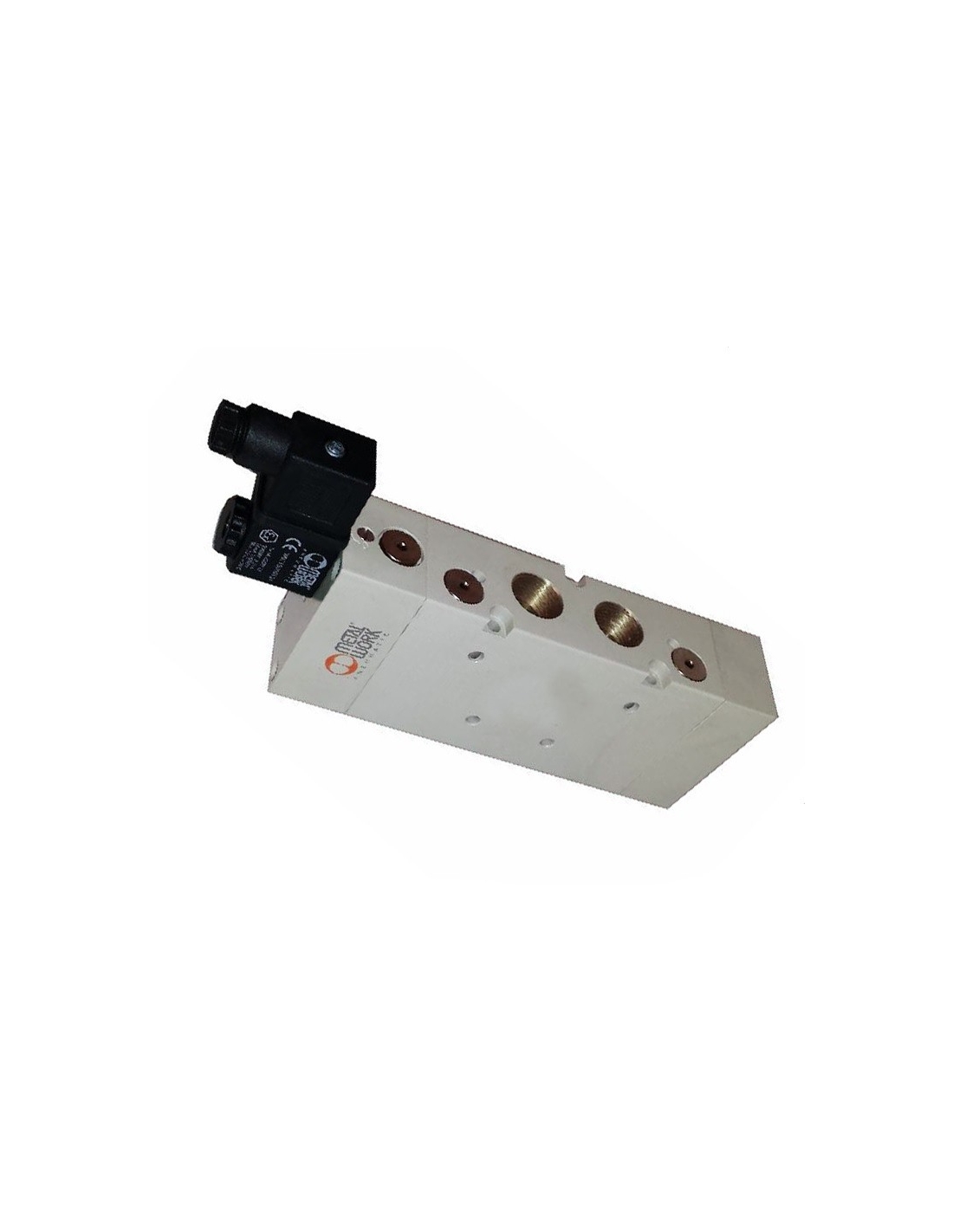

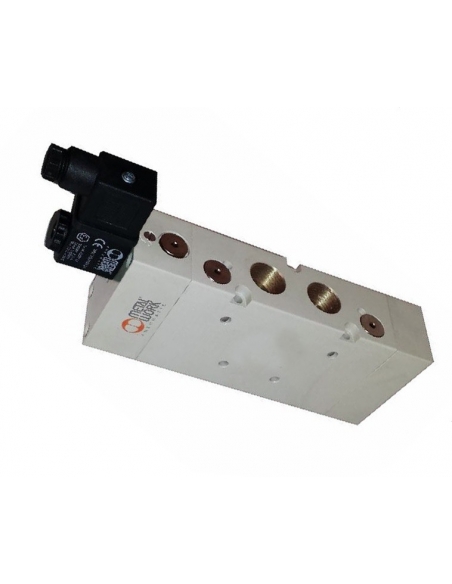

Solenoid valve 1/2 5 ways monostable assisted 24Vdc 5W - Metal Work

€184.92 Tax included

150.34 tax excl.

PK-E125A24C

Electrovalve 1/2 5-way assisted, closed monostable (NC), for industrial and general use applications.

Coil for electrovalve size 22mm, voltage 24Vcc., with a consumption of 5W, for cores of Ø8mm. 22 mm connector



Logo-Metal-Work
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

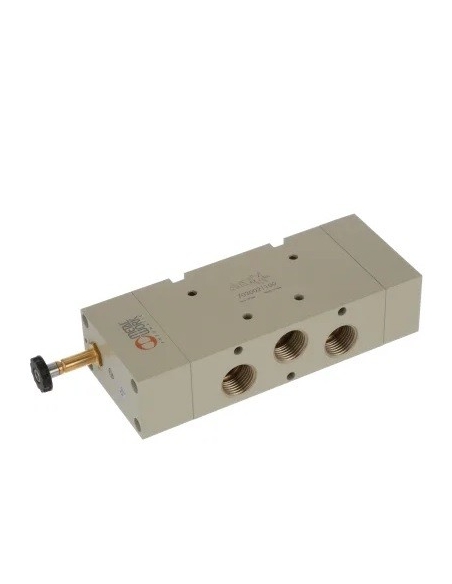

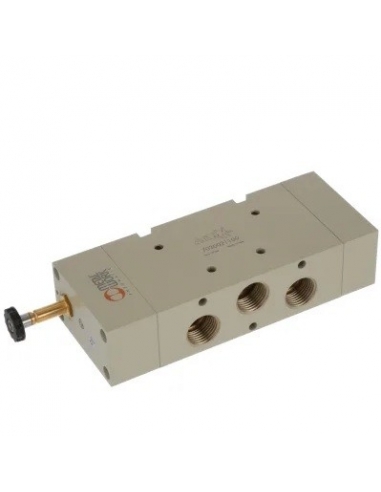

1/2 5-way solenoid actuation assisted mechanical assisted spring solenoid, for industrial pneumatic applications or general use. Supports 22mm Metal Work coils with 8mm core. Supply does not include coil or connector.

Made of aluminum, compact size and high airflow, short response time.

This eléctrovalvula, when assisted, needs pressure in the pilot socket, which is independent of the valve sockets, this allows to control fluids with very low pressures and even be used for vacuum applications.

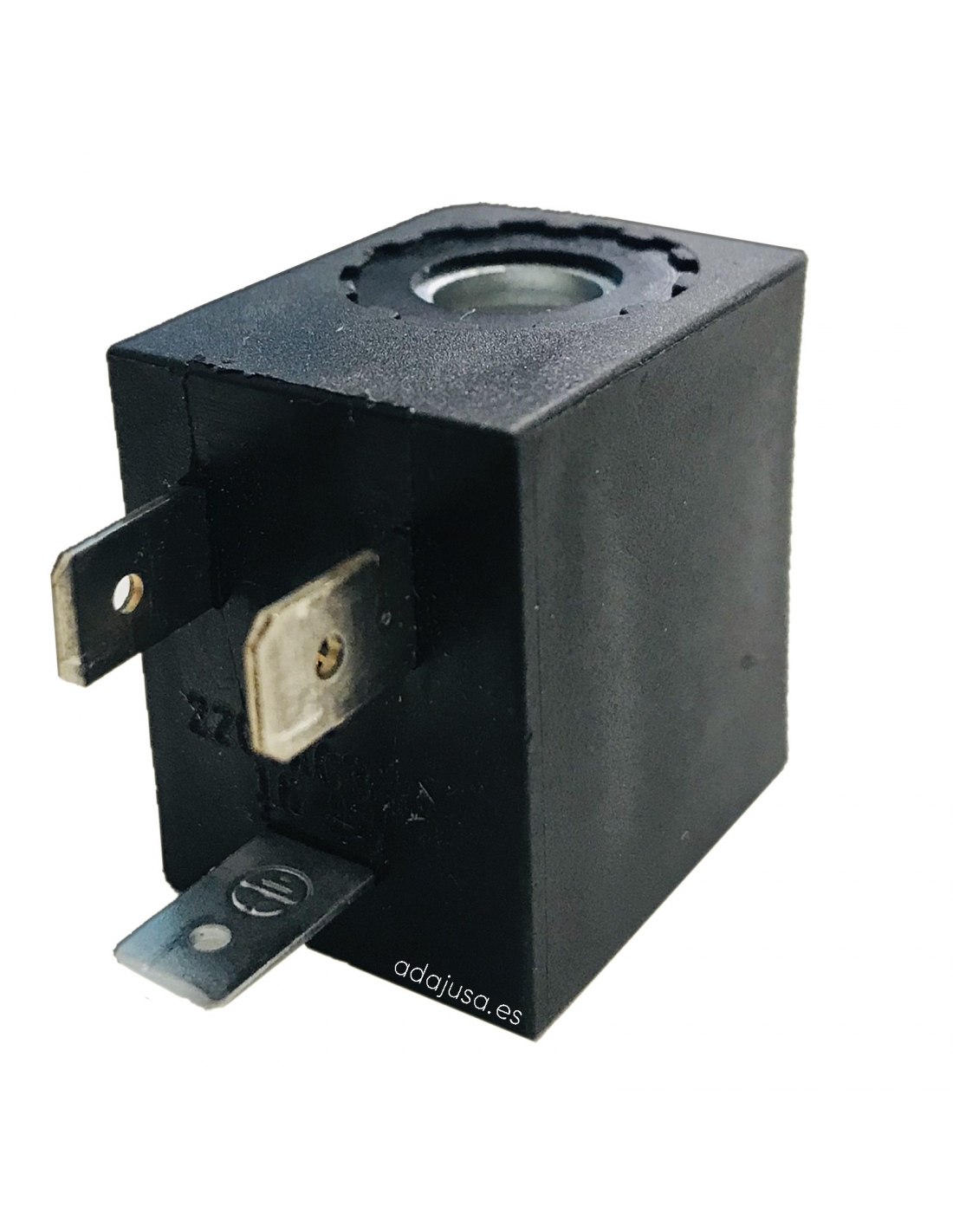

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 5W, for cores of 8mm.

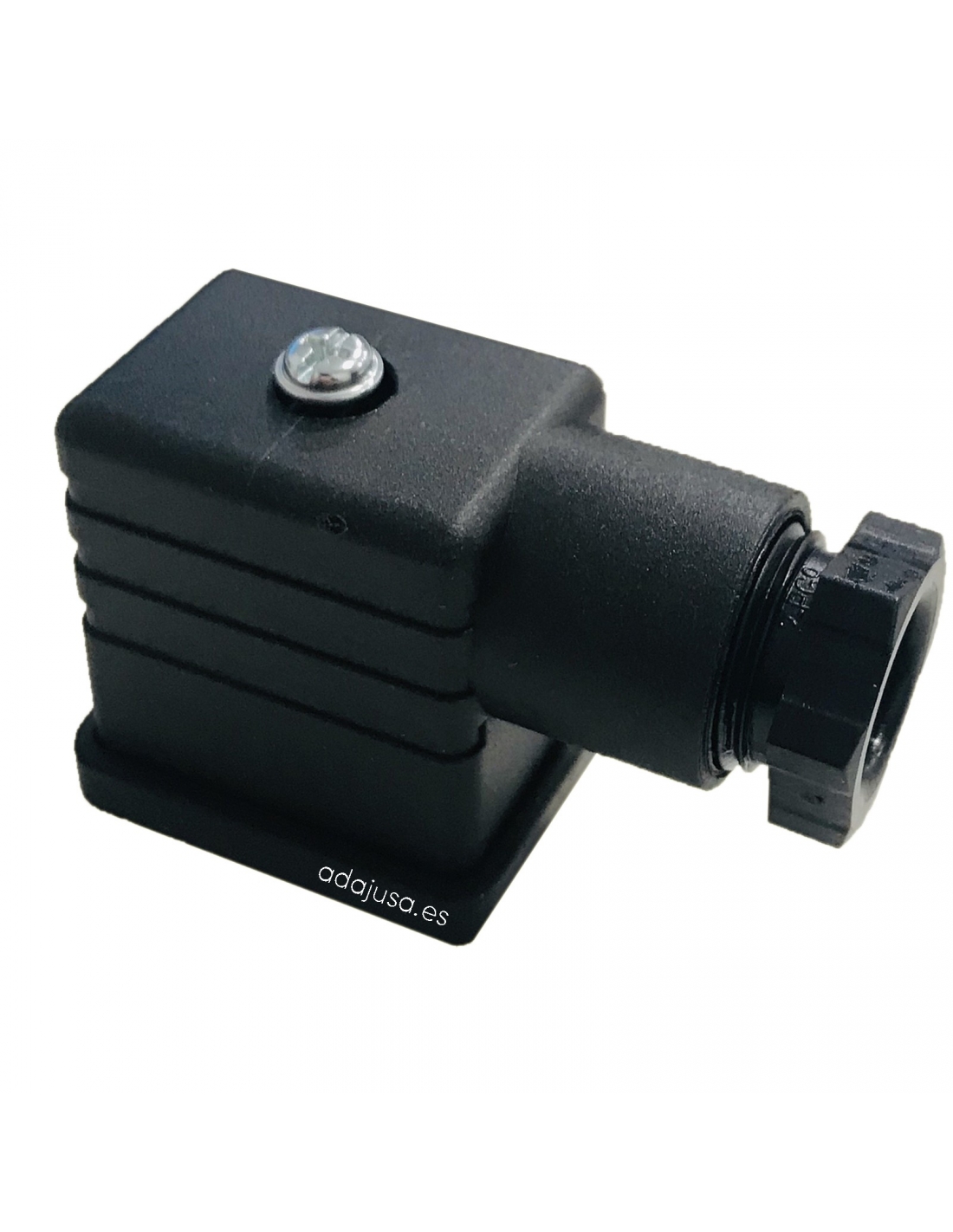

22mm plastic connector

Manufacturer: Metal Work
Reference: 7030025100 SOV 45 SES OO

Supply includes:

  • Solenoid valve 1/2 5/2 single-stable assisted
  • Coil 24Vcc 5W
  • Connector 22 mm

Material for professional use, install in compliance with the regulations in force at the place of installation.


To expand the information you can download the data sheet by clicking on the tab "Attachments"
