Solenoid valve 1/2 5/2 monostable series 01V voltage 230Vac : Aignep: ADAJUSA : price
Solenoid valve 1/2 5/2 monostable series 01V voltage 230Vac : Aignep: ADAJUSA : price

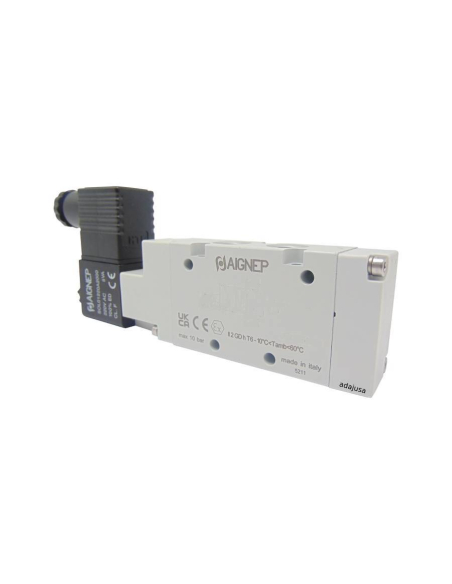

Solenoid valve 1/2 5 way monostable 230Vac 5VA - Aignep

€121.28 Tax included

98.6 tax excl.

PK-01VS050005-230Vac

Complete 1/2 5 way monostable solenoid valve, with 230Vac coil and 5VA consumption, connector size 22mm, with G1/2" threads, anodized aluminum body, NBR seals.


Reference: 01VS050005-230Vac
Esquema neumatico electrovalvula 5 vias monoestable
Logotipo Aignep
Logotipos normativas Aignep Adajusa (1)
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Out of stock

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve 1/2 5 ways monostable 01V series. Body made of anodized and painted aluminum, nickel-plated aluminum slide and NBR seals. European manufacture. Coil 230Vac 5VA and connector.

The supply includes:

  • Pneumatic solenoid valves 1/2" 5 ways
  • Coil 230Vac 5VA
  • Connector 22mm


Technical characteristics:

  • Manufacturer: Aignep
  • Part number: 01VS050005-230Vac
  • Type of threads: G 1/2"
  • Monostable bar: 2 to 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 5000 Nl/mi
  • Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10
  • Class of isolation: F 155
  • Fluid: Filtered air without lubrication
  • Number of ways: 5
  • Operation: Monostable
  • Seal material: NBR
  • Rated voltage: 230Vac
  • Voltage tolerance: ±10%
  • Rated power: 5VA
Dimensiones electrovalvulas 1_8 5 vias monoestables Aignep Adajusa
Imagen construtiva electrovalvulas 3 vias Aignep Adajusa Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"
