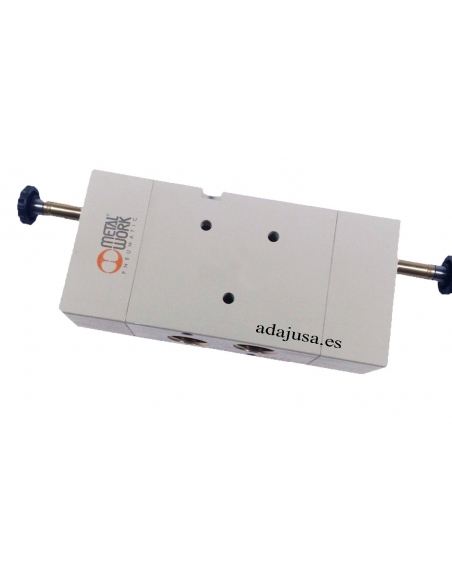

solenoid valve 1/2 5 ways bistable 24Vac - Metal Work - ADAJUSA

Solenoid valve coil 24Vdc 5W T22 Ø8 - Metal Work

Solenoid valve connector size 22

Electrovalvula 1/2 5 via bistable 24Vdc 5W - Metal Work - ADAJUSA

solenoid valve 1/2 5 ways bistable 24Vac - Metal Work - ADAJUSA

Solenoid valve coil 24Vdc 5W T22 Ø8 - Metal Work

Solenoid valve connector size 22

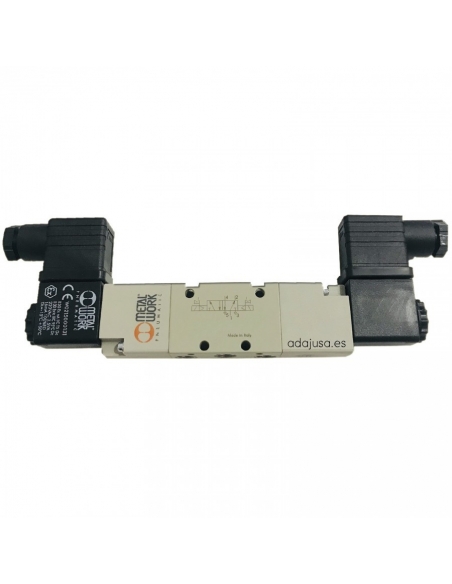

Solenoid valve 1/2 5 ways bistable 24Vac 5VA - Metal Work

€232.22 Tax included

€188.80 tax excl.

PK-E125BI24A

Solenoid valve 1/2 5 ways bistable without coil, for industrial applications and general use. With 24Vac connectors and coils

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

2x

Solenoid valve connector size 22

Solenoid valve connector size 22 - Metal Work

€1.45

2x

Coil for solenoid valve 24VAC Metal Work W0215000011 Price adajusa

Solenoid valve coil 24Vac 5VA T22 diameter 8 - Metal Work

€8.92

1x

Solenoid valve 1/2 5 ways bistable - Metal Work - ADAJUSA

Solenoid valve 1/2 5 ways bistable - Metal Work

€211.49

No queries yet, leave the first!

Pneumatic solenoid valve of 1/2 5 ways bistable. For general and industrial applications.

Solenoid valve coil 24Vac 5VA T22 diameter 8

22 mm plastic connector

The supply includes:

1 Solenoid valve 1/2" 5/2 bistable
2 Coils 24Vac 5VA
2 Connectors 22 mm

Specifications:

Solenoid valve manufacturer: Metal Work.
Manufacturer reference: 7030021200 SOV 45 SOB OO
Voltage: 24Vac
Consumption: 5VA
Solenoid valve working pressure: vacuum at 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10ºC to 60ºC.
Nominal diameter: 15mm.
Flow at 6 bars Δp 1 bar: 4600 Nl/min.
Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

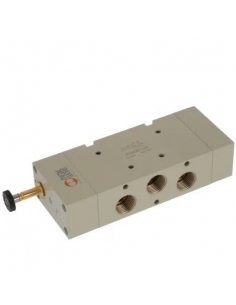

Solenoid valve 1/2 5-way monostable - Metal Work - adajusa.es

Solenoid valves 1/2

Solenoid valve 1/2 5 ways monostable - Metal Work

€174.55 (€141.91 tax excl.)

Solenoid valve 1/2 5 ways monostable mechanical spring without coil, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.Reference: 7030021100Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 1/2 5 ways monostable assisted - Metal Work - adajusa.es

Solenoid valves 1/2

Solenoid valve 1/2 5 ways monostable assisted - Metal Work

€174.55 (€141.91 tax excl.)

Solenoid valve 1/2 5 ways monostable assisted, closed (NC), for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.Reference: 7030021500Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 1/2 5 ways bistable - Metal Work - ADAJUSA

Solenoid valves 1/2

Solenoid valve 1/2 5 ways bistable differential - Metal Work

€211.49 (€171.94 tax excl.)

Solenoid valve 1/2 5 ways differential bistable without coil, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.Reference: 7030021300Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Multiple base for 1/2 5-way valves Mindman 460 series- ADAJUSA

Multiple base for 1/2 5-way valves Mindman 460 series- ADAJUSA 2

Solenoid valves 1/2

Multiple base plate for 1/2 5-way solenoid valves S.460 - Mindman

€27.44 (€22.31 tax excl.)

Multiple base plate for 5-way 1/2" size solenoid valves, MVSC460 seriesReference: 281MVSC4605BxxRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Electrovalvula 1/2 5 vias bistable 230Vac 5VA - Metal Work - ADAJUSA

Electrovalvula 1/2 5 vias bistable 230Vac 5VA - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/2

Solenoid valve 1/2 5 ways bistable 230Vac 5VA - Metal Work

€238.24 (€193.69 tax excl.)

Solenoid valve 1/2 5 ways bistable without coil, for industrial applications and general use. With 230Vac connectors and coilsRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Coil for solenoid valve 24Vcc Metal Work W0215000001 Price adajusa

Accessories for solenoid valves

Solenoid valve coil 24Vcc 5W T22 diameter 8 - Metal Work

€8.92 (€7.25 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 5W, for cores of Ø8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core.Reference: W0215000001 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

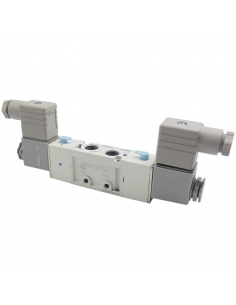

Solenoid valve 1/2 5 ways 3 positions pressure 230Vac Mindman - ADAJUSA

Delivery in 3 days

Solenoid valves 1/2

Solenoid valve 1/2 5 way 3 positions centers pressure 24Vdc - Mindman S.460

€108.62 (€88.31 tax excl.)

Pneumatic solenoid valve of 1/2" 5 ways 3 positions, centers in pressure,metal body, with coils at 24Vdc. For double effect cylinder control. Reference: 281MVSC4604E2P2 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

ATEX coil for solenoid valve 110Vac size 30 Aignep: ADAJUSA : price

Accessories for solenoid valves

Coil solenoid valve 110Vac 4,8VA Size 30mm diameter 9 ATEX - Aignep

€92.55 (€75.24 tax excl.)

ATEX coil for solenoid valve size 30mm, voltage 110Vac, for Ø9mm cores. Coil consumption 4,8VA. Valid for solenoid valves with 9mm actuator core.Reference: SOLX2110A2000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.For more information, download the attached datasheet.

Solenoid valve 1/2 3 bistable roads assisted 24Vcc 5W - Metal Work - adajusa.es

Solenoid valve 1/2 3 bistable roads assisted 24Vcc 5W - Metal Work - adajusa.es 2

Pack

Solenoid valves 1/2

Solenoid valve 1/2 3-way bistable assisted 24Vcc 5W - Metal Work

€208.34 (€169.38 tax excl.)

Solenoid valve 1/2 3 ways bistable assisted, closed (NC), for industrial applications and general use. Solenoid valve coil 24Vdc 5W T22 diameter 8 - Connector 22 mm Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

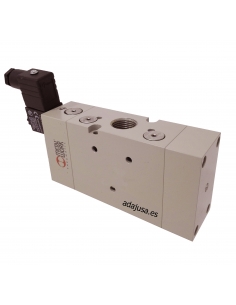

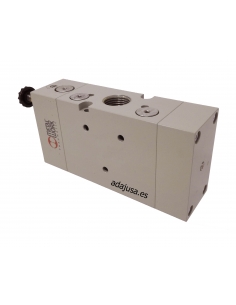

Solenoid valve 1/2 3 ways monostable assisted 24Vac 5VA - Metal Work - adajusa.es

Solenoid valve 1/2 3 ways monostable assisted 24Vac 5VA - Metal Work - adajusa.es 2

Pack

Solenoid valves 1/2

Solenoid valve 1/2 3-way monostable assisted 24Vac 5VA - Metal Work

€170.42 (€138.55 tax excl.)

1/2 3-way monostable assisted, closed (NC) solenoid valve for industrial and general use applications. Coil for solenoid valve size 22mm, voltage 24Vac., with a consumption of 5VA, for cores of 8mm. Connector 22 mmRepresentative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

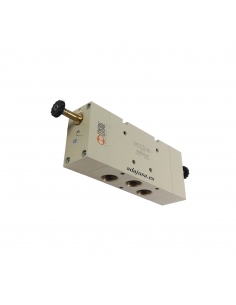

solenoid valve 1/2 5 way 3 positions asytida pressure centers 110Vac 5VA - Metal Work - ADAJUSA

solenoid valve 1/2 5 way 3 positions asytida pressure centers 110Vac 5VA - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/2

Solenoid valve 1/2 5 way 3 positions assisted c. p. 110Vac 5VA - Metal Work

€246.10 (€200.08 tax excl.)

Solenoid valve 1/2 5 way 3 positions assisted monostable pressure centers. For industrial applications and general use. Solenoid valve coil 110Vac 5VA T22 diameter 8 - Connector 22 mm. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

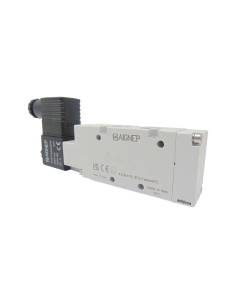

Solenoid valve 1/2 5/2 monostable series 01V voltage 12Vdc : Aignep: ADAJUSA : price

Pack

Solenoid valves 1/2

Solenoid valve 1/2 5 way monostable 12Vdc 3W - Aignep

PK-01VS050005-24Vcc

€121.28 (€98.60 tax excl.)

Complete 1/2 5 way monostable solenoid valve, with 12Vdc coil and 3W power consumption, connector size 22mm, with G1/2" threads, anodized aluminum body, NBR seals. Reference: 01VS050005-12Vdc Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

View

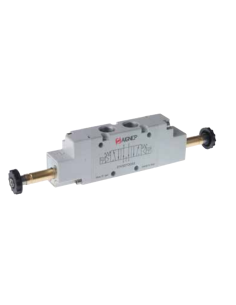

Solenoid valve 1/2 5/3 monostable open centers 01V series | Aignep| ADAJUSA | price

Solenoid valves 1/2

Solenoid valve 1/2 5/3 monostable - open centers Aignep

€156.36 (€127.12 tax excl.)

Solenoid valve 1/2 5 ways 3 positions monostable, open centers, with G1/2" threads, anodized aluminum body, NBR seals.Reference: 01VS07OC05 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

Solenoid valve 1/2 5 way 3 positions escape centers - Metal Work - ADAJUSA

Solenoid valves 1/2

Solenoid valve 1/2 5 way 3 positions escape centers - Metal Work

€225.36 (€183.22 tax excl.)

Solenoid valve 1/2 5 way 3 positions monostable exhaust centers. For industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.Reference: 7030022200Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

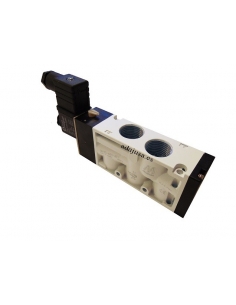

Solenoid valve 1/2 5-way monostable 24Vdc - Mindman S.460 - ADAJUSA

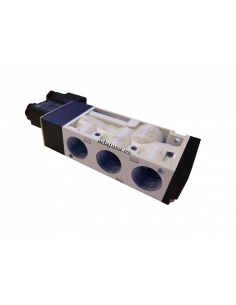

Solenoid valve 1/2 5-way monostable 24Vdc - Mindman S.460 - ADAJUSA 2

Delivery in 3 days

Solenoid valves 1/2

Solenoid valve 1/2 5-way monostable 24Vdc - Mindman S.460

€56.67 (€46.07 tax excl.)

1/2" 5-way monostable normally closed (NC) pneumaticsolenoid valve, with 24Vdc operating voltage coil. Reference: 281MVSC4604E12Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

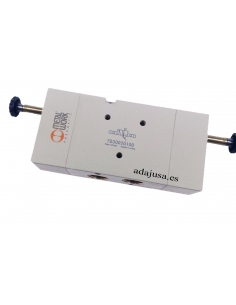

Solenoid valve 1/2 3 bistable vias 110Vac 5VA - Metal Work - adajusa.es

Solenoid valve 1/2 3 bistable vias 110Vac 5VA - Metal Work - adajusa.es 2

Pack

Solenoid valves 1/2

Solenoid valve 1/2 3-way bistable 110Vac 5VA - Metal Work

€208.34 (€169.38 tax excl.)

1/2 3-way closed assisted bistable (NC) pneumatic solenoid valve for industrial and general use applications. Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 5VA, for cores of 8mm. 22mm connectorRepresentative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

ATEX coil for solenoid valve 24Vdc size 30 Aignep: ADAJUSA : price

Accessories for solenoid valves

Coil solenoid valve 24Vdc 3W Size 30mm diameter 9 ATEX - Aignep

€92.55 (€75.24 tax excl.)

ATEX coil for solenoid valve size 30mm, voltage 24Vdc, for Ø9mm cores. Coil consumption 3W. Valid for solenoid valves with 9mm actuator core.Reference: SOLX2024C1000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.For more information, download the attached datasheet.

Electrovalvula 1/2 5 via bistable differential 24Vac 5VA - Metal Work - ADAJUSA

Electrovalvula 1/2 5 via bistable differential 24Vac 5VA - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/2

Solenoid valve 1/2 5 ways bistable differential 24Vdc 5VA - Metal Work

€232.22 (€188.80 tax excl.)

Solenoid valve 1/2 5 ways differential bistable without coil, for industrial applications and general use. With 24Vdc connectors and coilsRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

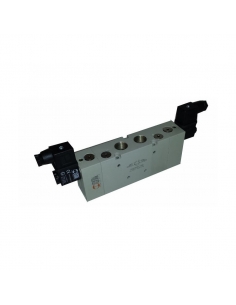

solenoid valve 1/2 5 way 3 positions assisted closed centers 24Vac 5VA - Metal Work - ADAJUSA
