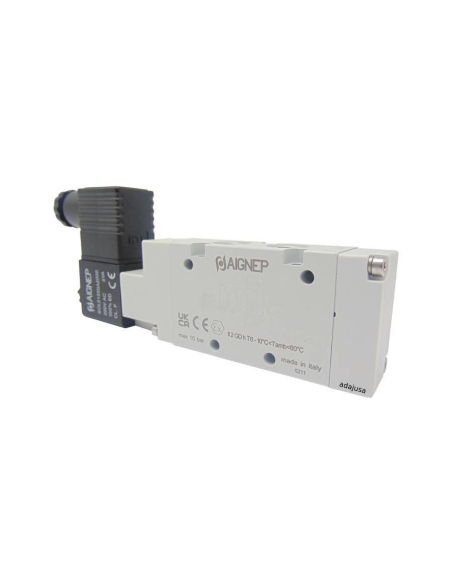

Solenoid valve 1/2 5 way monostable 12Vdc 3W - Aignep

Name: Solenoid valve 1/2 5 way monostable 12Vdc 3W - Aignep
Brand: Aignep
SKU: 01VS050005-24Vcc
Price: 114.5628 EUR
Availability: InStock

€114.56 Tax included

€94.68 tax excl.

Complete 1/2 5 way monostable solenoid valve, with 12Vdc coil and 3W power consumption, connector size 22mm, with G1/2" threads, anodized aluminum body, NBR seals.

Reference: 01VS050005-12Vdc

Logotipo Aignep
Logotipos normativas Aignep Adajusa (1)
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.37

Coil solenoid valve 24Vdc 3W Coil Size 22mm diameter 9 - Aignep

€4.16

Solenoid valve 1/2 5/2 single solenoid - Aignep

€109.03

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve 1/2 5 ways monostable 01V series. Body made of anodized and painted aluminum, nickel-plated aluminum slide and NBR seals. European manufacture. 12Vdc 3W coil and connector.

The supply includes:

1/2" 5 way pneumatic solenoid valves
Coil 12Vdc 3W
Connector 22mm

Technical characteristics:

Manufacturer: Aignep
Part number: 01VS050005-12Vdc
Type of threads: G 1/2"
Monostable bar: 2 to 10
Operating temperature °C: -10 ÷ +60
Flow rate at 6 bar ΔP 1 bar Nl/min: 5000 Nl/mi
Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10
Class of isolation: F 155
Fluid: Filtered air without lubrication
Number of ways: 5
Operation: Monostable
Seal material: NBR
Rated voltage: 12Vdc
Voltage tolerance: ±10%
Nominal power: 3W

Dimensiones electrovalvulas 1_8 5 vias monoestables Aignep Adajusa

Imagen construtiva electrovalvulas 3 vias Aignep Adajusa

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab

Aignep valves catalog

Aignep series 01 valves and solenoid valves catalog

Download (8.44MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Solenoid valve 1/4 3 vias monostable 230Vac 3.5VA - Metal Work

Metal Work

PK-E143MO230

€70.42 (€58.20 tax excl.)

1/4" 3-way single-stable, closed (NC) pneumatic solenoid valve for industrial and general use applications. Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of 8mm. Connector 22 mm Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Solenoid valve 1/4 5/2 monostable BASIC - Metal Work - ADAJUSA

Solenoid valves 1/4

Solenoid valve 1/4 5/2 monostable BASIC - Metal Work

Metal Work

7091021100

€58.03 (€47.96 tax excl.)

Solenoid valve 1/4 5 way monostable (coils not included)Part number: 7091021100Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 1/4 5/2 bistable BASIC - Metal Work - ADAJUSA

Solenoid valves 1/4

Solenoid valve 1/4 5/2 bistable BASIC - Metal Work

Metal Work

7091021200

€76.98 (€63.62 tax excl.)

Solenoid valve 1/4 5 way bistable (coils not included)Part number: 7091021200Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Accessories for solenoid valves

Solenoid valve coil 24Vac 5VA T22 diameter 8 - Metal Work

Metal Work

W0215000011

€8.36 (€6.91 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vca., with a consumption of 3.5VA, for cores of Ø8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core.Reference: W0215000011 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 1/2 5-way monostable 24Vdc - Mindman S.460 - ADAJUSA

Solenoid valve 1/2 5-way monostable 24Vdc - Mindman S.460 - ADAJUSA 2

Delivery in 3 days

Solenoid valves 1/2

Solenoid valve 1/2 5-way monostable 24Vdc - Mindman S.460

Mindman

MVSC4604E12

€50.90 (€42.07 tax excl.)

1/2" 5-way monostable normally closed (NC) pneumaticsolenoid valve, with 24Vdc operating voltage coil. Reference: 281MVSC4604E12Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Accessories for solenoid valves

Coil solenoid valve 230Vac 5VA Size 22mm diameter 9 ATEX - Aignep

Aignep

SOLX1220A2000

€8.11 (€6.70 tax excl.)

ATEX coil for solenoid valve size 22mm, voltage 230Vac, for Ø9mm cores. Coil consumption 5VA. Valid for solenoid valves with 9mm actuator core.Reference: SOLX1220A2000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

Solenoid valves 1/2

Solenoid valve 1/2 5 ways bistable - Metal Work

Metal Work

7030021200

€200.36 (€165.59 tax excl.)

Solenoid valve 1/2 5 ways bistable without coil, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.Reference: 7030021200Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

electrovalve 1/2 3-way monostable without coil - Metal Work - ADAJUSA

electrovalve 1/2 3-way monostable without coil - Metal Work - ADAJUSA 2

Solenoid valves 1/2

Solenoid valve 1/2 3 monostable roads without coil - Metal Work

Metal Work

7030020200

€143.52 (€118.61 tax excl.)

Pneumatic solenoid valve 1/2 3-way monostable without coil, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm. Reference: 7030020200 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

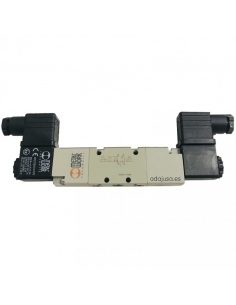

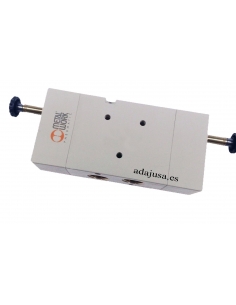

Electrovalvula 1/2 5 via bistable 24Vdc 5W - Metal Work - ADAJUSA

Electrovalvula 1/2 5 via bistable 24Vdc 5W - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/2

Solenoid valve 1/2 5 ways bistable 24Vdc 5W - Metal Work

Metal Work

PK-E125BI24C

€219.82 (€181.67 tax excl.)

Solenoid valve 1/2 5 ways bistable without coil, for industrial applications and general use. With 24Vdc connectors and coilsRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

View

Free shipping!

Solenoid valves 1/2

Solenoid valve 1/2 5/3 monostable - open centers Aignep

Aignep

01VS07OC05

€147.72 (€122.08 tax excl.)

Solenoid valve 1/2 5 ways 3 positions monostable, open centers, with G1/2" threads, anodized aluminum body, NBR seals.Reference: 01VS07OC05 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

Electrovalvula 1/2 5 vias 3 positions assisted closed centres 110Vac 5VA - Metal Work - adajusa

Electrovalvula 1/2 5 vias 3 positions assisted closed centres 110Vac 5VA - Metal Work - adajusa 2

Pack

Solenoid valves 1/2

Solenoid valve 1/2 5 way 3 positions assisted c. e. 230Vac 5VA - Metal Work

Metal Work

PK-1253AE230

€232.96 (€192.53 tax excl.)

Solenoid valve 1/2 5 way 3 positions assisted monostable exhaust centers. For industrial applications and general use. Solenoid valve coil 230Vac 5VA T22 diameter 8 - Connector 22 mm. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

View

Free shipping!

Solenoid valves 1/2

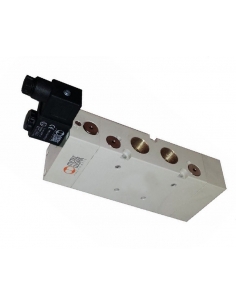

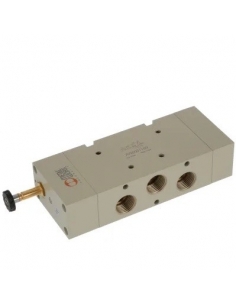

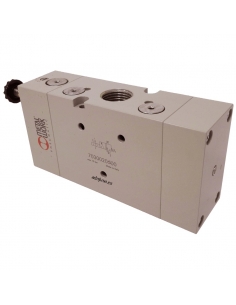

Solenoid valve 1/2 5 ways monostable assisted - Metal Work

Metal Work

7030021500

€165.37 (€136.67 tax excl.)

Solenoid valve 1/2 5 ways monostable assisted, closed (NC), for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.Reference: 7030021500Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 1/2 5 way 3 positions exhaust 230Vac Mindman - ADAJUSA

Delivery in 3 days

Solenoid valves 1/2

Solenoid valve 1/2 5 way 3 positions exhaust centers 24Vdc - Mindman S.460

Mindman

MVSC4604E2R2

€97.57 (€80.64 tax excl.)

Pneumatic solenoid valve of 1/2" 5 ways 3 positions, exhaust centers (open centers), metal body, with coils at 24Vdc. For double effect cylinder control. Reference: 281MVSC4604E2R2 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Size 30 solenoid valve connector with VDR 220V and LED

Accessories for solenoid valves

Solenoid valve connector size 30 with VDR 220V and led

Metal Work

W0970520039

€6.92 (€5.72 tax excl.)

Connector for solenoid valve with VDR 30 V protector with Led. For 22mm coils. Reference: W0970520033 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pack

Solenoid valves 1/2

Solenoid valve 1/2 5/2 bistable 12Vdc 3W - Aignep

Aignep

01VS150005-12Vcc

€149.56 (€123.60 tax excl.)

Solenoid valve complete 1/2 5 way bistable , with 12Vdc coils and 3W consumption, 22mm. size connectors, with G1/2" threads, anodized aluminum body, NBR gaskets. Reference: 01VS150005-12Vdc Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

Multiple base for 1/2 5-way valves Mindman 460 series- ADAJUSA

Multiple base for 1/2 5-way valves Mindman 460 series- ADAJUSA 2

Solenoid valves 1/2

Multiple base plate for 1/2 5-way solenoid valves S.460 - Mindman

Mindman

MVSC4605Bxx

€24.66 (€20.38 tax excl.)

Multiple base plate for 5-way 1/2" size solenoid valves, MVSC460 seriesReference: 281MVSC4605BxxRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

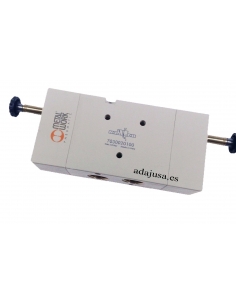

Solenoid valve 1/2 3 bistable roads assisted without coil - Metal Work - adajusa.es

Solenoid valves 1/2

Electrovalve 1/2 3-way bistable assisted without coil - Metal Work

Metal Work

7030020300

€177.74 (€146.89 tax excl.)

Solenoid valve 1/2 3 ways bistable assisted, closed (NC), for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm. Reference: 7030020300 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

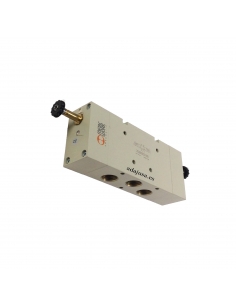

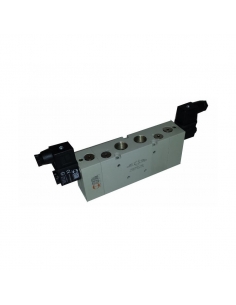

solenoid valve 1/2 5 ways 3 positions centers pressure 24Vdc 5W - Metal Work - ADAJUSA
