Solenoid valve 3/8 5/3 monostable open centres - Aignep

Name: Solenoid valve 3/8 5/3 monostable open centres - Aignep
Brand: Aignep
SKU: 01VS07OC04
Price: 86.1246 EUR
Availability: PreOrder

€86.12 Tax included

€70.02 tax excl.

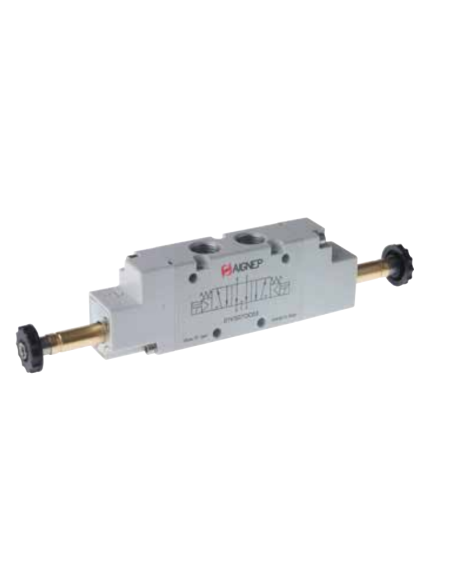

3/8 5 way 3-position, monostable Solenoid valve , open centres, with G3/8" threads, anodised aluminium body, NBR seals.

Reference: 01VS07OC04

Aignep logo
Aignep Adajusa regulatory logos (1)
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

3/8" pneumatic Solenoid valve , 5- way , 3-position, open centre, monostable , 01V series. Body made of anodised and painted aluminium, nickel-plated aluminium slide and NBR seals. Made in Europe. Coil and connector not included in the supply.

Technical characteristics:

Manufacturer: Aignep
Reference: 01VS07OC04
Thread type: G 3/8"
Monostable bar : 2 to 10
Operating temperature °C: -10 ÷ +60
Flow rate at 6 bar ΔP 1 bar Nl/min: 2000 Nl/mi
Voltage tolerances: ±10%
Insulation class: F 155
Fluid: Filtered air without lubrication
Number of way : 5
Positions: 3 - wide centres
Operation: monostable
Gasket material: NBR

Construction image of 3-way solenoid valves Aignep Adajusa

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.
