Solenoid valve 3/8 5/3 assisted exhaust centers - Metal Work

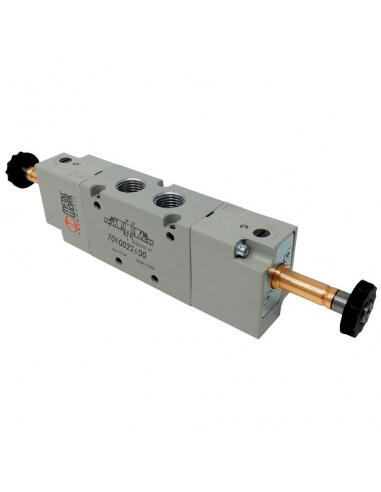

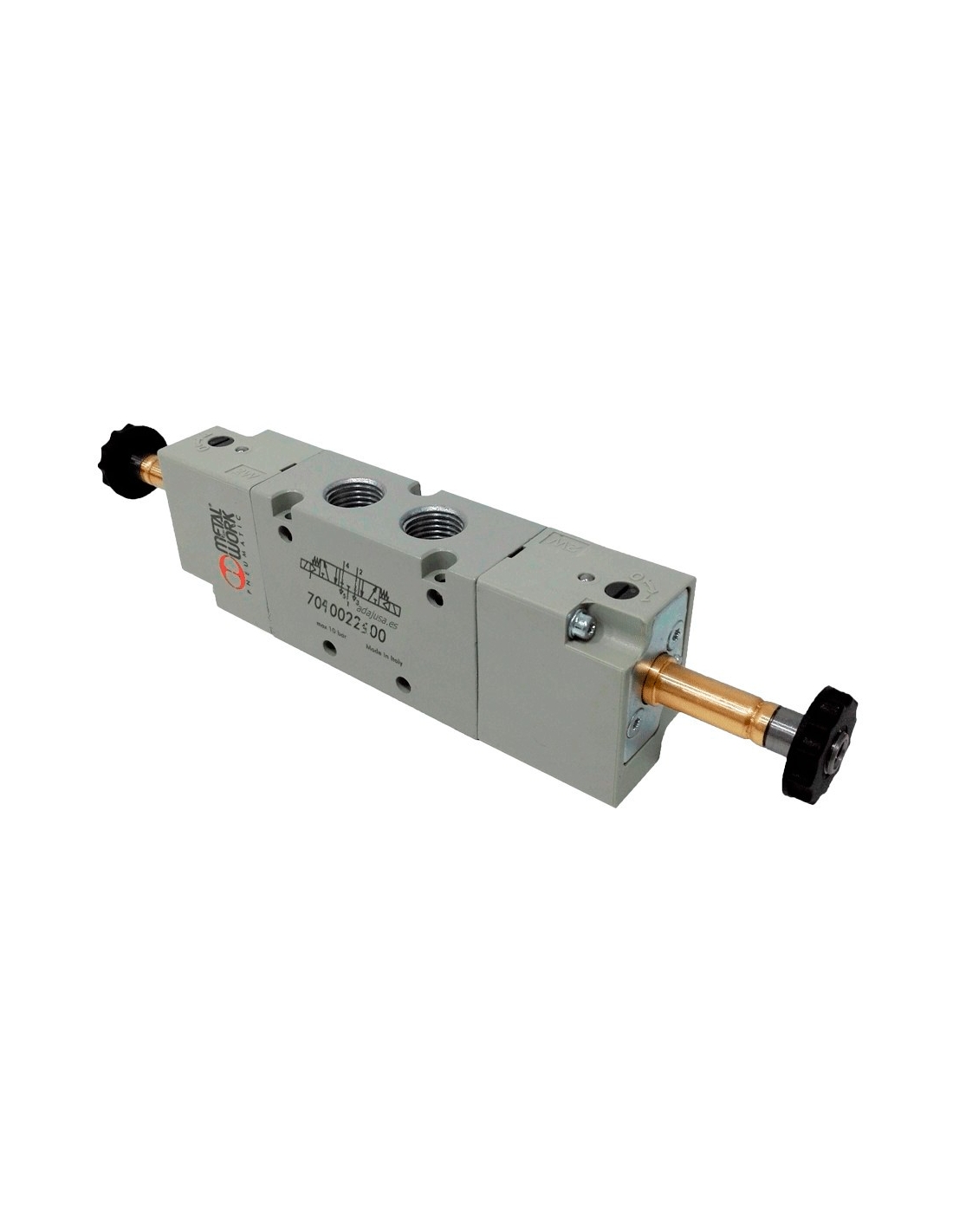

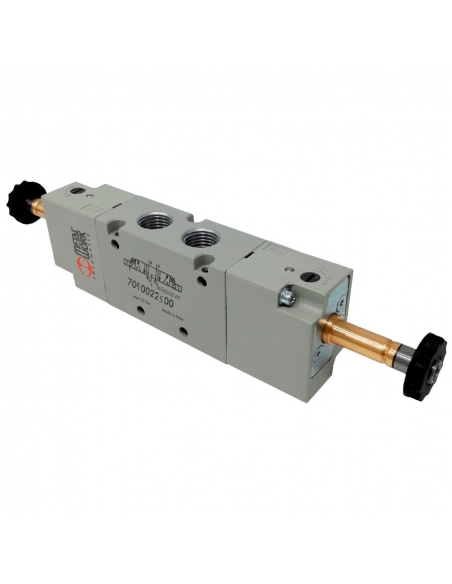

Solenoid valves of 3/8" of 5 ways and 3 positions, open centers in exhaust, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect.

The solenoid valve has 3 positions with 2 coils, if a coil is fed the cylinder advances, if both coils are left without tension, the cylinder will be without pneumatic pressure by any of its inputs, with which the cylinder stops exerting any force and if the other coil is fed, the cylinder is collected.

Coils and connectors not included

Characteristics:

• Provider: Metal Work
• Reference: 7040022500 - SOV C6 SES OC
• Operating pressure: 2.5 ÷10 bar
• Minimum assist pressure: 2.5 bar
• Operating temperature: -10 ÷ +60
• Nominal diameter: 13.3 mm
• Conductance C Nl/min · bar: 505.52
• B bar/bar critical ratio: 0.32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
• Flow rate at 6 bar ΔP 1 bar Nl/min:2150
• Monostable TRA/TRR at 6 bar ms: 21/72
• Bistable TRA/TRR at 6 bar ms: 18/18
• Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
• Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
