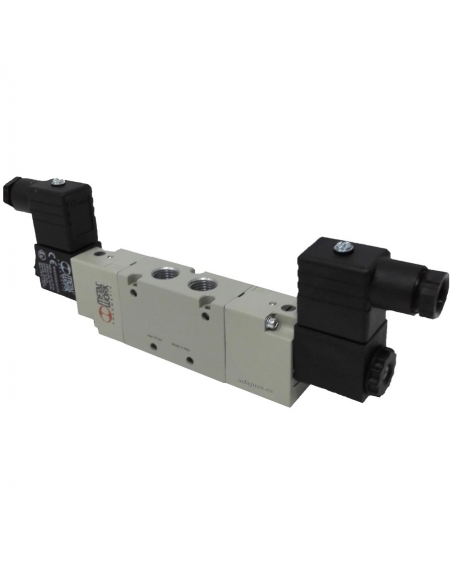

Solenoid valve 3/8 5/3 pressure centers 24 Vdc - Metal Work

Solenoid valves of 3/8" of 5 ways and 3 positions, pressure centers, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect.

The solenoid valve has 3 positions with 2 coils.

The supply includes:

• Solenoid valve 3/8" 5/3 pressure centers
• 2 Coils 24 Vdc 2 W
• 2 T22 connectors

Characteristics:

• Provider: Metal Work
• Solenoid valve reference: 7040022300 - SOV C6 SOS PC
• Operating pressure: 2.5 ÷10 bar
• Minimum assist pressure: 2.5 bar
• Operating temperature: -10 ÷ +60
• Nominal diameter: 13.3 mm
• Conductance C Nl/min · bar: 505.52
• B bar/bar critical ratio: 0.32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
• Flow rate at 6 bar ΔP 1 bar Nl/min:2150
• Monostable TRA/TRR at 6 bar ms: 21/72
• Bistable TRA/TRR at 6 bar ms: 18/18
• Coil voltage: 24 Vdc
• Power: 2 W
• Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.
