Solenoid valve 3/8 5/3 assisted pressure centers - Metal Work

Name: Solenoid valve 3/8 5/3 assisted pressure centers - Metal Work
Brand: Metal Work
SKU: 7040022600
Price: 137.2311 EUR
Availability: PreOrder

€137.23 Tax included

€111.57 tax excl.

Solenoid valves of 1/8" of 5 ways and 3 positions assisted,centers in pressure, metal body, for pneumatic applications of industrial or general use.
Reference: 7040022600

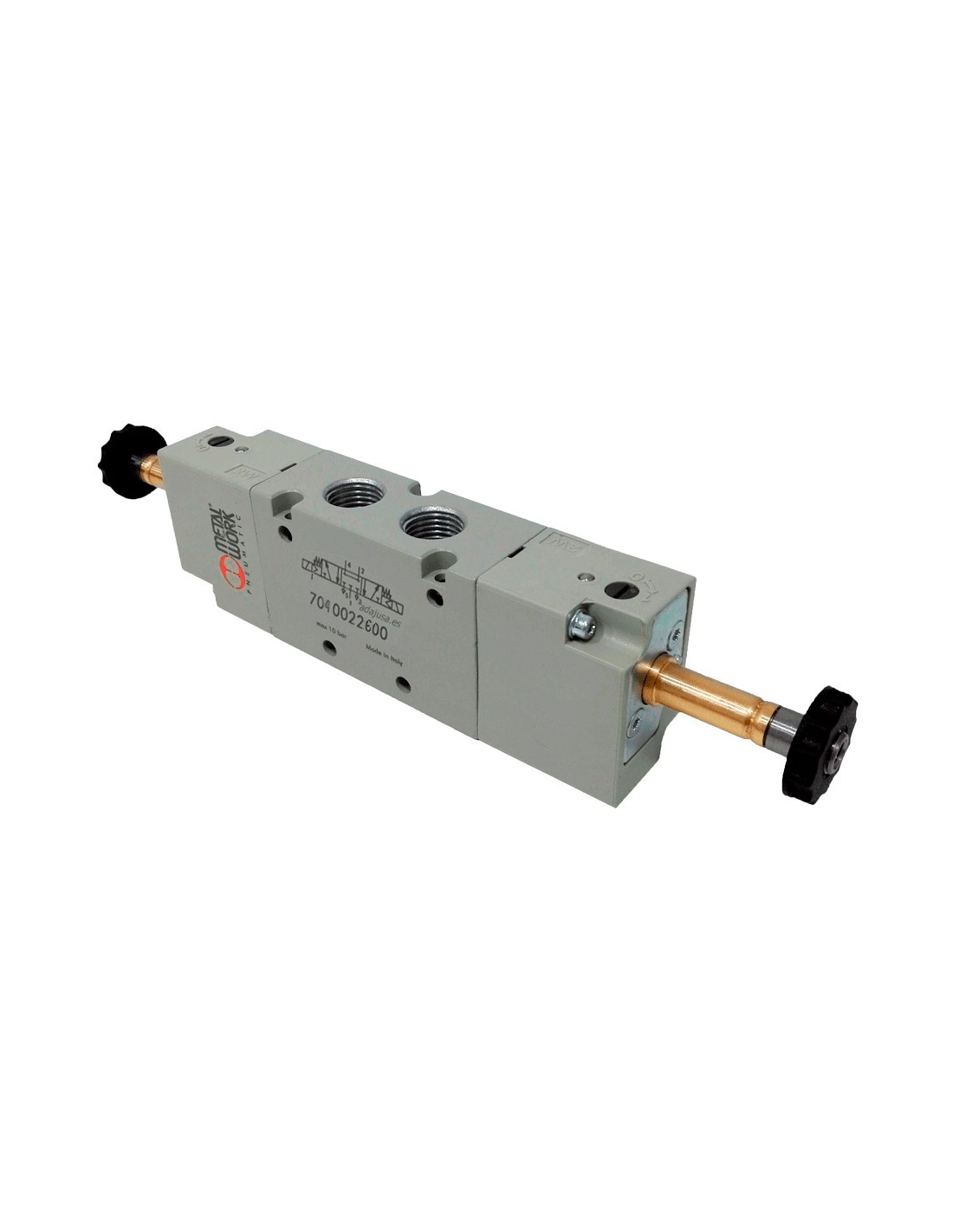

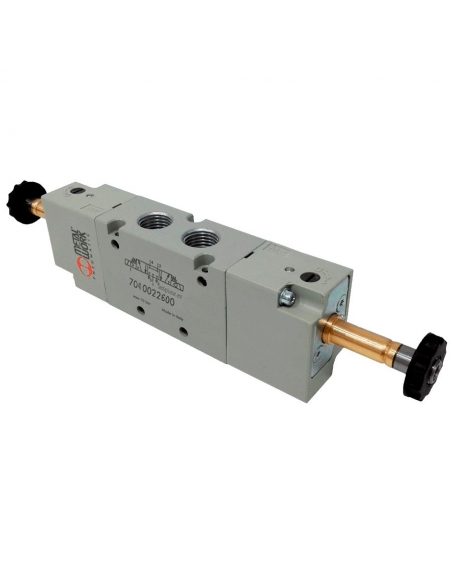

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Solenoid valves of 3/8" of 5 ways and 3 assisted positions, pressure centers, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect.

The solenoid valve has 3 positions with 2 coils.

Coils and connectors not included

Specifications:

Solenoid valve manufacturer: Metal Work.
Solenoid valve reference: 7010022600 - SOV C6 SES PC
Solenoid valve working pressure: 2.5 to 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10ºC to 60ºC.
Nominal diameter: 5mm.
Flow at 6 bars Δp 1 bar: 550 Nl/min.
Manual drive: Yes.

Dimensiones electroválvula 1/8 5/3 Metal Work
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Valve tabs

70 series valve data sheet Metal Work

Download (1.31MB)
