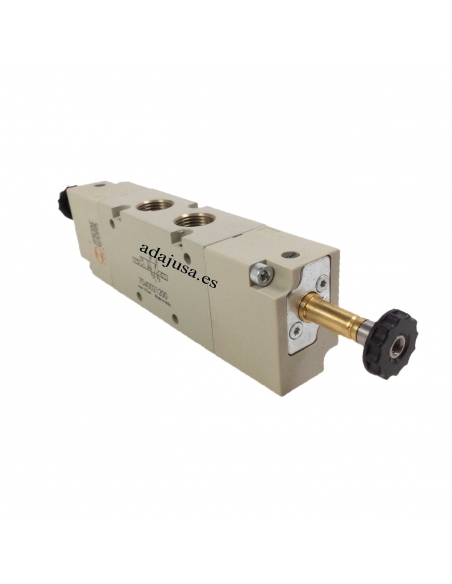

solenoid valve 3/8 5 ways bistable without coil - Metal Work - ADAJUSA

Solenoid valve coil 24Vdc 2,5 W T22 Ø8 - Metal Work - ADAJUSA

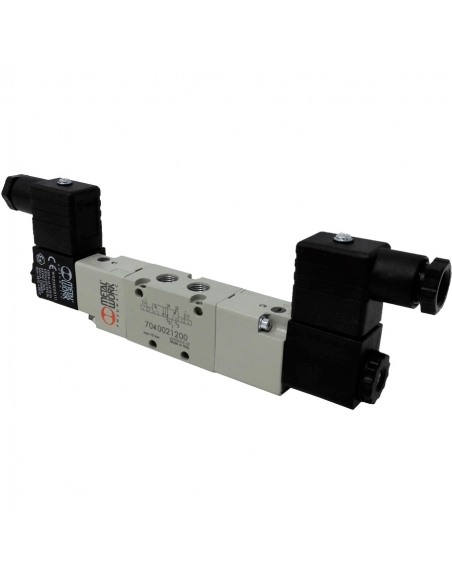

solenoid valve 3/8 5-way bistable difrencial with coils - Metal Work - ADAJUSA

Solenoid valve 3/8 5 ways differential bistable 24Vdc - Metal Work

Name: Solenoid valve 3/8 5 ways differential bistable 24Vdc - Metal Work
Brand: Metal Work
SKU: PK-385DB24C
Price: 134.14 EUR
Availability: BackOrder

€134.14 Tax included

109.06 tax excl.

PK-385DB24C

3/8" 5-way bianneumatic solenoid valve, for industrial applications and general use. With 24Vcc connectors and coils esquema neumático electroválvula nemática 5 vías

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.45

Coil for solenoid valve 24Vcc Metal Work W0215000101 Price adajusa

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

€8.92

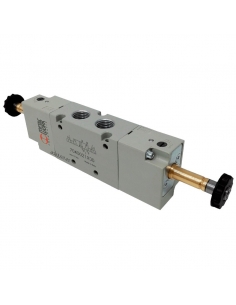

Solenoid valve 3/8 5 ways bistable differential - Metal Work - ADAJUSA

Solenoid valve 3/8 5 ways differential bistable without coil - Metal Work

€113.41

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Pneumatic solenoid valve of 3/8 5 ways 2 bistable differential positions. For general and industrial applications.

The supply includes:

Solenoid valve 3/8 5/2 bistable differential
2 Coils 24Vdc 2 W
2 T22 connectors

Characteristics:

Provider: Metal Work
Solenoid valve reference: 7040021300 - SOV C5 SOD OO
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Coil voltage: 24 Vdc
Power: 2 W
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Luminous valve connector size 22 with VDR 24V

Metal Work

W0970510015

€7.38 (€6.00 tax excl.)

Connector for solenoid valve with VDR 24 V protector and LED indication. For 22mm coils. Reference: W0970510015Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Solenoid valves 3/8

Solenoid valve 3/8 5 ways differential bistable without coil - Metal Work

Metal Work

7040021300

€113.41 (€92.20 tax excl.)

3/8" 5-way bianneumatic solenoid valve, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm. Reference: 7040021300 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5 ways assisted bistable - Metal Work - ADAJUSA

Solenoid valves 3/8

Solenoid valve 3/8 5 ways assisted bistable without coil - Metal Work

Metal Work

7040021600

€113.41 (€92.20 tax excl.)

3/8" 5-way bile valve for industrial and general applications. Supports coils of size 22mm with core of Ø8mm. Reference: 7040021600 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted closed centers - Metal Work

Metal Work

7040022400

€139.95 (€113.78 tax excl.)

Solenoid valves of 3/8" of 5 ways and 3 assisted positions, closed centers, metal body, for pneumatic applications of industrial or general use. Reference: 7040022400 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

3/8" 3-way monostable 3-way pneumatic solenoid valve normally open (NO), 230Vac Mindman - ADAJUSA

Delivery in 3 days

Solenoid valves 3/8

Solenoid valve 3/8 3-way monostable NO 230Vca - Mindman S.300

Mindman

MVSC3003E1NO1

€47.23 (€38.40 tax excl.)

Pneumatic solenoid valve of 3/8" 3 ways monostable normally open (NO), operating voltage of 230Vca. Reference: 281MVSC3003E1NO1 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 3-way monostable NC with coil - Metal Work

Solenoid valve 3/8 3-way monostable NC with coil - Metal Work 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 3-way monostable NC 24 Vac - Metal Work

Metal Work

PK-383NC24A

€97.71 (€79.44 tax excl.)

3/8" 5-way monestable, closed (NC) pneumatic solenoid valve for industrial and general use applications. With connector and coil of 24 Vac Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Accessories for solenoid valves

Connector solenoid valve size 22 ATEX - Aignep

Aignep

CONX100001

€5.19 (€4.22 tax excl.)

Electrical connector for solenoid valve size 22mm, ATEX standard, black color. Reference: CONX100001 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

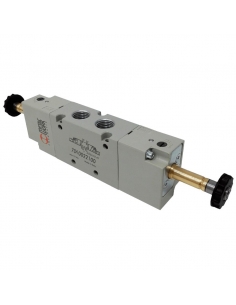

Solenoid valve 3/8 5/3 pressure centers 24 Vdc - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 pressure centers 24 Vdc - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted pressure centers 24 Vdc - Metal Work

Metal Work

PK-3853ACP24C

€131.66 (€107.04 tax excl.)

Solenoid valves of 3/8" of 5 ways and 3 assisted positions, pressure centers, metal body, with connector and coil of 24Vdc. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Luminous valve connector size 22 with VDR 220V - ADAJUSA

Accessories for solenoid valves

Solenoid valve connector luminous size 22 with VDR 220V

Metal Work

W0970510017

€7.38 (€6.00 tax excl.)

Connector for solenoid valve with VDR 220 V protector and LED indication. For 22mm coils. Reference: W0970510017Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Solenoid valve 3/8 3 ways bistable with coil - Metal Work - ADAJUSA

Solenoid valve 3/8 3 ways bistable with coil - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 3 ways bistable 110 Vac- Metal Work

Metal Work

PK-383B110

€120.38 (€97.87 tax excl.)

3/8" 3-way bistable pneumatic solenoid valve, for industrial and general use applications. With 110 Vac connectors and coils Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

3/8" 3-way monostable 3-way shut-down (NC) pneumatic solenoid valve, 24Vdc Mindman - ADAJUSA

Solenoid valves 3/8

Solenoid valve 3/8 3-way monostable NC 24Vdc - Mindman S.300

Mindman

MVSC3003E1NC2

€47.23 (€38.40 tax excl.)

3/8" 3-way monostable 3-way suspended solenoid valve normally closed (NC),operating voltage of 24Vdc. Reference: 281MVSC3003E1NC2 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

electrovalve 3/8 5-way monostable 230Vac 3,5VA Metal Work - ADAJUSA

electrovalve 3/8 5-way monostable 230Vac 3,5VA Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5-way monostable 230Vac 3.5VA Metal Work

Metal Work

PK-385M230

€112.27 (€91.28 tax excl.)

3/8" 5-way pneumatic electrovalve, closed (NC), for industrial and general use applications. Coil for electrovalve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of Ø8mm. 22mm connector Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

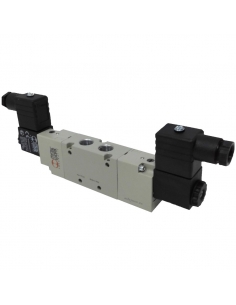

Solenoid valve 3/8 5/3 pressure centers 110 Vac - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 pressure centers 110 Vac - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 pressure centers 110 Vac - Metal Work

Metal Work

PK-3853CP110

€160.69 (€130.64 tax excl.)

3/8" 5-way, 3-position solenoid valves, pressure centers, metal body, with 110 Vac connectors and coils. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Multiple base for 3/8 5-way valves Mindman 300 series - ADAJUSA

Multiple base for 3/8 5-way valves Mindman 300 series - ADAJUSA 2

Solenoid valves 3/8

Multiple base plate for 3/8 5-way valves S.300 - Mindman

Mindman

MVSC3005Bxx

€18.01 (€14.64 tax excl.)

Multiple base plate for 5-way 3/8" size valves and solenoid valves, MVSC300 seriesReference: 281MVSC3005BxxRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/3 assisted closed centers 110 Vac - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 assisted closed centers 110 Vac - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted closed centers 110 Vac - Metal Work

Metal Work

PK-3853ACC110

€160.69 (€130.64 tax excl.)

Solenoid valves of 3/8" of 5 ways and 3 assisted positions, closed centers, metal body, with connectors and coil of 110 Vac. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

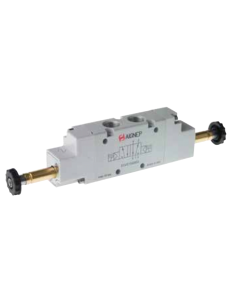

Solenoid valve 3/8 5/2 bistable series 01V | Aignep | ADAJUSA | price
