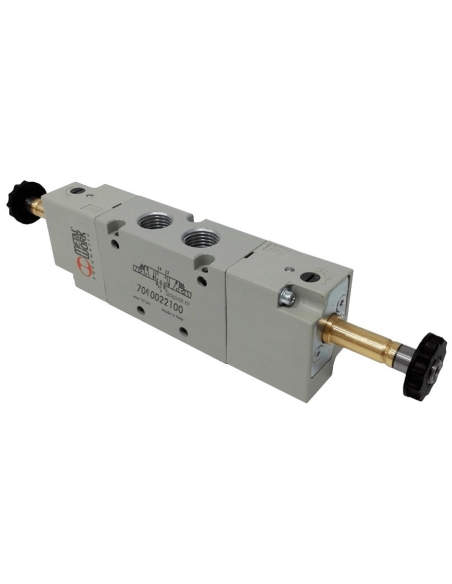

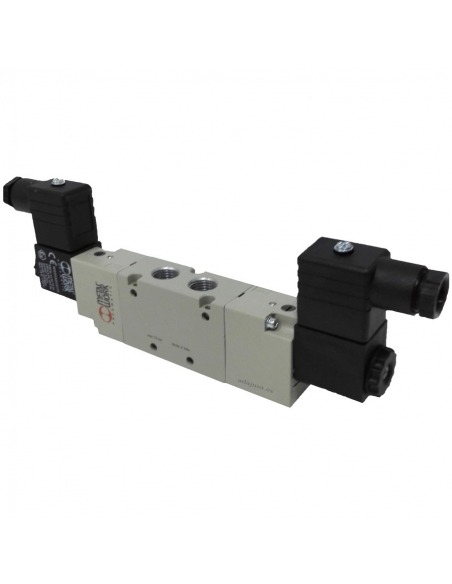

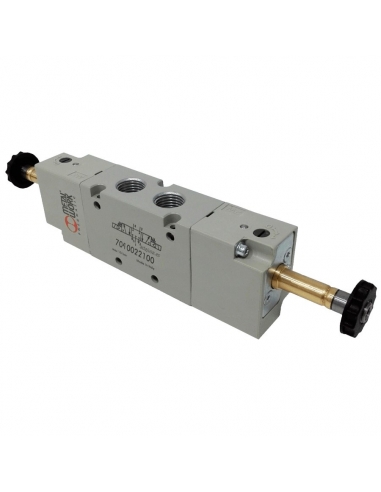

Solenoid valve 3/8 5/3 assisted pressure centers 110 Vac - Metal Work

Solenoid valves of 3/8" of 5 ways and 3 positions assisted, pressure centers, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect.

By having an independent pressure inlet for the pilot (assisted) it can be used from 0 bars of pressure at the inlet.

The solenoid valve has 3 positions with 2 coils.

The supply includes:

• Solenoid valve 3/8" 5/3 assisted pressure centers

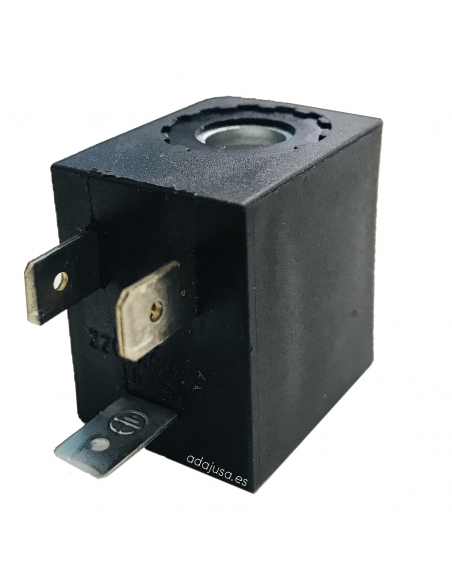

• 2 Coils 110 Vac 3.5 VA
• 2 T22 connectors

Characteristics:

• Provider: Metal Work
• Solenoid valve reference: 7040022600 - SOV C6 SES PC
• Operating pressure: 2.5 ÷10 bar
• Minimum assist pressure: 2.5 bar
• Operating temperature: -10 ÷ +60
• Nominal diameter: 13.3 mm
• Conductance C Nl/min · bar: 505.52
• B bar/bar critical ratio: 0.32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
• Flow rate at 6 bar ΔP 1 bar Nl/min:2150
• Monostable TRA/TRR at 6 bar ms: 21/72
• Bistable TRA/TRR at 6 bar ms: 18/18
• Coil voltage: 110 Vac
• Power: 3.5 VA
• Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.
