Pack

Solenoid valve 3/8 5 monostable roads without coil - Metal Work - adajusa.es

Coil solenoid valve 24Vcc 2.5 W T22 '8 - Metal Work - adajusa.es

electrovalve 3/8 5-way monostable 24Vac 3,5W Metal Work - ADAJUSA

Solenoid valve 3/8 5-way monostable 24Vac 3.5W Metal Work

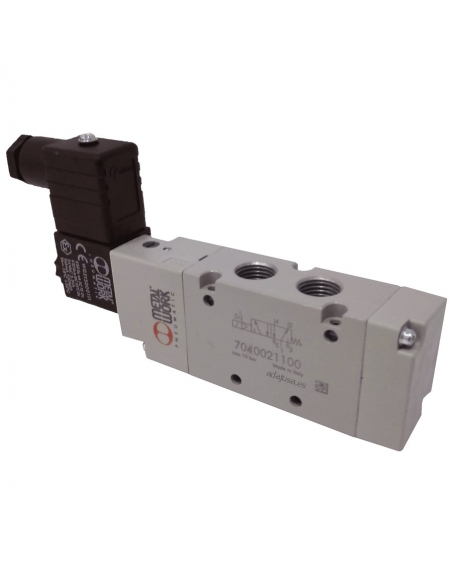

Name: Solenoid valve 3/8 5-way monostable 24Vac 3.5W Metal Work
Brand: Metal Work
SKU: PK-385M24A
Price: 112.27 EUR
Availability: BackOrder

€112.27 Tax included

91.28 tax excl.

PK-385M24A

3/8" 5-way pneumatic electrovalve, closed (NC), for industrial and general use applications.
Coil for electrovalve size 22mm, voltage 24Vac., with a consumption of 3.5VA, for cores of Ø8mm. 22mm connector

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.45

Coil for solenoid valve 24VAC Metal Work W0215000111 Price adajusa

Solenoid valve coil 24Vac 3.5 VA T22 diameter 8 - Metal Work

€8.92

electrovalve 3/8 5-way monostable - Metal Work - ADAJUSA

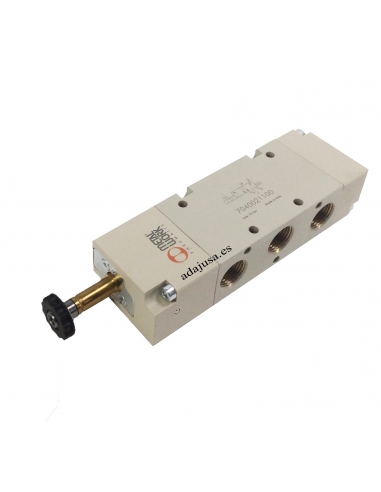

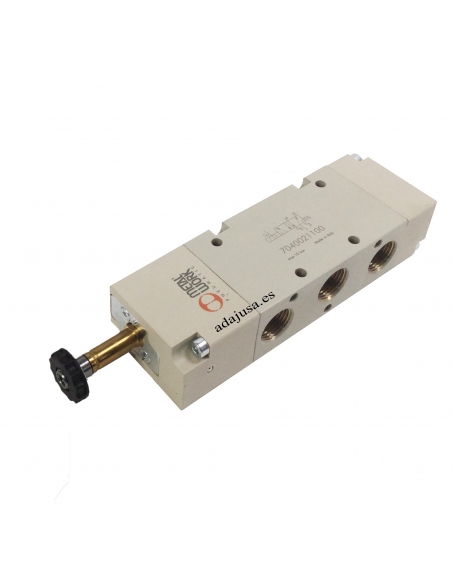

Solenoid valve 3/8 5 ways monostable without coil - Metal Work

€101.91

No queries yet, leave the first!

Privacy

Shipments

Returns

3/8 5-way pneumatic valve 2 monostable positions. For general and industrial applications. The electrovalve is normally closed (NC), that is, without tension in the coil, the inlet is not connected to the outlet, that is, there is no air pressure at the outlet, the outlet is connected to the valve exhaust. When the coil is tensioned, the electrovalve is activated, air circulation occurs between the inlet and outlet of the electrovalve.

Manufacturer: Metal Work.

Coil for electrovalve size 22mm, voltage 24Vac., with a consumption of 3.5VA, for cores of Ø8mm.

22 mm plastic connector

The supply includes:

Electrovalve 3/8 5/2 monostable
Coil 24Vac 3,5VA
22 mm connector

characteristics:

Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Voltage 24Vac
Consumption: 3.5VA
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
Critical ratio b bar/bar: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
SINGLE-SEAT TRA/TRR at 6 bar ms: 21/72
TRA/TRR bistable at 6 bar ms: 18/18
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)
