Transformer 200VA E:400V S:230V

€59.11 Tax included

48.06 tax excl.

TRI-200

Single-phase transformer for command, control and general uses. The transformer power is 200VA primary 400Vac secondary 230Vac. The degree of protection of the transformer is IP-20. It is encapsulated in resin

Reference: TRI-200

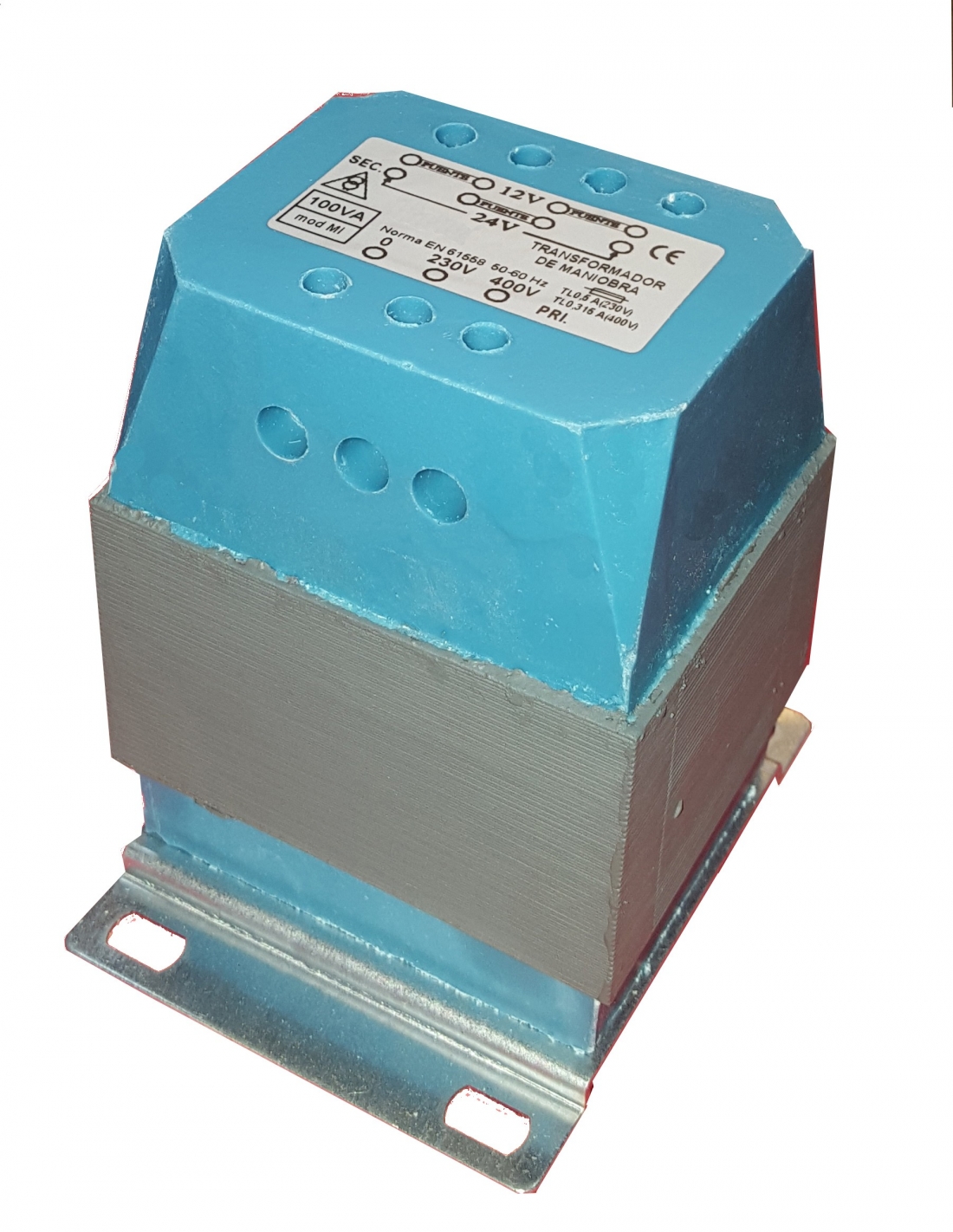

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Out of stock

No queries yet, leave the first!
Privacy
Shipments
Returns


Single-phase isolatingtransformer for command and control, encapsulated in resin. Input 400Vac and output 230Vac, power 200VA. Transformer encapsulated in resin, with degree of protection IP-20.

The main application of this type of transformers is for command and control in industrial automation, and for general applications. They are intended to supply electrical devices where galvanic isolation between circuits is required.

This type of transformers are reversible.


Technical characteristics of the transformer:

  • Reference: TRI-200
  • Transformer primary voltage: 400V
  • Transformer secondary (output) voltage: 230V
  • Transformer power: 200 VA
  • Maximum current (output) of the transformer: 0,87 A
  • Windings: Wire of copper, thermal class N 200ºC
  • Selection: jumpered voltages
  • Secondary connection: series-parallel
  • Insulation: Thermal class B 130ºC
  • Frequency: 50/60 Hz
  • Protection: IP-20
  • Transformer test voltage
    • 5 KV between windings
    • 2.5 KV between windings and ground
  • Ambient temperature: Ta= 25ºC
  • Transformer encapsulation: Self-extinguishing resin
  • Transformer mounting: by means of screws
  • Certificate: UNE-EN61558

Dimensiones transformador MI (1)

For other transformer types and models, please consult us.

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.

Material for professional use, install in compliance with the regulations in force at the place of installation.
