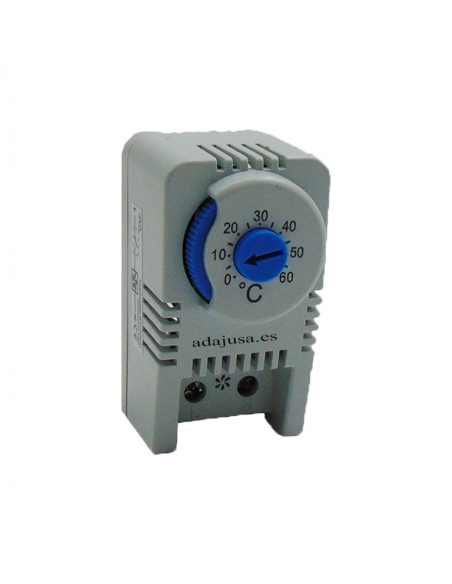

GTVT/Adajusa nc analog thermostat

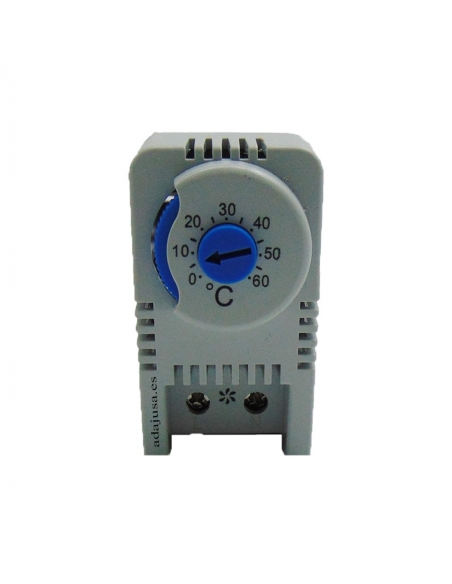

Analog Thermostat GTVT PTVP KTS011 Gaestopas Plastim price adajusa
Analog Thermostat GTVT PTVP KTS011 Gaestopas Plastim price adajusa
GTVT/Adajusa nc analog thermostat
Analog Thermostat GTVT PTVP KTS011 Gaestopas Plastim price adajusa
Analog Thermostat GTVT PTVP KTS011 Gaestopas Plastim price adajusa

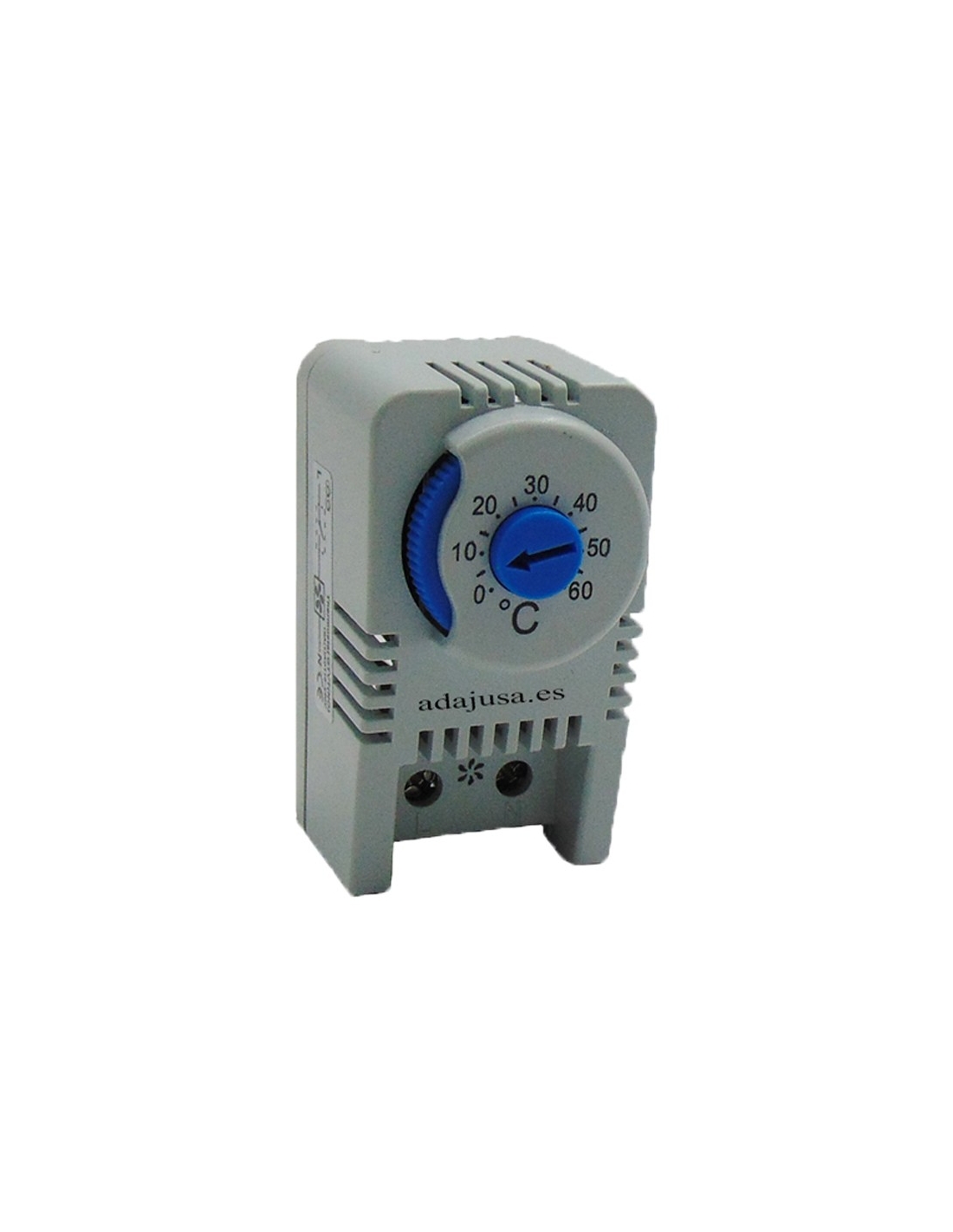

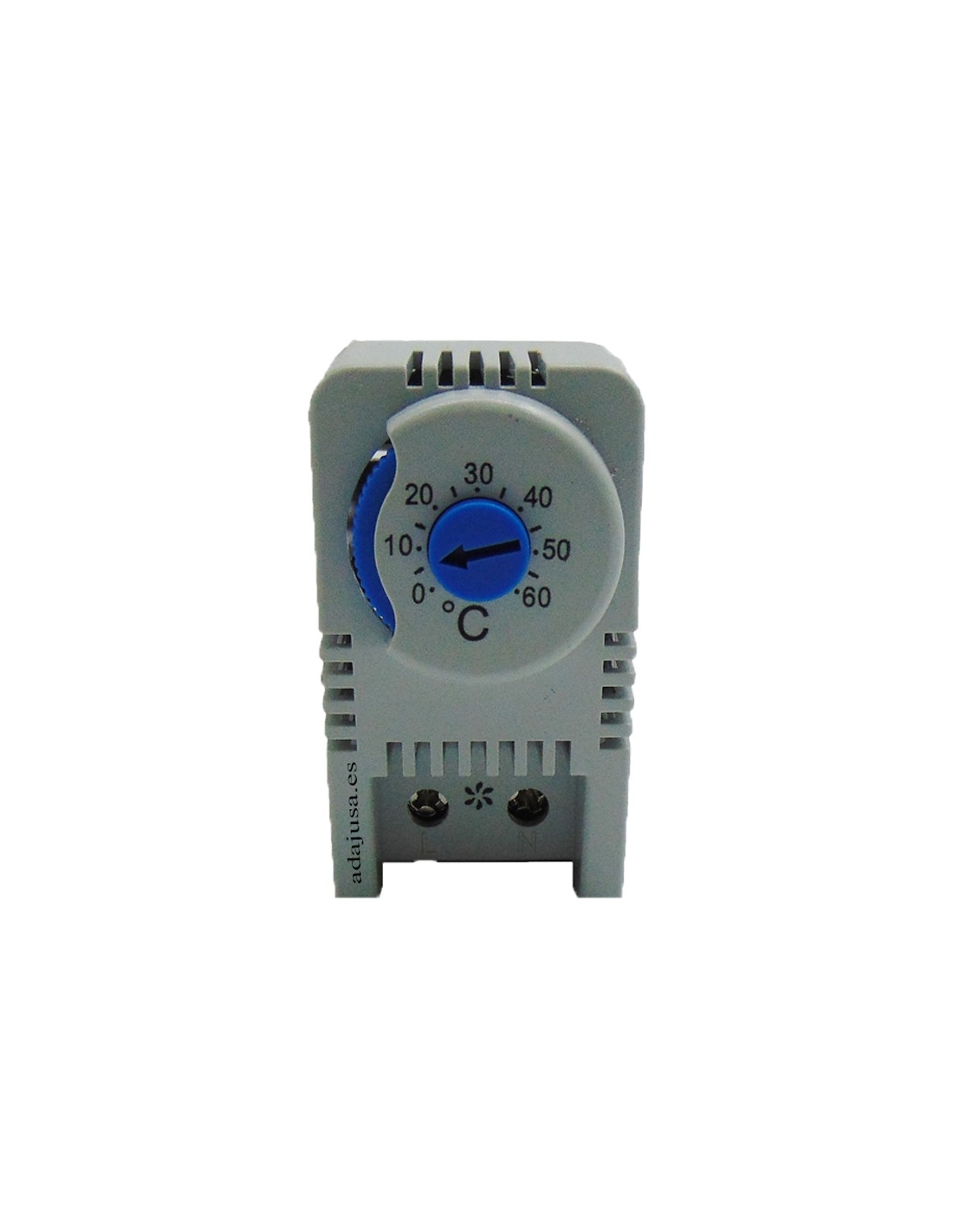

Analog thermostat open contact

€7.63 Tax included

6.2 tax excl.

GTVT

Analog thermostat with no, mounted on din-rail, with a temperature regulation between 0º and 60ºC.

Reference: GTVT

Esquema eléctrico termostato abierto


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Simple thermostat for temperature control with a no. Regulation of the analog temperature and bimetallic type collector element.

The contact will close when the temperature is exceeded. The usual use is for the control of fans, temperature exchangers or signals (alarms).

Made of plastic material according to UL94V and mounted on din-rail.


Specifications:

  • Manufacturer: Gaestopas
  • Reference: GTVT
  • Contact type: open NA (blue button)
  • Connection difference: 7K (± 4K tolerance)
  • Probe: Thermostatic bimetal
  • Contact Class: Exhaust Contact
  • Life span: >100,000 cycles
  • Maximum connection power: 250VAC, 10(2)A / 120VAC, 15(2)A / DC 30W (24VDC to 72VDC)
  • Maximum connection current: AC 16 A for 10 seconds
  • Connection: 2-pole terminal, tightening torque 0.5Nm max.: rigid cable 2.5mm2 (AWG 14), braided cable(*) 1.5mm2 (AWG 16)
  • Fixing: 35mm DIN din-rail , EN 60715
  • Housing: Plastic according to UL94 V-0, light grey
  • Dimensions: 61 x 34 x 38mm
  • Weight: about 40gr
  • Mounting position: Variable
  • Serving/storage temperature: -45 to +80°C (-49 to +176°F)
  • Humidity (s/a): Max. 90% RH (non-condensing)
  • Degree of protection: IP20

(*) When making the connection with braided cable, use tubular terminal. The contacts of the bimetallic element are subject to environmental influences, so the contact resistance may vary. This can lead to a voltage drop and/or heating of the contacts.


Connection diagram:

Example of connection:

Dimensions:



Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Buenas tardes,
Necesito saber si su producto (que les dejo en el enlace de abajo) viene con la sonda correspondiente para conectar a la fuente de calor.

https://adajusa.es/es/reles-de-control-y-proteccion-termostatos-sondas-de-temperatura/3465-termostato-analogico-contacto-abierto-8435532834656.html
Answer
Buenas tardes.

El producto al que usted hace referencia


No lleva sonda, el captadoresta incorporado dentro del mismo artículo.

No obstante, verifique que cumpla con sus especificaciones.

Saludos

Adajusa
Ignacio on 10/09/2023 15:35:58
