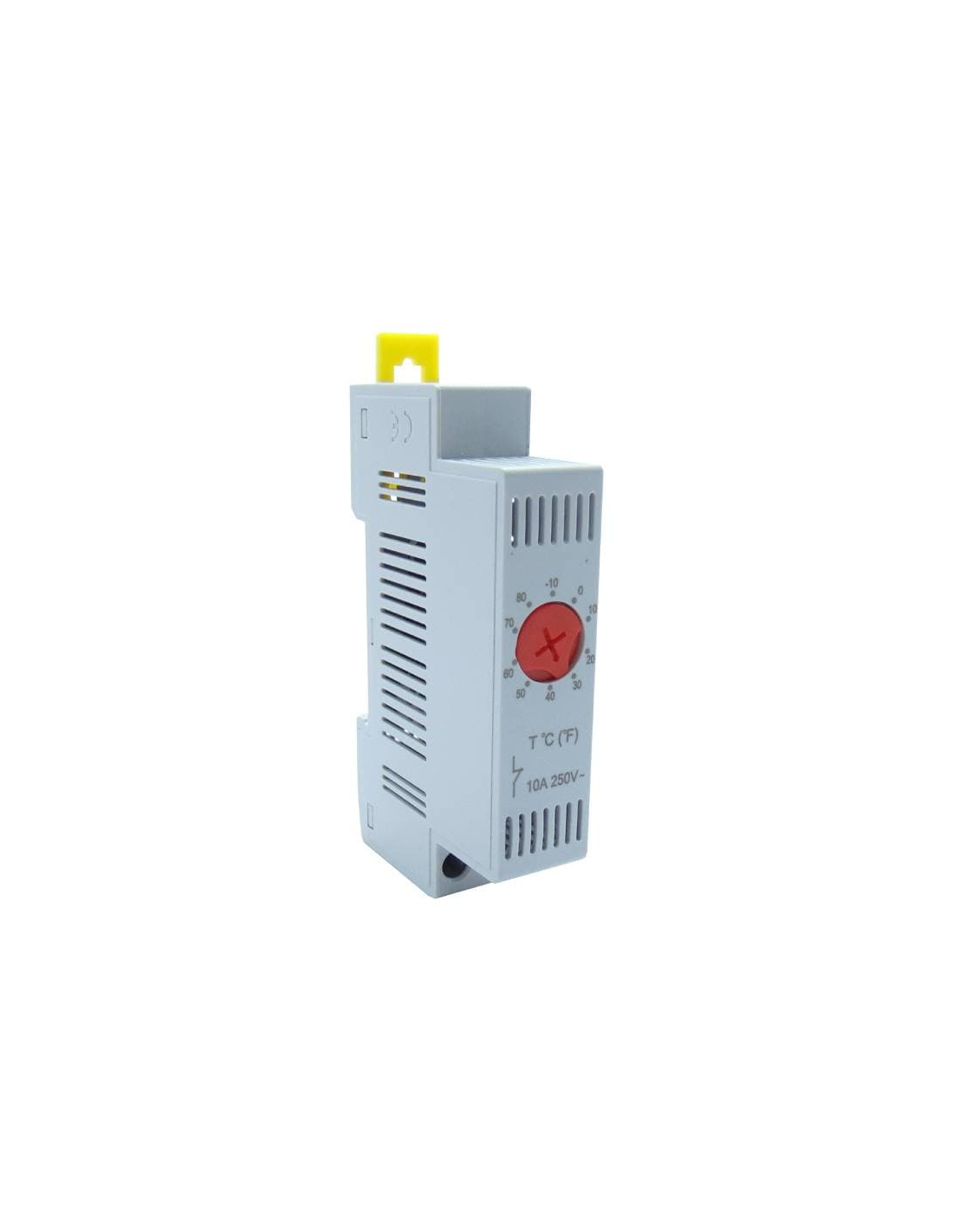

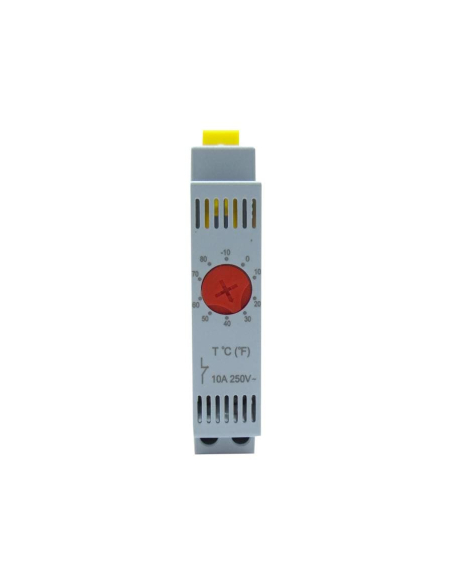

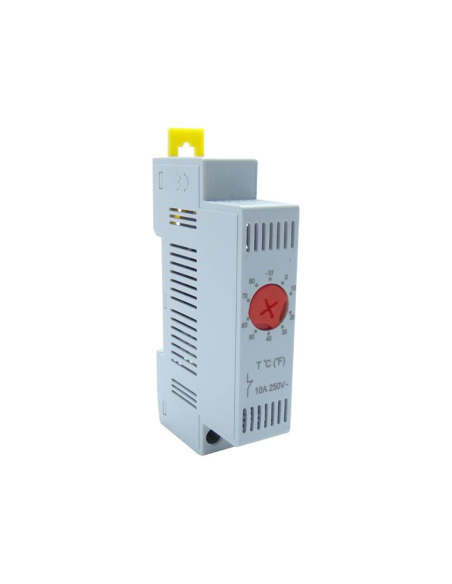

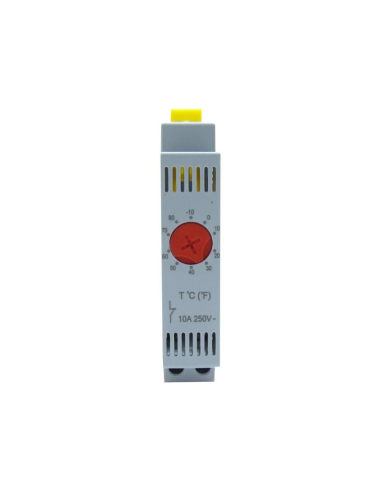

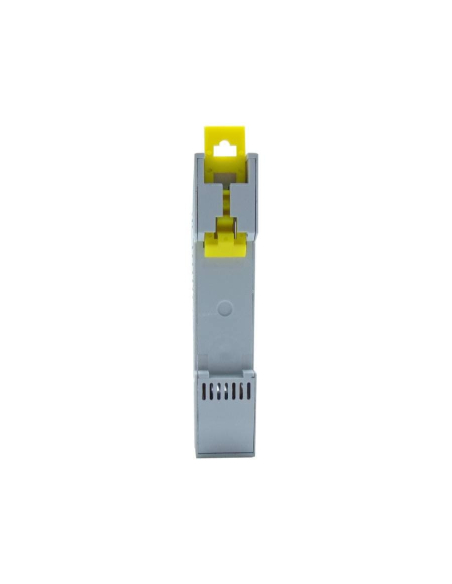

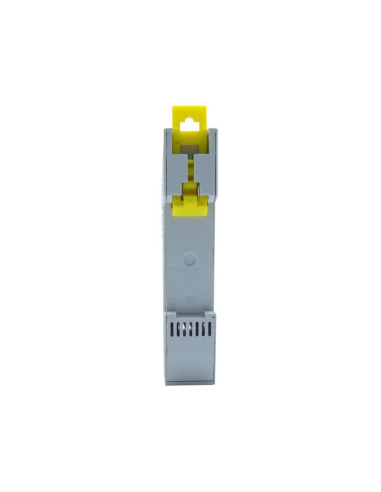

Compact analog thermostat with closed contact, DIN rail mounting (1 module width), suitable for temperature regulation inside electrical cabinets and similar. Temperature range 0º - 60ºC. Very compact size and simple installation.


Reference: TF1M


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Simple compact thermostat for temperature control in electrical cabinets or similar environments, with a closed contact. Analogue temperature regulation and bimetallic type sensor element. The contact will open when the set temperature is exceeded. The usual use is to control heating elements.


Made of ABS plastic material, very compact size and very easy to install on DIN rail (1 width module).

This type of element must be located in the upper area of the electrical cabinet, with the greatest possible distance from heating elements or other elements that generate heat. The thermostat ventilation holes must not be obstructed.


Pay special attention to the power of the load to be connected to the thermostat since it should never be exceeded; The thermostat will irreparably deteriorate due to overload. Install appropriate protection devices and if you need to use loads that exceed those that the thermostat output contact can withstand, install relays or contactors appropriate to the load to be connected.


Technical characteristics:

  • Manufacturer/Supplier: OMU/Mixvil
  • Reference: TF1M
  • Contact type: 1 closed NC
  • Maximum switching capacity 250VAC, 10 (2)A / 120VAC, 15 (2)A
  • Maximum input current: AC 16A (max. 10 seconds)
  • Temperature regulation range: 0º ~ 60ºC
  • Switching sensitivity: +/- 5°C
  • Controller color: red
  • Sensor type: bimetallic
  • Contact type: immediate action
  • Lifespan: >100,000 cycles.
  • Electrical connection: two-pole terminal using screws
  • Material: UL94 V-0 compliant plastic
  • Mounting: 35mm DIN rail, EN 60715
  • Mounting position: any
  • Operating temperature: -20°C to +80°C
  • Operating humidity: max. 90% RH (non-condensing)
  • Dimensions: 83 x 48 x 17mm
  • Weight: 40g
  • Protection grade: IP-20

(*) When connecting with twisted cable, use tubular terminal. The contacts of the bimetallic element are subject to environmental influences, so the contact resistance may vary. This can lead to a voltage drop and/or heating of the contacts.




Connection diagram:


Connection example:




Dimensions:




Material for professional use, install in compliance with the regulations in force at the installation site.
