€6.76 Tax included

€5.59 tax excl.

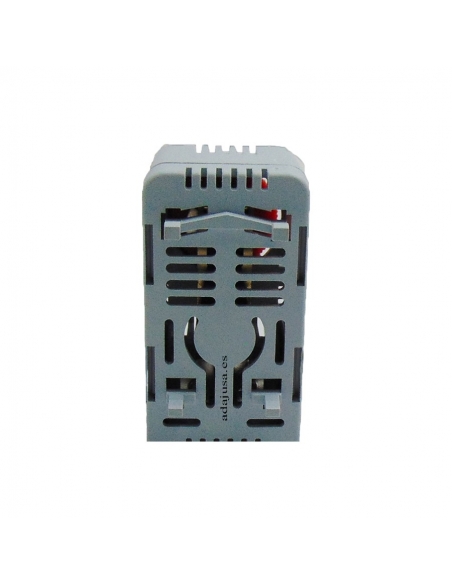

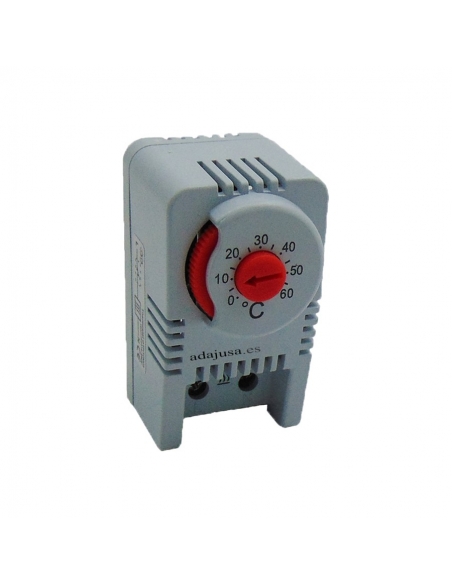

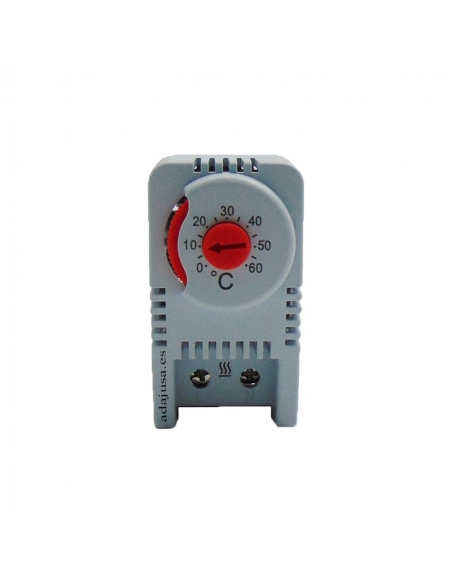

Analog thermostat with nc, mounted on din-rail, with a temperature regulation between 0º and 60ºC.

Reference: GTHT

Esquema eléctrico termostato cerrado


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Simple thermostat for temperature control with a nc. Regulation of the analog temperature and bimetallic type collector element.

The contact will open when the set temperature is exceeded. The usual use is the control of heating elements.

Made of plastic material according to UL94V and mounted on din-rail.

Specifications:

  • Manufacturer: Gaestopas
  • Reference: GTHT
  • Contact type: closed NC (red button)
  • Connection difference: 7K (± 4K tolerance)
  • Probe: Thermostatic bimetal
  • Contact Class: Exhaust Contact
  • Life span: >100,000 cycles
  • Maximum connection power: 250VAC, 10(2)A / 120VAC, 15(2)A / DC 30W (24VDC to 72VDC)
  • Maximum connection current: AC 16 A for 10 seconds
  • Connection: 2-pole terminal, tightening torque 0.5Nm max.: rigid cable 2.5mm2 (AWG 14), braided cable(*) 1.5mm2 (AWG 16)
  • Fixing: 35mm DIN din-rail , EN 60715
  • Housing: Plastic according to UL94 V-0, light grey
  • Dimensions: 61 x 34 x 38mm
  • Weight: about 40gr
  • Mounting position: Variable
  • Serving/storage temperature: -45 to +80°C (-49 to +176°F)
  • Humidity (s/a): Max. 90% RH (non-condensing)
  • Degree of protection: IP20

(*) When making the connection with braided cable, use tubular terminal. The contacts of the bimetallic element are subject to environmental influences, so the contact resistance may vary. This can lead to a voltage drop and/or heating of the contacts.


Connection diagram:

Example of connection:

Dimensions:



Material for professional use, install in compliance with the regulations in force at the place of installation.
