€7.74 Tax included

€6.40 tax excl.

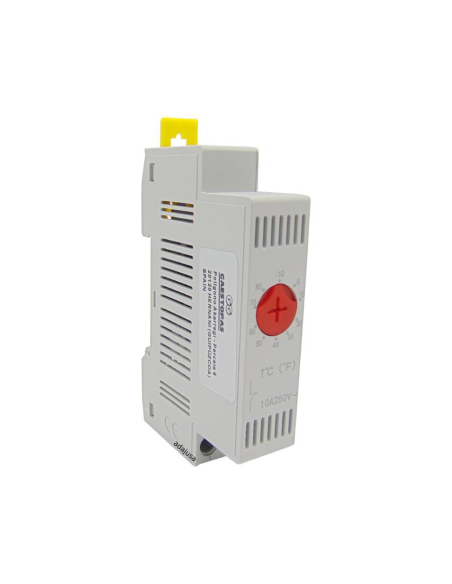

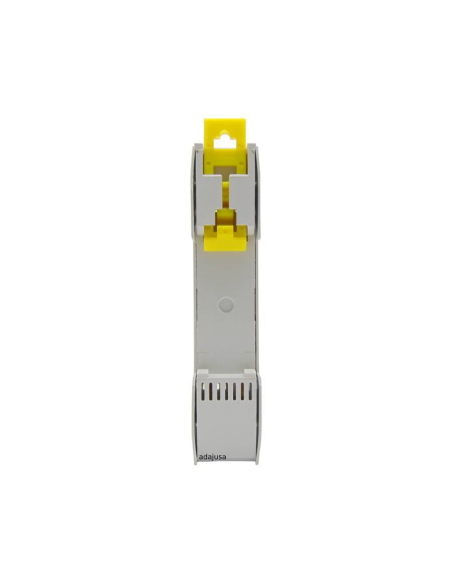

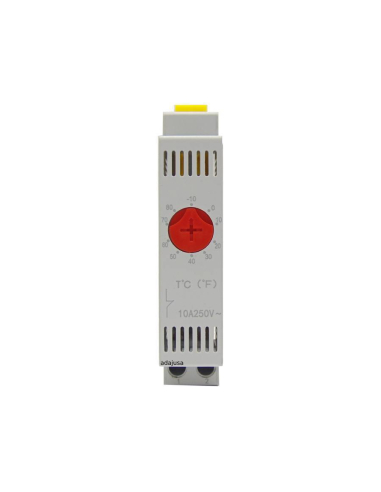

Compact analog thermostat with closed contact, dIN rail mounting (1 module wide). Temperature regulation between 0º and 60ºC.

Part number: GTHT-S

Esquema eléctrico termostato cerrado


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Compact thermostat for temperature control with a closed contact. Suitable for the regulation of heating appliances.

The contact will open when the temperature set on the thermostat is exceeded. Analog temperature control and bimetallic sensor element.

Made of plastic material according to UL94V and DIN rail mounting.

Technical characteristics:

  • Manufacturer: Gaestopas
  • Part number: GTHT
  • Type of contact: closed NC (red button)
  • Regulating temperature: 0º to 60ºC ± 5ºC
  • Probe: Thermostatic bimetal
  • Contact class: Exhaust contact
  • Lifetime: >100,000 cycles
  • Max. switching power: 250VAC, 10(2)A / 120VAC, 15(2)A / DC 30W (24VDC to 72VDC)
  • Maximum switching current: AC 16 A for 10 seconds
  • Connection: 2-pole terminal, tightening torque 0.5Nm max.: solid wire 2.5mm2 (AWG 14), stranded wire(*) 1.5mm2 (AWG 16)
  • Mounting: 35mm DIN rail DIN, EN 60715
  • Housing: Plastic according to UL94 V-0, light gray
  • Dimensions: 84 x 48,8 x 17,5mm
  • Weight: approx. 40gr
  • Mounting position: Variable
  • Operating/storage temperature: -45 to +80°C (-45 to +80°C) (-49 to +176°F)
  • Humidity (s/a): Max. 90% RH (non-condensing)
  • Degree of protection: IP20

(*) When connecting with stranded cable, use a wire end ferrule. The contacts of the bimetal element are subject to environmental influences, so the contact resistance may vary. This may lead to a voltage drop and/or heating of the contacts.


Connection diagram:


Connection example:




Dimensions:




Material for professional use, install in compliance with the regulations in force at the place of installation.
