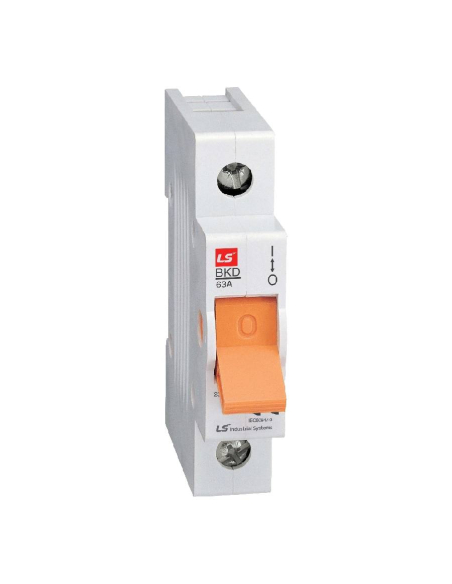

Disconnector 1 Polo 63A - LS

Name: Disconnector 1 Polo 63A - LS
Brand: LS Electric
SKU: 97BKD1P63A
Price: 6.765 EUR
Availability: InStock

€6.77 Tax included

€5.50 tax excl.

1-pole, 63A load break Switch disconnector . Din rail mounting, 1 module wide. BKD series.

Reference: BKD 1P 63A

1 pole disconnector diagram

LS Electric brand

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

1-pole, 63A load-break switch for disconnecting voltage from an electrical installation or machine. Modular design with a width of 17.5mm for mounting on DIN rail.

Characteristics:

Manufacturer: LS (LG)
Reference: BKD 1P 63A
Number of poles: 1
Nominal voltage: 240/415Vac 50/60Hz
Rated current: 63A
Nominal insulation voltage (Ui): 600V
Rated impulse voltage (Uimp): 6kV
Electrical life: 1500 operations
Mechanical life: 10,000 operations
Mounting: DIN rail 35mm
Width: 17.5mm per pole
Standard: IEC60947-3

Attention: This component should not be confused with a thermal-magnetic switch, they are two different elements.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Professional use material, install in compliance with the regulations in force at the place of installation.
