Transformer 200VA 230/230Vac ultra-insulated IP-20

€70.43 Tax included

57.26 tax excl.

TRIA200

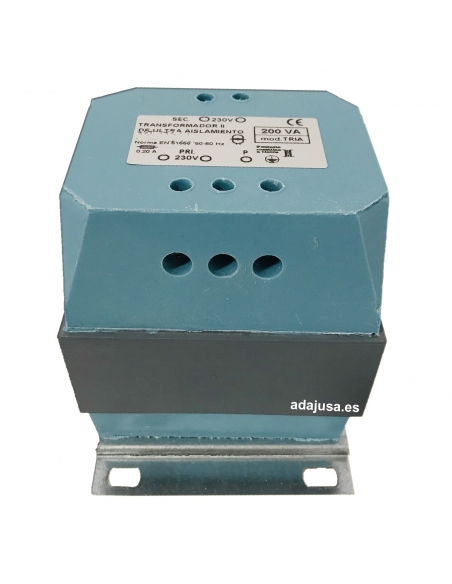

Single-phase ultra-isolation transformer 200VA primary 230Vac secondary 230Vac, designed to supply circuits where galvanic safety separation and disturbance filtering are required.

Manufactured in resin encapsulator, degree of protection IP-20.

Part number:TRIA200

esquema transformador monofásico con pantalla 230-230

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Single-phase ultra-isolation transformer of 200VA, 230Vac input and 230Vac output, for control and maneuver in electrical circuits where safety galvanic isolation and disturbance filtering are required. The maximum current supplied is 0.86 A (apparent current).

Ultra-insulated transformer, with pharadic screen. Separation of primary and secondary circuits by means of an electrostatic safety screen that filters and grounds unwanted signals and disturbances. The degree of filtering of disturbances will depend directly on the quality of the grounding of the installation.

Manufactured with resin encapsulation that provides an IP-20 degree of protection.

Technical characteristics of the transformer:

  • Reference: TRIA200
  • Available primary/secondary voltages: 230/230Vac
  • Transformer power: 200 VA
  • Maximum secondary current (In): 0.86A
  • Windings: Thermal class N 200ºC
  • Insulation: Thermal class B 130ºC
  • Frequency: 50/60 Hz
  • Protection: IP-20
  • Transformer test voltage
    • 5 KV between windings.
    • 2.5 KV between windings and ground.
  • Ambient temperature: Ta= 25ºC
  • Transformer encapsulation: Self-extinguishing resin
  • Transformer mounting: by means of screws
  • Certificate: UNE-EN61558

Indicaciones de medicas transformadores monofasicos en resina

Table dimensiones transformadores monofasicos TRIA

Esquema electrico transformador separador con triple pantalla

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load. Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Hola, estaba buscando un transformador galvánico para mi equipo de HIFI, tengo un amplificador de válvulas con un trafo de alimentación de 180VA, aparte del tocadiscos que son 12W más. ¿Qué me recomendáis? Muchas gracias por la información. Carlos.
Answer
Buenas tardes.

Ese transformador de ultraaislamiento soporta una carga de 140 W, el fabricante recomienda sobredimensionar un 20 % sobre la carga máxima que tenga que soportar.

180 VA equivale  126 W + 12 W =  138 W    138x 20% = 27,6     hay que buscar uno que soporte una carga de 165,6 W



Este transformador de ultraaislamento soporta una carga de 175 W.

No obstante, verifique que cumpla con sus especificaciones.

Saludos

Adajusa
Carlos on 01/30/2023 17:39:31
