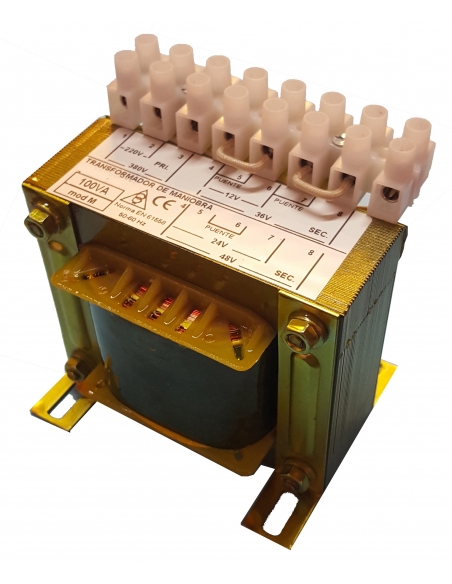

Transformer 200VA E:230/400V S:12/24/36/48 IP-00
Transformer 200VA E:230/400V S:12/24/36/48 IP-00
Transformer 200VA E:230/400V S:12/24/36/48 IP-00
Transformer 200VA E:230/400V S:12/24/36/48 IP-00

Transformer 200VA E:230/400V S:12/24/36/48 IP-00

€74.14 Tax included

60.28 tax excl.

M-200

Single-phase transformer for command, control and general uses. The power of the transformer is 200VA, the degree of protection of the transformer is IP-00. This range of transformers has four output voltages 12,24,36 or 48V, each of them selectable by means of supplied jumpers.

Reference: M200

Esquema transformador multitensión

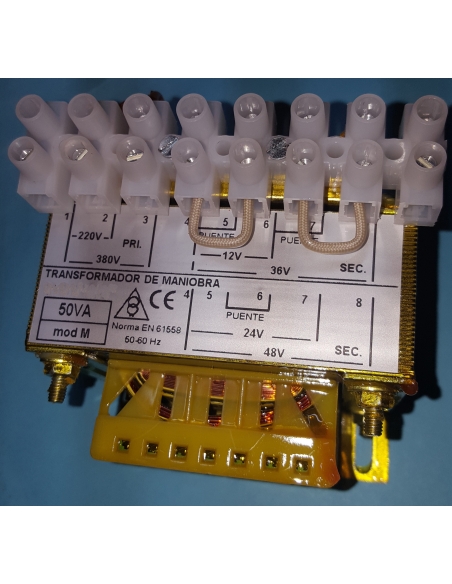

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Single-phase varnished isolatingtransformer for control and switchgear, transformer with four possible output voltages, each of them selectable by means of supplied jumpers.

Technical characteristics of the transformer:


  • Reference: M200
  • Transformer primary voltage: 230/400V.
  • Transformer secondary (output) voltage: 12/24/36 or 48V, selectable by means of jumpers.
  • Transformer power: 200 VA.
  • Maximum current (In): 4.16A
  • Windings: Thermal class N 200ºC.
  • Selection: of voltages by means of jumpers.
  • Insulation: Thermal class B 130ºC.
  • Frequency: 50/60 Hz.
  • Protection: IP-00.
  • Transformer test voltage
    • 5 KV between windings.
    • 2.5 KV between windings and ground.
  • Ambient temperature: Ta= 25ºC.
  • Transformer encapsulation: Varnished.
  • Transformer mounting: by means of screws.
  • Certificate: UNE-EN61558
Dimensiones transformador multitensión Sevein IP-00
The transformer is supplied without any type of overload protection, it is mandatory to install them. The rated power is understood on the higher voltage tap, on the lower voltage tap it will be reduced proportionally to the voltage. The maximum current supplied (In) cannot be exceeded by any of the voltage sockets when only one of them is used, if both voltage sockets are used simultaneously, the sum of both currents cannot exceed the rated current (In).

Professional use material, install in compliance with the regulations in force at the place of installation.

Questions

Question
Guten Tag,
Ich bin Interessiert an dem Produkt:
Transformator 200VA E:230/400V S:12/24/36/48 IP-00

Habe aber leider nirgends das Gewicht gefunden, könnten sie mir genauere Angaben dazu geben?
Answer

Sehr geehrter Kunde,

vielen Dank für Ihre Anfrage.

Das Gewicht des Transformators 200VA E:230/400V S:12/24/36/48 IP-00 beträgt 3,2 kg (wie in der technischen Produktbeschreibung angegeben).

Wir erinnern Sie daran, dass es sich um ein professionelles Produkt handelt, das von qualifiziertem Fachpersonal installiert werden muss. Bitte überprüfen Sie vor der Bestellung, ob es für Ihre Anwendung geeignet ist.

Mit freundlichen Grüßen
Adajusa

Alexander Ortner on 08/29/2025 15:57:51
