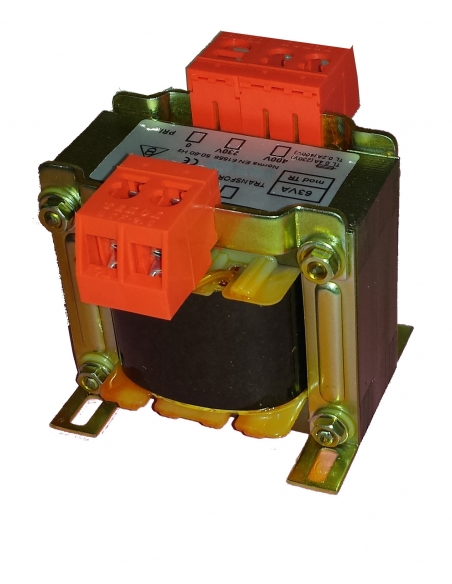

Transformer 100VA E:230/400V S:24V IP-00
Transformer 100VA E:230/400V S:24V IP-00

Transformer 100VA E:230-400V S:24V IP-00

€48.10 Tax included

€39.75 tax excl.

Single-phase transformer for command, control and general uses, input voltage 230-400 Vac and output voltage 24Vac. The transformer power is 100VA, protection degree IP00.

Reference: TR100 230-400/24

Esquema transformador monofasico 400-230 salida 24

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Single-phase transformer input 230-400Vac and output 24Vac, power 100VA. Varnished transformer, with degree of protection IP-00. The maximum current supplied is 4.16 A (apparent current).

The main application of this type of transformers is for command and control in industrial automatisms, and for applications in general. They are intended to supply electrical devices where galvanic isolation between circuits is required. They are protected against humidity by means of resin impregnation.

This type of transformers are fully reversible.

Technical characteristics of the transformer:


  • Part no.: TR-100-2 / TR100 230-400/24
  • Type of transformer: Single-phase
  • Transformer primary voltage: 230-400Vac
  • Transformer secondary voltage: 24Vac
  • Transformer rated power: 100 VA
  • Maximum secondary current (In): 4,16A
  • Windings: thermal class N 200ºC.
  • Insulation: Thermal class B 130ºC.
  • Frequency: 50/60 Hz.
  • Protection: IP-00.
  • Transformer test voltage
    • 5 KV between windings.
    • 2.5 KV between windings and ground.
  • Ambient temperature: Ta= 25ºC.
  • Transformer encapsulation: varnished.
  • Transformer mounting: by means of screws.
  • Certificate: UNE-EN61558

Dim_trafo_monofasico_ip00

  • A: 84 mm
  • B: 87 mm
  • C: 85 mm
  • D: 49 mm
  • E: 63 mm
  • diameter: 4 mm
  • Weight: 1.5 Kg

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Professional use material, install in compliance with the regulations in force at the place of installation.
