Transformer 2500VA IP00 special voltages
Transformer 2500VA IP00 special voltages

Transformer 2500VA IP00 voltages as needed

Special manufacturing material, shipping 2-5 days
€267.41 Tax included

€221.00 tax excl.

Free shipping!

Single-phase maneuver transformer for command, control and general uses. The transformer power is 2500VA and with protection level IP00. Primary and secondary voltage can be requested by the customer.

The stresses at which transformers can be manufactured are, for the primary between 100 to 500Vac, and for the secondary between 10 and 500Vac.

Esquema transformador monofasico generico

Select the input voltage (primary) and output voltage (secondary) from the right side menu.

Reference: TR2-2500-Special

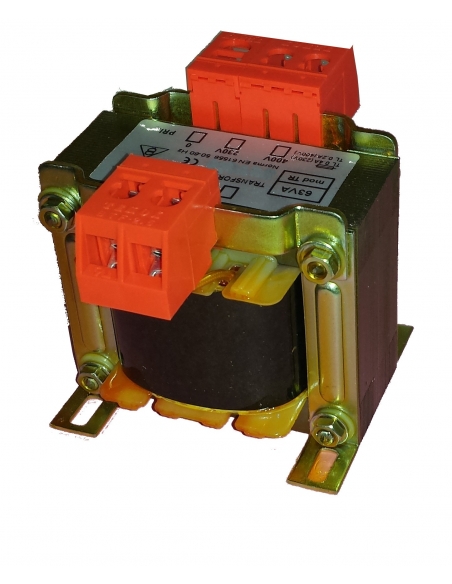

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Single-phase maneuver transformer for command, control and general uses. The transformer power is 2500VA and with protection level IP00. Primary and secondary voltage can be requested by the customer.

These types of transformers are fully reversible.

The stresses that can be requested are:

  • Primary or winding 1: between 100 and 400Vac.
  • Secondary or winding 2: between 10 and 230Vac.

Note: This transformer does not have intermediate sockets for various voltages.

Technical characteristics of the transformer:


  • Ref: TR2-2500-Special
  • Transformer primary voltage: at customer request
  • Transformer secondary voltage: at customer's request
  • Rated transformer power: 2500 VA.
  • Windings: Thermal class N 200oC.
  • Insulators: Thermal class B 130oC.
  • Frequency: 50/60 Hz.
  • Protection: IP-00.
  • Transformer test voltage:
    • 5 KV between windings.
    • 2.5 KV between windings and dough.
  • Ambient temperature: Tao 25oC.
  • Transformer encapsulation: varnished.
  • Transformer mounting: using screws.
  • Certificate: UNE-EN61558

Dim_trafo_monofasico_ip00

  • A: 195 mm
  • B: 200 mm
  • C: 200 mm
  • D: 183 mm
  • E: 170 mm
  • 7 mm
  • Weight: 23 Kg.

The given dimensions are indicative, they may vary depending on the stresses.

Attention:

Special production material, once production has started, the order cannot be modified or reversed. Please note that payment order for cash back or non-refund PayPal incorporate this material is not supported.

Material for professional use, install in compliance with the regulations in force at the installation site.
