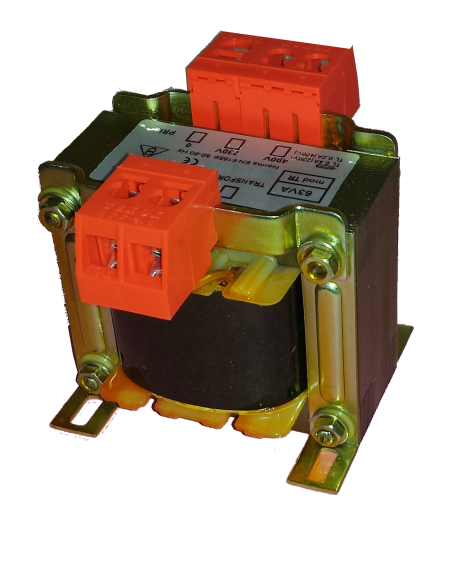

Transformer 63VA E:230-400V S:12-24V IP00
Transformer 63VA E:230-400V S:12-24V IP00

Transformer 63VA E:230-400V S:12-24V IP00

€35.37 Tax included

€28.76 tax excl.

Single-phase safety transformer with galvanic isolation, 63VA capacity. Input voltage: 230 or 400Vac, and two possible output voltages: 12V or 24Vac. Either combination allows the transformer to provide its full power. IP-00 protection rating. Mounting via screws or DIN rail.

 Primarily intended to provide a safe, reduced voltage to avoid electrical risks to people and equipment, but also for isolation to power electrical devices that require separation of the input circuit from the output circuit. Fixing by screws or DIN rail.


Reference: TS040633200

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


63VA single-phase safety transformer , with 230/400Vac input and 12V/24Vac output, each selectable via jumpers. Depending on the connection of the two output secondary terminals, the transformer can supply either 12Vac with a current of 5.25A (apparent current) or 24Vac with a current of 2.62A (apparent current). The transformer is varnished and has an IP-00 protection rating.

This type of transformer is specifically designed to provide a safe, reduced voltage, avoiding electrical risks to people and equipment, and to provide electrical separation of the input (primary) circuit from the output (secondary) circuit through galvanic isolation. Suitable for protecting and powering control circuits in industrial machinery and electrical systems in environments where a safe voltage is required to prevent dangerous shocks. Mounting via screws or DIN rail.

These types of transformers are reversible.


The transformer can be secured with screws or on a DIN rail. It must be secured to the DIN rail using the accessory designed for this purpose, reference KITDINKF1.5. This accessory is not included in the scope of supply and must be purchased separately.





Technical characteristics:

  • Reference: TS040633200
  • Primary voltage: 230/400Vac
  • Transformer power: 63VA
  • Secondary voltage (output): 12/24Vac (selectable by jumpers)
  • Maximum intensity (output): 5.25A (12Vac) / 2.62A (24Vac) (selectable by jumpers)
  • Frequency: 50/60Hz
  • Dielectric strength between primary and secondary: 4600V
  • Dielectric strength between primary and ground: 3500V
  • Winding: copper wire, class H. Primary and secondary separated (galvanic separation)
  • Protection level: IP00
  • Protection class: I
  • Insulation class: T40/F
  • Connection: Screw-fastener terminals
  • Weight: 1.42Kg
  • Regulation: EN 61558-2-6



IP00-TS-dimensions



Electrical connection:



The transformer is supplied without any type of overload protection; it is mandatory to install them to avoid overloading the transformer.

The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.



Professional use material, install in compliance with the regulations in force at the place of installation.
