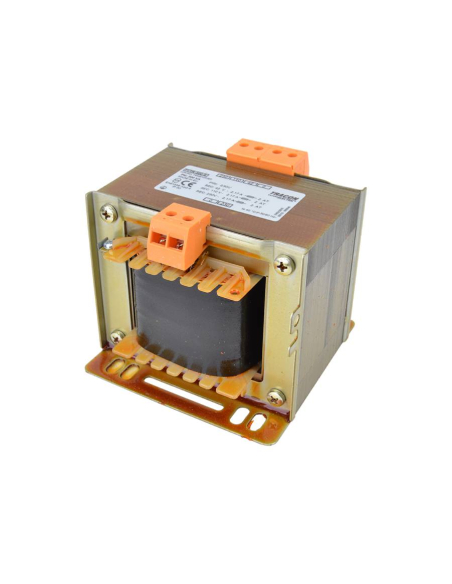

Transformer 100VA E:230V S:6-12-18-24V IP-00

€60.33 Tax included

49.05 tax excl.

TVTR-100-B
Single-phase isolation transformer for operation, command and control, as well as general uses. Input voltage 230Vac with four possible output voltages 6-12-18-24Vac. Nominal transformer power 100VA (*) for 24Vac output. Protection degree IP00.

(*) Power varies depending on the secondary voltage input. Power supplied depending on the output voltage: 6V - 25VA / 12V - 50VA / 18V - 75VA / 24V - 100VA.


Reference: TVTR-100-B
Transforming symbol


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

Single-phase isolation transformer for command, operation and control, and general low voltage uses. Input voltage of 230Vac with four possible output voltages 6-12-18-24Vac. The power provided by the transformer is 100VA for the output voltage of 24Vac.

The maximum output current provided is 4.16A. The nominal power of the transformer refers to the value of the highest secondary voltage, so the powers supplied vary depending on the output voltage being 6V - 25VA / 12V - 50VA / 18V - 75VA / 24V - 100VA.

The main application of this type of transformer is for command and control in industrial automation, and for general applications. They are intended to supply electrical devices where galvanic isolation between circuits and/or voltage level adaptation is required. Protection degree IP00. Manufactured according to the requirements of EN 61558-1, EN 61558-2-1 standards.



Technical characteristics:
  • Manufacturer/Supplier: TRACON
  • Reference: TVTR-100-B
  • Transformer type: Single-phase
  • Primary voltage: 230Vac
  • Secondary voltage: 6 - 12 - 18 - 24Vac
  • Transformer nominal power: 25 - 50 - 75 - 100VA
  • Maximum intensity in the secondary (In): 4.16A
  • Frequency: 50/60 Hz
  • Protection: IP-00
  • Protection class: I
  • Terminal protection: IP20
  • Connection: Screw-faston terminals
  • Winding: copper wire
  • Heat resistance grade: E (+120ºC)
  • Weight: 1.9Kg
  • Regulations: EN61558-1, EN61558-2-1










For further information you can download the technical sheet by clicking on the "Attached Files" tab.
Professional use material, install in compliance with the regulations in force at the installation site.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Three-phase autotransformer 230/400V 1 KVA reversible with box Three-phase autotransformer 230/400V 1 KVA reversible with box 2
Single-phase and three-phase autotransformers

Three-phase 230/400V 1 KVA reversible autotransformer with box

MANUMAG
ATT1
€224.43 (€182.46 tax excl.)
Three-phase 1kVA reversible autotransformer, with a metal box that provides an IP23 protection degree, allows the adaptation of voltage from 230Vac three-phase to 400Vac three-phase or 400Vac three-phase to 230Vac three-phase. It also generates neutral. It allows to adapt the tension in machinery, motors, pumps, etc., in an economical way.Reference:...
125/220V 100VA single-phase autotransformer
Single-phase and three-phase autotransformers

Autotransformer single-phase 100VA 125/220Vac IP-00

Generico-SEV
AT-100
€35.19 (€28.61 tax excl.)
Reversible autotransformer single-phase of 100VA, which allows voltage adaptation between 125 and 220Vac. Degree of protection IP-00. It allows to adapt the voltage in small machinery and household appliances in an economical way.Reference: AT-100 Representative image for illustrative purposes, the item supplied will correspond to the specifications...
Single phase autotransformer 125 220 100VA IP-20 AMN Series| ADAJUSA | price Single phase autotransformer 125 220 100VA IP-20 AMN Series| ADAJUSA | price 2
Single-phase and three-phase autotransformers

Single-phase autotransformer 100VA 125/220Vac IP-20 Series AMN

MANUMAG
AMN02110201
€18.97 (€15.42 tax excl.)
100VAsingle-phase reversible autotransformer for voltage adaptation between 125 and 220Vac, IP-20 protection degree. It allows to increase or decrease the mains voltage in order to provide the necessary voltage to domestic equipment, such as household appliances, for intermittent use. Supplied with cable with two European plugs.Reference: AMN02110201...

16 other products in the same category:

Single-phase safety transformer 200VA 12V 24V | ADAJUSA | price Single-phase safety transformer 200VA 12V 24V | ADAJUSA | price 2
Single-phase transformers

Transformer 200VA E:230/400V S:12/24V IP20 TS Series

MANUMAG
TS041203201
€55.94 (€45.48 tax excl.)
Single-phase safety transformer with galvanic isolation, power 200VA. Transformer in a highly resistant polymer case that gives it an IP20 protection rating. This range of transformers has two output voltages, 12Vac or 24Vac, each of which can be selected by means of jumpers. Mainly intended to provide a safe and reduced voltage to avoid electrical risks...
12.5KVA ultra-insulated single-phase transformer with IP23 box
Special manufacturing material
Single-phase transformers

Single-phase transformer 16 kVA 230/230V ultra insulation box IP23

Generico-SEV
TRA16000
€1,252.31 (€1,018.14 tax excl.)
Ultra-insulated 16kVA (16000VA) single-phase transformer with metal box that allows galvanic isolation, noise filter and neutral generation (two-phase installations). It has an electrostatic safety screen that filters and conducts unwanted signals and disturbances to ground, allowing it to be very effective in isolating machines and installations...

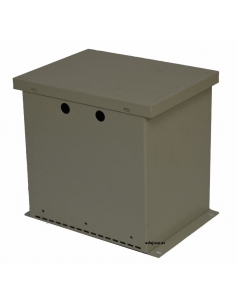

7KVA ultra-insulated single-phase transformer with IP23 box
