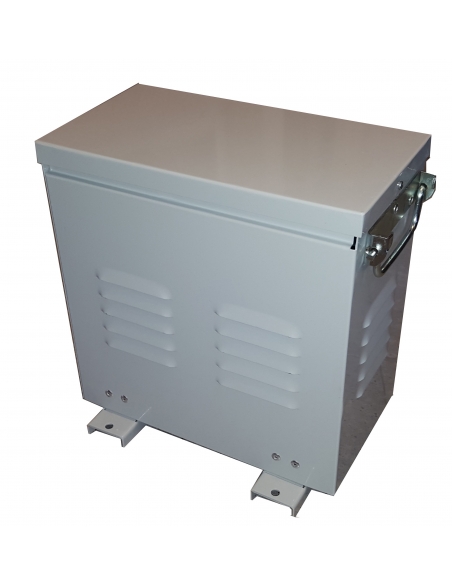

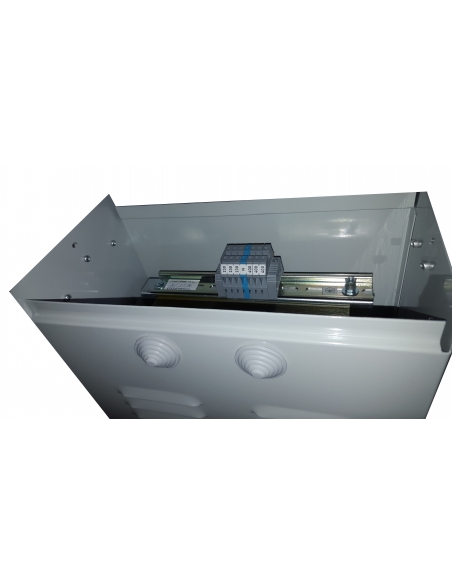

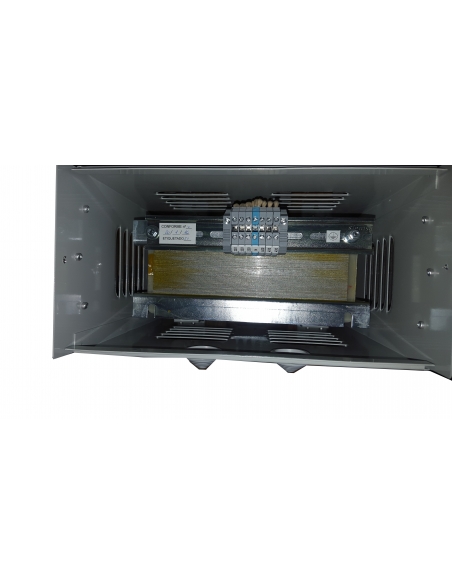

Three-phase 230/400V 1 KVA reversible autotransformer with box

€224.43 Tax included

182.46 tax excl.

ATT1

Three-phase 1kVA reversible autotransformer, with a metal box that provides an IP23 protection degree, allows the adaptation of voltage from 230Vac three-phase to 400Vac three-phase or 400Vac three-phase to 230Vac three-phase. It also generates neutral.

It allows to adapt the tension in machinery, motors, pumps, etc., in an economical way.

Reference: ATT1

three-phase autotransformer electrical diagram
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

2 questions about the product
Privacy
Shipments
Returns


Three-phase, dry-type, reversible autotransformer for voltage change, capable of generating neutral while transforming the voltage value. They are indicated when it is required to adapt the voltage in an economical way, without galvanic separation. Their usual field of application is the adaptation of voltages in machines, pumps, motors, etc. They are supplied in a metal box, which provides an IP-23 insulation degree, connection by means of terminals.

Manufactured with low loss magnetic sheet providing high performance.


Technical characteristics:

  • Reference: ATT1
  • Windings: Thermal class N 200ºC.
  • Transformation ratio 230/400V and neutral. Reversible.
  • Power: 1 KVA
  • Apparent intensity:
    • 400Vac: 1.4A
    • 230Vac: 2.5A
  • Frequency: 50/60Hz.
  • Connection: Yn0.
  • Test voltage: 3KV between windings and ground.
  • Insulators: Thermal class F 155ºC YH 180ºC.
  • Protection: IP-23 (Metal Box ).
  • Ambient temperature: TA=25ºC.
  • Cooling: ANAN (Natural air).
  • Certificate: UNE-EN 61558, UNE-EN 60076.

Dimensions of three-phase Sevein autotransformers

The transformer is supplied without any type of overload protection; it is mandatory to install this to avoid overloading the transformer.
The power and intensity indicated are apparent, the active intensity provided by the transformer will depend on the power factor of the connected load.
Professional use material, install in compliance with the regulations in force at the installation site.

Questions

Question
Boa noite. Gostaria de saber se esse transformador gera 3 fases equilibradas como num sistema L1 L2 e L3 mais N. Cumprimentos Flórido
Answer
Bom Dia. Este produto é um autotransformador trifásico reversível de 1 KVA 230/400, se as fases estiverem desbalanceadas na entrada, também estarão desbalanceadas na saída. https://adajusa.pt/pt/autotransformadores-monofasicos-e-trifasicos/4460-transformador-automatico-trifasico-230-400v-1-kva-reversivel-com-caixa-8435532844600.html Saludos Adajusa
Paulo on 04/09/2022 23:53:25
Question
buenos dias. estos transformadores cono funcionan? la entrada puede ser 220 monofasica y salida 380?
Answer

Buenos días,

Este tipo de elementos solo adptan el nivel de la tensión, pero no convierten de monofásica a trifasica. Supongo que sera esta la pregunta.

Saludos

ruben on 07/02/2018 05:27:43

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Three-phase autotransformer 230/400V 1 KVA reversible with box Three-phase autotransformer 230/400V 1 KVA reversible with box 2
Single-phase and three-phase autotransformers

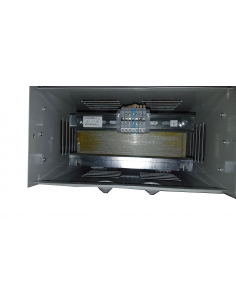

Three-phase 230/400V 40 KVA reversible autotransformer with box

MANUMAG
ATT40
€1,059.96 (€861.76 tax excl.)
Three-phase 40kVA reversible autotransformer with metal case, allows voltage adaptation from 230Vac three-phase to 400Vac three-phase or 400Vac three-phase to 230Vac three-phase. Also generates neutral. It allows to adapt the tension in machinery, motors, pumps, etc., in an economical way.Reference: ATT-40 Representative image for illustrative purposes,...

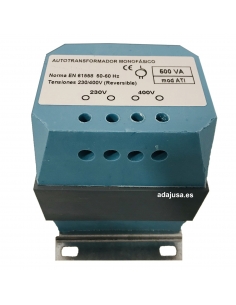

630VA IP-20 single-phase autotransformer 630VA IP-20 single-phase autotransformer 2
Special manufacturing material
Single-phase and three-phase autotransformers

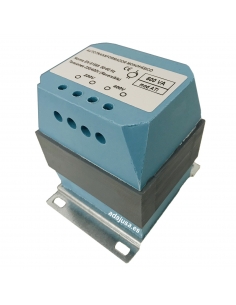

Single-phase auto-transformer 630VA 230/400Vac IP-20
