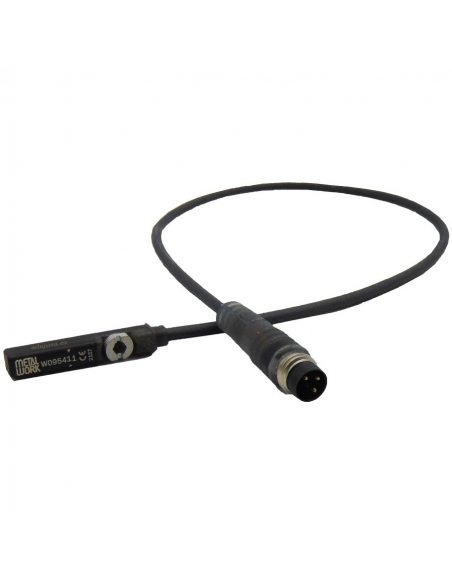

Magnetic sensor with cable included for mounting on pneumatic cylinders. Hall type 3 wires with PNP output.
This sensor has the characteristic of being able to be mounted in the cylinder slot from above, that is, the cylinder heads do not need a through-opening.
It is fixed by a screw qaue pressed against the bottom of the T-groove, the fixing screw is for a 1.5mm allen wrench. The sensor can be installed in any cylinder or component with traditional T-grooves.
Features of the magnetic detector:
- Manufacturer: Metal Work
- Manufacturer reference: W095434 - W0952025390
- Contact type: Hall NO PNP (Normally open).
- Supply voltage (Ub): 10 ÷ 30 Vdc.
- Voltage variation: ≤10% of Ub.
- Voltage drop: ≤ 2V.
- Power (W): 3.
- Peak power (W): 6.
- Output current (mA): ≤ 100.
- Switching frequency (Hz): ≤ 400.
- Short circuit protection: Yes.
- Overload protection: Yes.
- Investment protection: Yes.
- Regulations: CE, EN60947-5-2
- Color led status indicator: Yellow.
- Magnetic sensitivity: 2.8mT±25%.
- Frequency: ≤ 0.1mT.
- Degree of protection (according to EN60529): IP67.
- Working temperature (ºC): -25÷70.
- Sensor capsule material: PA66 + PA61/6T.
- Connection cable length: 2.5 m.
- Connection cable type: PVC; 2x0.12mm².
- Number of drivers: 3.
- Measurement
Length 34 mm.
Width 7 mm.
Height 4 mm.
Other models: consult.
Material for professional use, install in compliance with the regulations in force at the place of installation.
