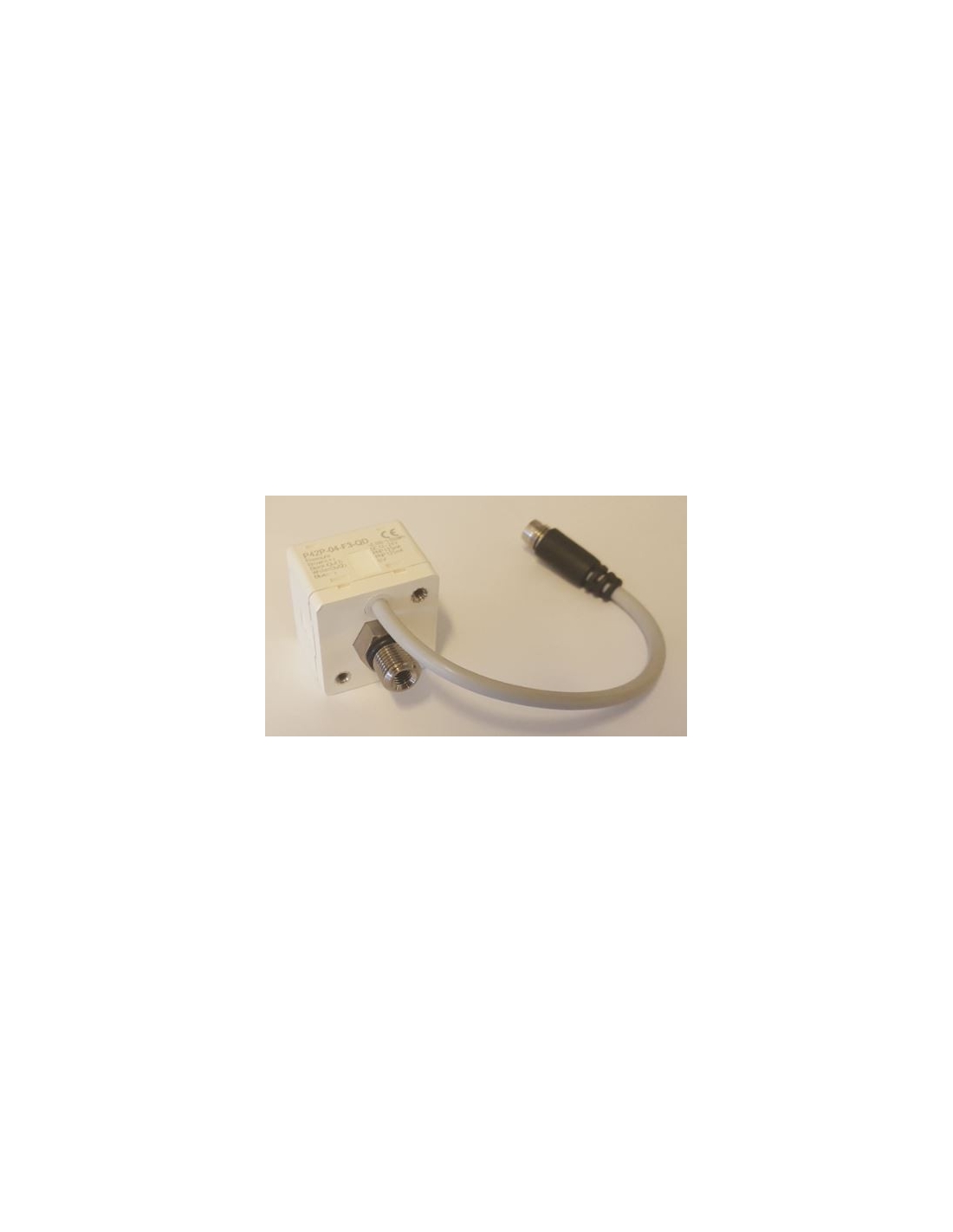

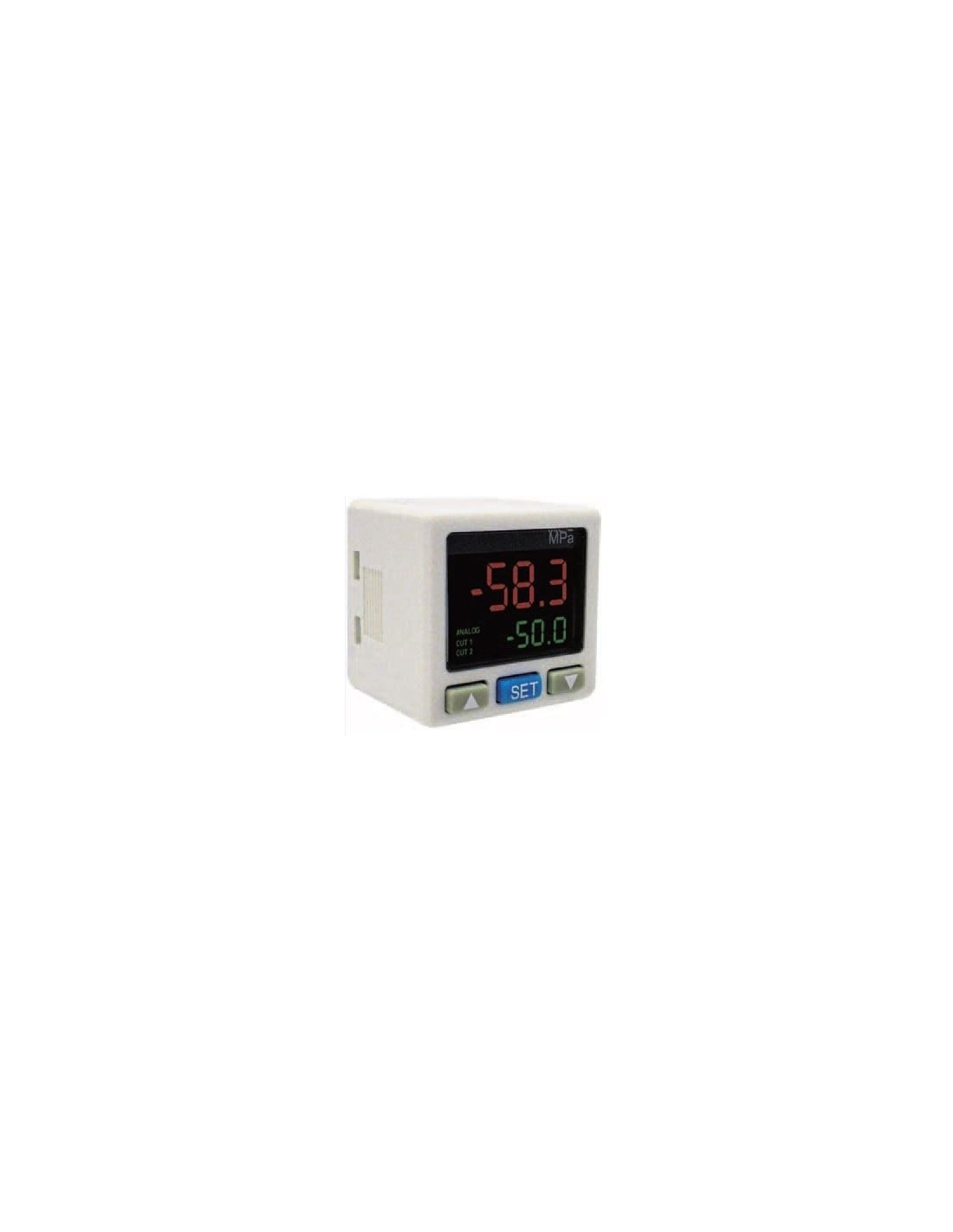

Electronic pressure switch, digital measuring device, whose display changes the color of the screen when it reaches the adjustment pressure. It has two programmable PNP type transistor outputs. Large display. Operation with a voltage of 12-24Vdc. Dimensions 30x30x25,4mm.

Manufacturer reference: P42P04F3QD - P42P04F1QD.

Logo-Metal-Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


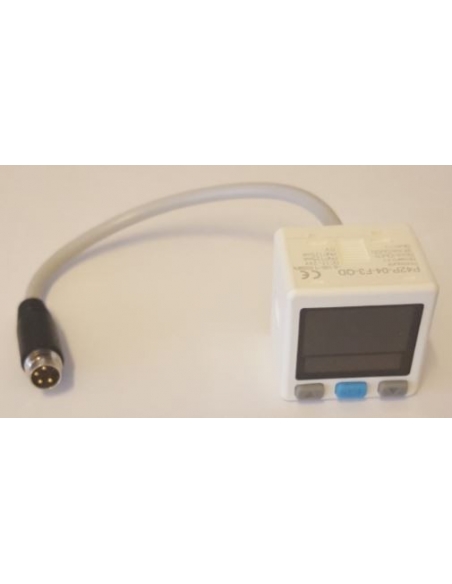

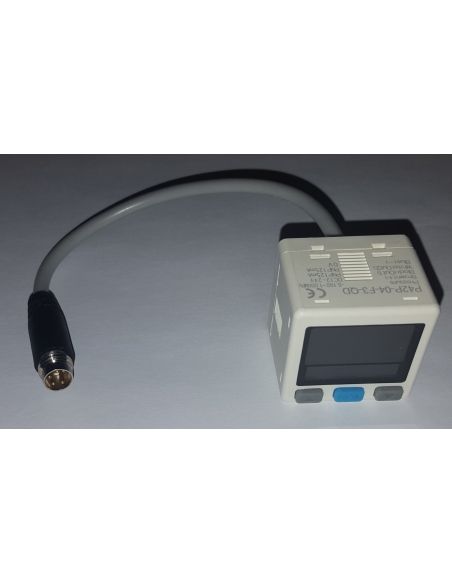

Digital pressure switch, digital measurement element. It is a pressure control device whose display changes the color of the screen when reaching the adjustment pressure. It has a large screen with indication of all the selected functions. Equipped with a digital output with PNP type transistor, protected against short circuit.

It can be configured to work in different units of measure (kPa, Kgr/cm², bar and psi).

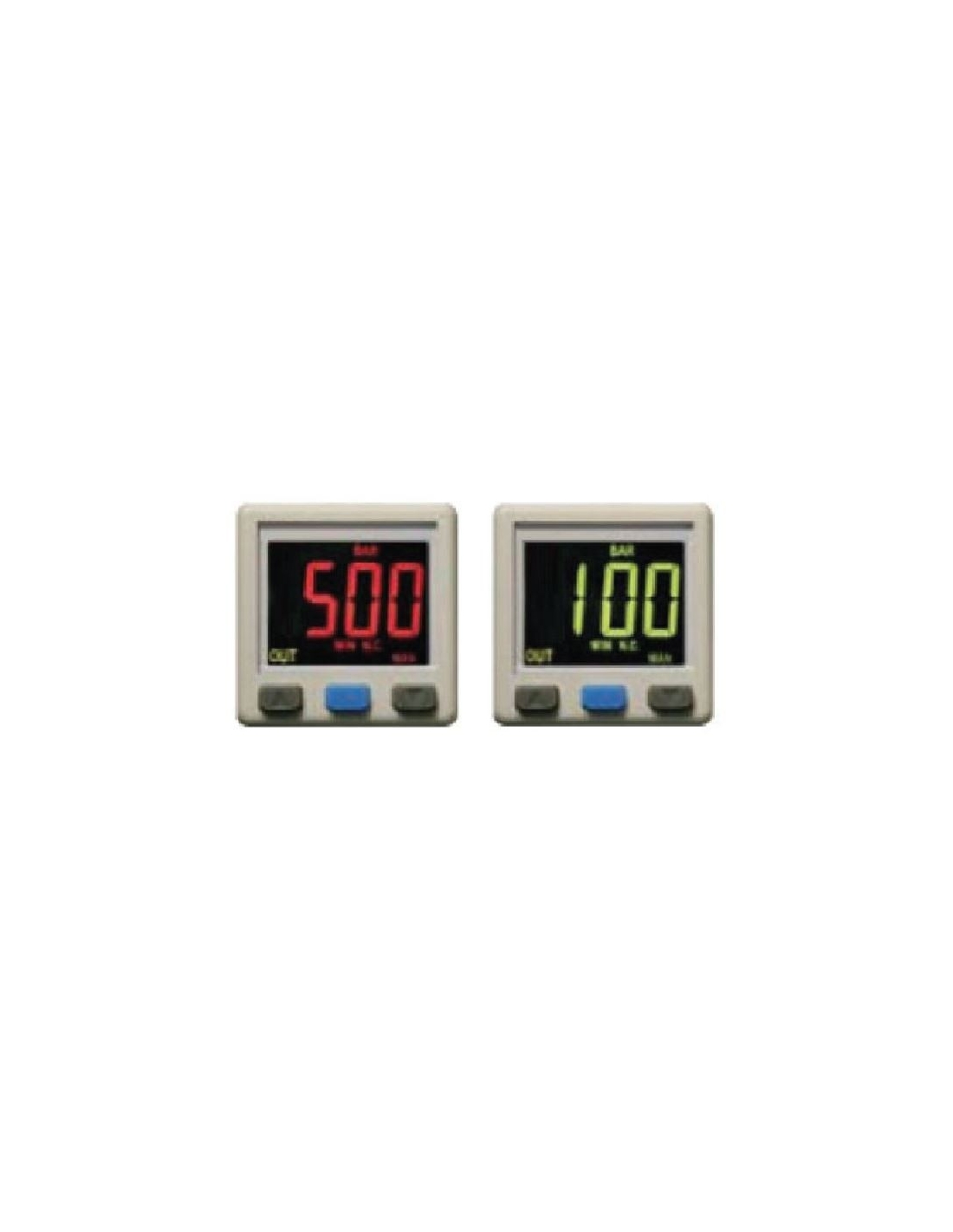

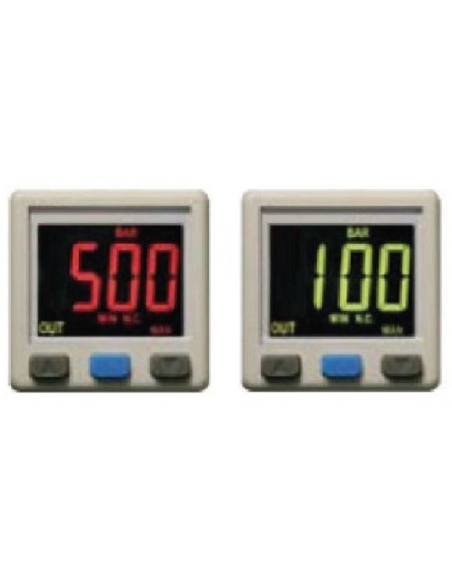

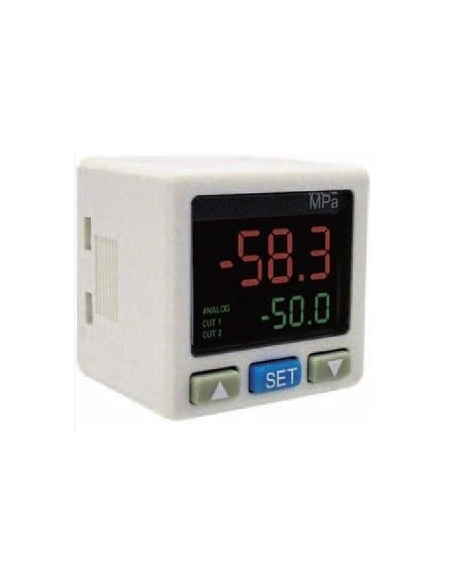

The display we read directly the pressure of the inlet, if it is lower than the programmed it will appear in red, if it is equal or higher it will appear in green.

The outlet will remain unchecked as long as the inlet pressure is below the adjusted inlet pressure, and will be activated when the inlet pressure reaches or exceeds the adjusted value.

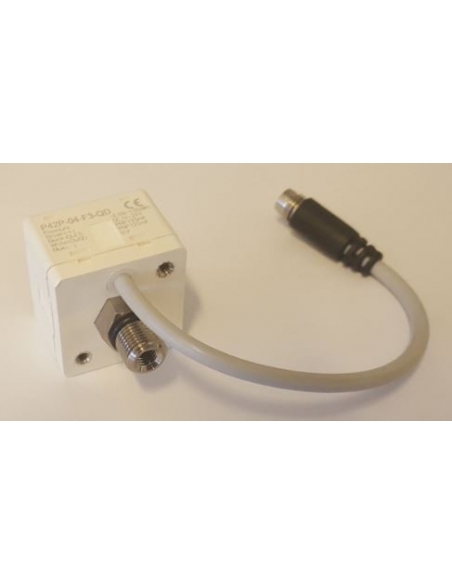

The input socket is located at the rear and the thread type is G 1/8".

specifications:

  • Manufacturer: Metal Work.
  • Manufacturer's reference: Z33P42P04F3QD - Z33P42P04F1QD - Z41P42P-04-F1-QD
  • Type of measurement: Pressure.
  • Adjustment pressure range: 0..0100kPa.; 0..10Kgr/cm².
  • Maximum permissible pressure: 300kPa (30Kgr/cm²).
  • Fluid: Non-corrosive and non-combustible air or gas.
  • Resolution: 1kP - 0,01 Kgr/cm² - 0,01 bar.
  • Supply voltage: 12-24Vdc ±10%, maximum curly ±1%.
  • Current consumption (without load): 45mA.
  • Output type: Digital PNP transistor type protected against short circuits.
  • Maximum output current: 125mA.
  • Maximum output voltage: 24Vdc.
  • Residual voltage at the output: ≤1,5V.
  • Output connection: cable with length of 150mm, finished with M8 male connector.
  • Repeatability: ±0.2% scale background, ±1 digit.
  • Hysteresis: adjustable.
  • Response time: ≤2.5ms.
  • Display color: Red/Green.
  • Instrument accuracy: ±0.2% scale background, ±1 digit at 25ºC±3ºC.
  • Color when pressure is reached: Green.
  • Degree of protection: IP-40.
  • Working temperature: 0..50ºC.
  • Weight: 75g.

accessories:

  • Transpanel mounting bracket: 962PE40B00
  • 4 wire cable with M8 female connector: 96C4C10M

Dimensiones presostato metal work

Output schematic:

Esquema salidas presostato metal work

Diagrama conector presostato neumático metal work

Add-ons for mounting (not included):

Accesorios sujección presostato

Accesorios montaje transpanel presostato

Material for professional use, install respecting the regulations in force at the place of installation.
