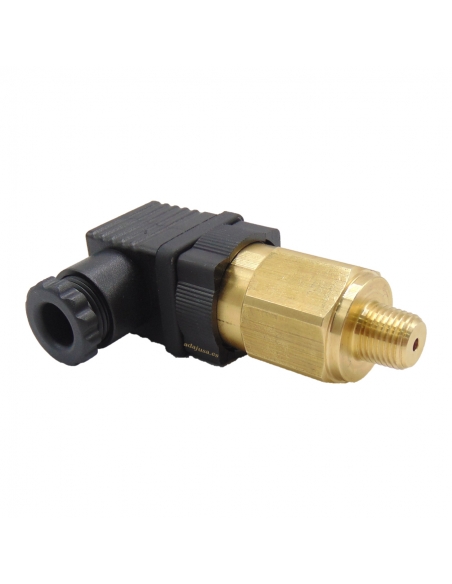

Vacuum switch 1/4" adjustable with connector - Metal Work

€37.43 Tax included

30.43 tax excl.

3821219

Vacuum switchvacuum pressure to electrical signal translator, with 1/4 thread and adjustable from -0.2 to -0.9. Switched contact with connector. Degree of protection IP65.

Part number: 3821219

Esquema electrico vacuostato 1 contacto conmutado

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Vacuum switch for conversion of vacuum pressure to electrical signal, equipped with a high capacity switched contact. The connection to the vacuum port is made by means of a 1/4" thread and the connection to the electrical signal is made by means of a 30mm connector.

The main application of this type of vacuum switch, is the conversion of a vacuum pressure presence at the inlet to an electrical signal.

Technical characteristics:

  • Manufacturer: Metal Work.
  • Manufacturer's reference:3821219.
  • Adjustment pressure range: -200 to -900 mbar.
  • Type of contact: Switched.
  • Maximum voltage: 250 Vac.
  • Maximum current: 5A (250Vac).
  • Degree of protection: IP65.
  • Connection thread: G 1/4".
  • Type of fluid: Air.
  • Temperature: 0 to 50ºC.
  • Weight: 80g.


Note: A 1,5mm Allen wrench is required to proceed with the regulation. Not included

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Vacuostato ajustable de 1/4 con conector Modelo 994VAC14REG01 Como se ajusta y rango del nivel de vacio que tiene que dar la señal? Tiene que dar paso de corriente a un motor de 15A. Si necestia un rele u otro mecanismo entre el motor y el vacuostato especificar el modelo.
Answer

Buenas tardes Sr. Ramon,

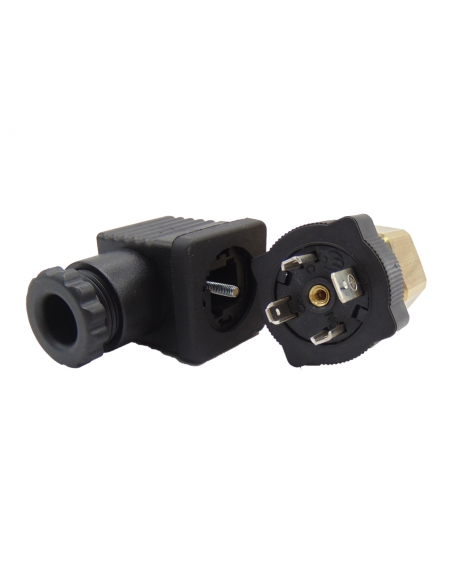

El rango de ajuste es de -0,2 a -0,9 Bar., el ajuste se realiza con una llave alen de 2mm en el orificio situado entre los terminales eléctricos, hay que retirar el conector eléctrico.

Con relación a la carga a aplicar en el contacto, este soporta una intensidad máxima de 5A corriente alterna y en categoría AC1 (carga resistiva).

Pará manejar un motor con una corriente de 15A, tendrá que elegir un contacto con una capacidad de carga mínima de 15A. en categoría AC3 (motores).

Puede usted seleccionar en los siguientes enlaces:

Contactor industrial:

https://adajusa.es/contactores-3-polos-bobina-230vac/contactor-18a-220vac-contacto-auxiliar-abierto.html

Contactor modular:

https://adajusa.es/contactores-modulares-/contactor-modular-63a-4polos-230vac.html

Saludos

Santiago

Ramon Bover Bauza on 05/28/2016 08:52:53
