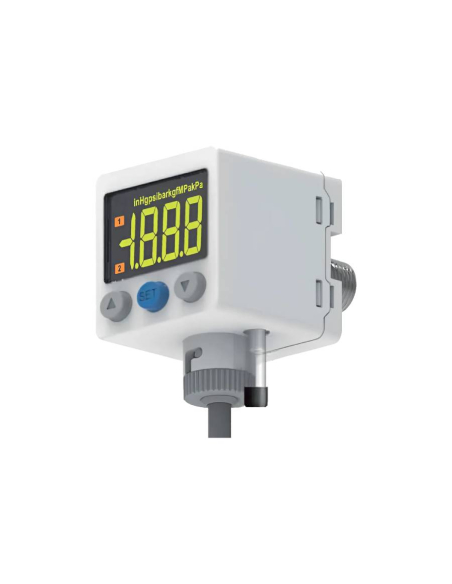

Electronic pressure switch with digital measurement, screen with display that shows the data in two possible colors (red or green) depending on the programmed conditions. It has two PNP type outputs and one analog output (4 ~ 20mA). Operating voltage 12-24Vdc. Large screen that allows easy reading of measurement units. IP65 protection grade.


Reference:
PR02 P 02 P2


Aignep logoLOGONORMATIVE
Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

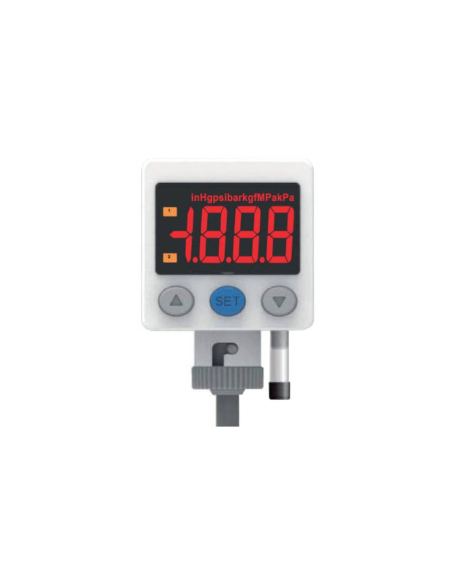

Digital measurement pressure switch with 2 PNP type outputs and 1 analog output (4 ~ 20 mA). Quick and easy installation device that has a seven-segment LCD display that allows information to be displayed in green or red depending on the configuration of the established data, allowing you to program the desired color for different data entry conditions. The display directly shows the inlet pressure, if it is lower than the programmed pressure it will appear in red, if it is equal to or higher it will appear in green. The output will remain unactivated as long as the inlet pressure is below the set inlet pressure, and will be activated when the inlet pressure reaches or exceeds the set value.

The size of the display allows for comfortable reading of the measurement information displayed, as well as the measurement units used, which are shown at the top of the screen. The equipment allows you to work in different units of measurement (kPa, MPa, Kgr/cm2, bar , inHg and psi). The pressure switch is protected against water and dust in all directions (IP65).

The inlet socket is located at the rear and the thread type is R 1/8" - M5.



DRAWING PRESSURE SWITCHES


Technical characteristics:

  • Maker: Aignep
  • Reference: PR02 P 02 P2
  • Measurement type: Pressure
  • Pressure range: 0 to 10bar (0 to 1MPa)
  • Setting pressure range: -1 to 10bar (-0.1 to 1MPa)
  • Pressure resistance: 15bar (1.5MPa)
  • Fluid: Filtered, non-corrosive air / Non-flammable gas
  • Supply voltage: 12 - 24Vdc ±10%
  • Current consumption (no load): ≤ 40mA
  • Maximum load current: 125mA
  • Maximum voltage: 24Vdc
  • Residual voltage ≤ 1.5V
  • Repeatability: ±0.2% full scale, ±1 digit
  • Hysteresis: Adjustable
  • Response time: ≤2.5ms
  • Output short circuit protection: Yes
  • 7-segment LCD display: 3 1/2 digital (sampling rate: 5 times/second)
  • Display color: Red/Green
  • Display accuracy: ±2% full scale, ±1 digit (ambient temperature 25C ± 3C)
  • Analog output (output voltage) (*) : 1 to 5V ±2.5% FS
  • Analog output (output current) (**) : 4 to 20mA ±2.5% FS
  • Connection size: R1/8 - M5
  • Protection grade: IP65
  • Working temperature: 0 to 50C
  • Weight: 86g
(*) If the analog voltage output is selected, it is not possible to select the analog current output.
(**) If the analog current output is selected, it is not possible to select the analog voltage output.



Dimensions:

DIMENSIONSPR02P

Output circuit connection diagram:

DIAGRAMPR02P

Metal work pneumatic pressure switch connector diagram



Mounting accessories (not included):

  • PR02B1 mounting bracket
  • PR02B2 mounting bracket
  • Panel adapter + front body PR02B3

MOUNTING

ASSEMBLY2 (1)




For more information you can download the technical sheet by clicking on the "Attachments" tab
.

Material for professional use, install in compliance with the regulations in force at the installation site.
