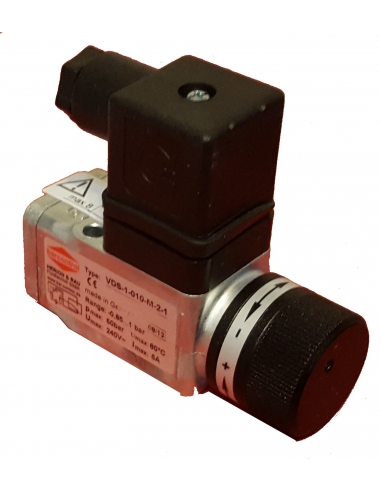

Adjustable vacuostat 1/4 with connector

€111.95 Tax included

91.02 tax excl.

VDS1000M21

Vacuostat 1/4 adjustable -0.85 to -0.15 bar, a switched contact and DIN connector, valid for pneumatic applications, neutral gases and non-corrosive liquid fluids.

Reference: 2027VDS1000M21

Simbolo electrico presostato




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

2 questions about the product
Privacy
Shipments
Returns


Vacuostat 1/4 thread female, adjustable from -0.85 to -0.15 bar, with a switched contact and DIN 43650 connector (Size 30).

The main application is the transformation of the vacuum presence signal into an electrical signal. The contact will change state upon reaching the adjusted vacuum and will remain in this state as long as the input vacuum remains above the setting value. If the vacuum falls below the adjustment value, the contact will return to the sleep position.

The electrical connection is made by means of a DIN 43650 type connector (size 50) that provides an IP65 degree of protection.

Conexión presostato PDS-1-008-M-2-1

Specifications:

  • Manufacturer: Barcontrol
  • Reference: 2027VDS1000M21
  • Fluid: Neutral gases and fluid liquids.
  • Mounting: 2 holes Ø5,2mm.
  • Connection: 1/4" female thread.
  • Working vacçio range: -0.85... -0.15 bar.
  • Maximum pressure: 60 bar.
  • Repeatability: ±2%.
  • number of operations per minute: 200.
  • Working temperature range: -10ºC to 80ºC.
  • Vibration resistance: 10g (10...2000Hz).
  • Shock resistance: 30g.
  • Electrical connection: According to DIN 43650.
  • Switching element: Pressure spring switch with self-cleaning contact.
  • Voltage and operation category:
    • AC12: VDE0660 (EN60947): 4A at 250Vac.
    • AC14: VDE0660 (EN60947): 1A at 250Vac.
    • DC12: VDE0660 (EN60947): 3A at 28Vdc.
    • DC14: VDE0660 (EN60947): 1A at 28Vdc.
  • CE certification: EU-Standard 73/23/EWG.
  • Degree of protection: IP65.
  • Material: cast iron case of zinc and aluminum alloy, control in plastic and joints in NBR.
  • Weight: 0.295 kg.

Dimensiones vacuostatos VDS-1-010-M-2-1

Other models: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Hola. Estoy buscando un presostato lo mas simple y economico que se pueda programar para que corte un circuito electrico al sobrepasar un vacio determinado y lo vuelva a conectar al bajar de otro valor de vacio. Manteniendo asi en funcionamiento el sistema solo cuando el vacio necesario se alcanza. No estoy seguro de que sistema necesito. Me podeis indicar?
Answer

Con los datos aportados en imposible dar una respuesta a su pregunta, se necesitan mas datos, pero en principio con un presostado y un contactor, en todo caso le indico que no damos soporte a desarrollos de ingeniería o cálculos sobre el desarrollo de proyectos. Solo a cuestiones técnicas sobre el funcionamiento e instalación de los productos.

Le sugerimos que contacte con personal técnico cualificado para el desarrollo de proyectos.

Aroldo on 03/28/2018 02:20:13
Question
Hola. Me gustaría conocer cual es el rango de histeresis de este vacuoestato. ¿Me valdría para un pequeño equipo de vacío para la fabricación de materiales compuestos? Entiendo que si, ya que trabajamos con normalmente entre -0,6 y -0,9 Bar de presión de vacío. Gracias.
Answer

Buenos días,

El fabricante no especifica el rango de histeresis, por lo que supongo que no será constante, lo habitual para vacuostatos estandar es +/- 0,05, pero no se lo puedo confirmar.

Con relación a la aplicación, la desconozco, no puedo recomendar nada, verifique usted las características del dispositivo y compruebe que entra dentro del rango de aplicación requerido.

Saludos

Carlos on 10/08/2017 13:08:24
