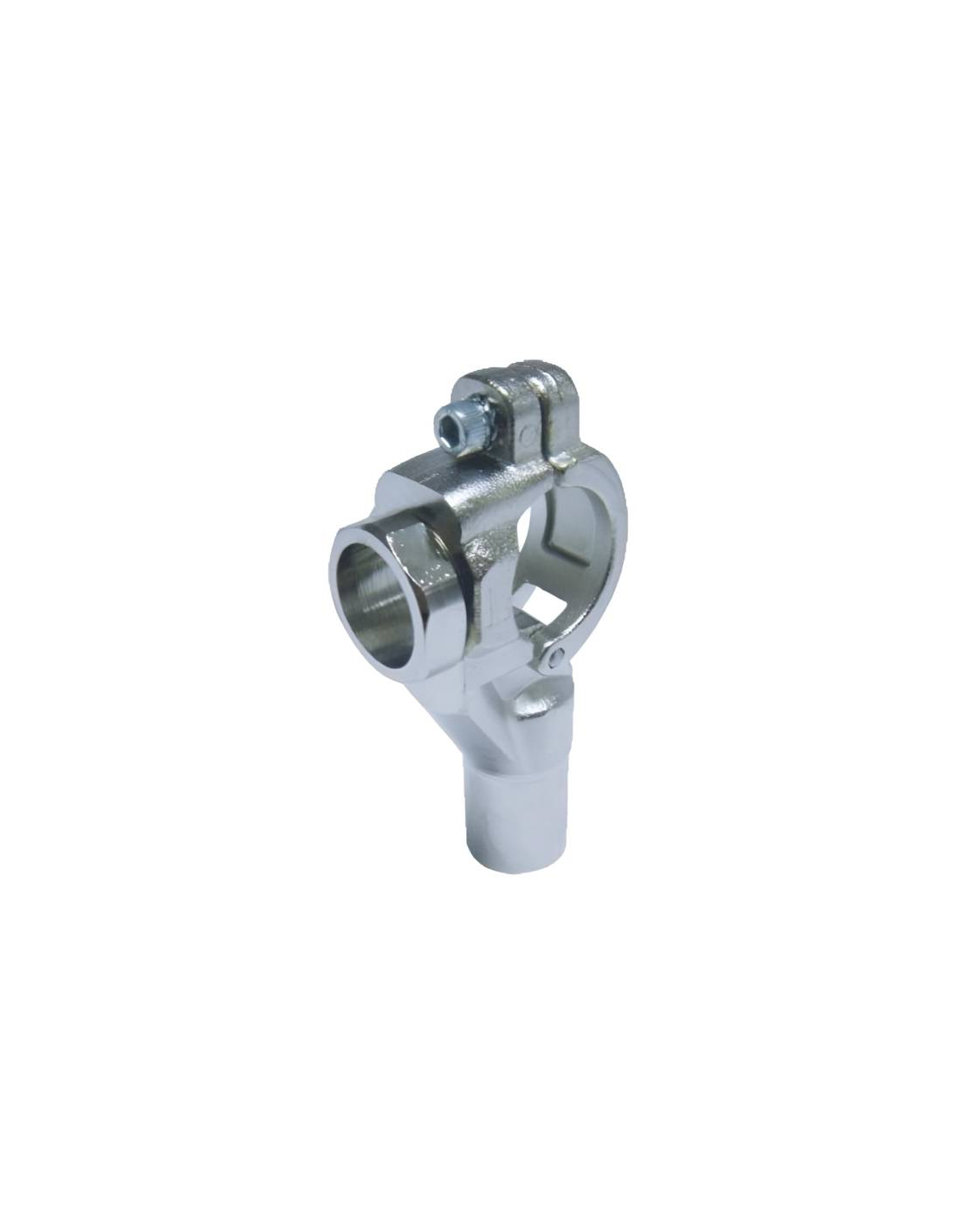

Centering tool for 32mm tube drill - Aignep

€35.04 Tax included

28.49 tax excl.

9024232
Tool or centering element for drilling holes in a 32mm outer diameter tube. This element allows the correct drilling of the tube to be carried out quickly, easily and centered on the desired point of the tube, for the subsequent placement of a flange for downspout or bypass flange of the 90240 and 90246 series from the Aignep brand.


Reference: 90242 32



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns

Tool or element for drilling holes in a 32mm outer diameter tube. This type of element allows you to easily drill the tube at the desired point for the subsequent placement of a downspout flange or bypass flange . The guide hole of the tool must be perpendicular to the axis of the tube to be drilled.


Valid for flanges of the 90240 and 90246 series of the Aignep brand.







Characteristics:

  • Manufacturer: Aignep
  • Reference: 90242 32
  • Series: Infinity
  • Pipe diameter: 32mm
  • Material: Nickel-plated brass
  • Application: Compressed air, vacuum, inert gas (nitrogen, argon)
  • Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
  • Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
  • All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)
















Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Flange for downpipes diameter 63 downpipe 20mm Aignep | ADAJUSA | price
Flanges and branches for downpipes for compressed air installations

Flange for downspout diameter 63mm downspout 20mm - Aignep

Aignep
90240 63 20
€51.39 (€41.78 tax excl.)
Flange for downspouts or derivation flange for pipe with outside diameter 63mm and for downspout with diameter 20mm, body and nut made of nickel-plated brass. Flange with anti-condensation system for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Its internal...
Flange for downpipes diameter 63 female downpipe 1/2 Aignep | ADAJUSA | price
Flanges and branches for downpipes for compressed air installations

Flange for downspout diameter 63mm female downpipe 1/2 - Aignep

Aignep
902466312
€47.44 (€38.57 tax excl.)
Flange for downspouts or bypass flange for 63mm outer diameter pipe and for downpipes with 1/2 cylindrical female thread, body and nut made of nickel-plated brass. Flange with anti-condensation system for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Its...
Centering tool for 40mm tube drill Aignep | ADAJUSA | price
Flanges and branches for downpipes for compressed air installations

Centering tool for 40mm tube drill - Aignep

Aignep
9024940
€35.57 (€28.92 tax excl.)
Tool or centering element for drilling holes in a 40mm outer diameter tube. This element allows the correct drilling of the tube to be carried out quickly, easily and centered on the desired point of the tube, for the subsequent placement of a flange for downspout or bypass flange for the 90247 series of the Aignep brand. Reference: 90249 40...
Socket for intermediate connection diameter 50 female downpipe 1 Sicomat | ADAJUSA | price Socket for intermediate connection diameter 50 female downpipe 1 Sicomat | ADAJUSA | price 2
Flanges and branches for downpipes for compressed air installations

Socket for intermediate connection diameter 50mm female downpipe 1 - Sicomat

Sicomat
R208.050.063
€57.83 (€47.02 tax excl.)
Air intake for branches and intermediate connections, for 50mm outer diameter tube and for downpipe with 1 cylindrical female thread. Branch with anti-condensation system for creating downpipes in compressed air, vacuum and inert gas networks and installations. Its internal design allows the use of air without any type of condensate, which remains in the...
Derivation socket diameter 50mm thread 1/2 Sicomat | ADAJUSA | price Derivation socket diameter 50mm thread 1/2 Sicomat | ADAJUSA | price 2
Flanges and branches for downpipes for compressed air installations

Derivation flange diameter 50mm female downspout 1/2 - Sicomat

Sicomat
QSB5012
€18.35 (€14.92 tax excl.)
Flange for downspouts or bypass flange for 50mm outer diameter pipe and for downpipes with 1/2 cylindrical female thread. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: QSB5012 Representative image for illustrative purposes, the...
Derivation socket diameter 32mm thread 1/2 Sicomat | ADAJUSA | price Derivation socket diameter 32mm thread 1/2 Sicomat | ADAJUSA | price 2
Flanges and branches for downpipes for compressed air installations

Derivation flange diameter 32mm female downpipe 1/2 - Sicomat

Sicomat
QSB3212
€10.57 (€8.59 tax excl.)
Flange for downspouts or bypass flange for 32mm outer diameter pipe and for downpipes with 1/2 cylindrical female thread. simple flange for creating downpipes in already finished compressed air, vacuum and inert gas networks and installations without having to dismantle them. Reference: QSB3212 Representative image for illustrative purposes, the item...
Derivation socket diameter 32mm thread 3/4 Sicomat | ADAJUSA | price Derivation socket diameter 32mm thread 3/4 Sicomat | ADAJUSA | price 2
Flanges and branches for downpipes for compressed air installations

Derivation flange diameter 32mm female downpipe 3/4 - Sicomat

Sicomat
QSB3234
€10.57 (€8.59 tax excl.)
Flange for downspouts or bypass flange for 32mm outer diameter pipe and for downpipes with 3/4 cylindrical female thread. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: QSB3234 Representative image for illustrative purposes, the...
Centering tool for 63mm tube drill Aignep | ADAJUSA | price
Flanges and branches for downpipes for compressed air installations

Centering tool for 63mm tube drill - Aignep

Aignep
9024963
€53.32 (€43.35 tax excl.)
Tool or centering element for drilling holes in a 63mm outer diameter tube. This element allows the correct drilling of the tube to be carried out quickly, easily and centered on the desired point of the tube, for the subsequent placement of a flange for downspout or bypass flange for the 90247 series of the Aignep brand. Reference: 90249 63...
Downpipe flange diameter 40 female downpipe 1/2 Aignep | ADAJUSA | price
Flanges and branches for downpipes for compressed air installations

simple flange for downpipe diameter 40mm female downspout 1/2 - Aignep

Aignep
902474012
€40.34 (€32.80 tax excl.)
Flange for downspouts or bypass flange for 40mm outer diameter pipe and for downspouts with 1/2 cylindrical female thread, body and nut made of nickel-plated brass. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: 90247 40 1/2...
Derivation socket diameter 20mm thread 1/2 Sicomat | ADAJUSA | price Derivation socket diameter 20mm thread 1/2 Sicomat | ADAJUSA | price 2
Flanges and branches for downpipes for compressed air installations

Derivation flange diameter 20mm female downpipe 1/2 - Sicomat

Sicomat
QSB2012
€10.57 (€8.59 tax excl.)
Flange for downspouts or bypass flange for 20mm outer diameter pipe and for downpipes with 1/2 cylindrical female thread. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: QSB2012 Representative image for illustrative purposes, the...
Socket for intermediate connection diameter 25 female downspout 1/2 Sicomat | ADAJUSA | price Socket for intermediate connection diameter 25 female downspout 1/2 Sicomat | ADAJUSA | price 2
Flanges and branches for downpipes for compressed air installations

Socket for intermediate connection diameter 25mm female downspout 1/2 - Sicomat

Sicomat
R259.025.000
€23.89 (€19.42 tax excl.)
Air intake for branches and intermediate connections, for 25mm outer diameter tube and for downspout with 1/2 cylindrical female thread. Branch with anti-condensation system for creating downpipes in compressed air, vacuum and inert gas networks and installations. Its internal design allows the use of air without any type of condensate, which remains in...
Derivation socket diameter 40mm thread 1/2 Sicomat | ADAJUSA | price Derivation socket diameter 40mm thread 1/2 Sicomat | ADAJUSA | price 2
Flanges and branches for downpipes for compressed air installations

Derivation flange diameter 40mm female downpipe 1/2 - Sicomat

Sicomat
QSB4012
€16.59 (€13.49 tax excl.)
Flange for downspouts or bypass flange for 40mm outer diameter pipe and for downpipes with 1/2 cylindrical female thread. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: QSB4012 Representative image for illustrative purposes, the...
Centering tool for 50mm tube drill Aignep | ADAJUSA | price
Flanges and branches for downpipes for compressed air installations

Centering tool for 50mm tube drill - Aignep

Aignep
9024250
€49.97 (€40.63 tax excl.)
Tool or centering element for drilling holes in a 50mm outer diameter tube. This element allows the correct drilling of the tube to be carried out quickly, easily and centered on the desired point of the tube, for the subsequent placement of a flange for downspout or bypass flange of the 90240 and 90246 series from the Aignep brand. Reference: 90242 50...

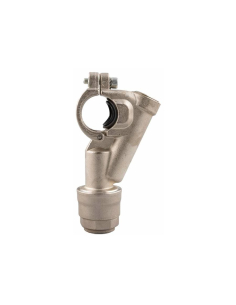

Flange for downpipes diameter 50 downspout 25mm Aignep | ADAJUSA | price
Flanges and branches for downpipes for compressed air installations

Flange for downspout diameter 50mm downspout 25mm - Aignep

Aignep
90240 50 25
€50.61 (€41.15 tax excl.)
Flange for downspouts or diversion flange for 50mm outer diameter pipe and 25mm diameter downpipe, body and nut made of nickel-plated brass. Flange with anti-condensation system for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Its internal design allows the...

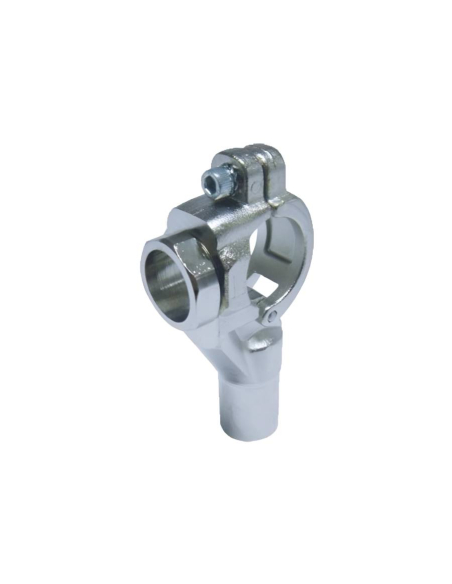

Centering tool for 32mm tube drill Aignep | ADAJUSA | price
