Centering tool for 32mm tube drill - Aignep

Name: Centering tool for 32mm tube drill - Aignep
Brand: Aignep
SKU: 9024932
Price: 35.52 EUR
Availability: BackOrder

€35.52 Tax included

28.88 tax excl.

9024932

Tool or centering element for drilling holes in a 32mm outer diameter tube. This element allows the correct drilling of the tube to be carried out quickly, easily and centered on the desired point of the tube, for the subsequent placement of a flange for downspout or bypass flange for the 90247 series of the Aignep brand.

Reference: 90249 32

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Tool or element for drilling holes in a 32mm outer diameter tube. This type of element allows you to easily drill the tube at the desired point for the subsequent placement of a downspout flange or bypass flange . The guide hole of the tool must be perpendicular to the axis of the tube to be drilled.

Valid for Aignep brand 90247 series flanges.

Characteristics:

Manufacturer: Aignep
Reference: 90249 32
Series: Infinity
Pipe diameter: 32mm
Material: Nickel-plated brass
Application: Compressed air, vacuum, inert gas (nitrogen, argon)
Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

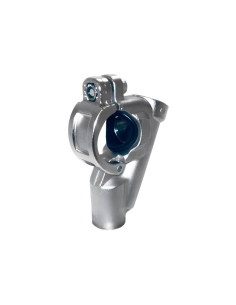

Flange for downpipes diameter 40 female downpipe 1/2 Aignep | ADAJUSA | price

Flanges and branches for downpipes for compressed air installations

Flange for downspout diameter 40mm female downspout 1/2 - Aignep

Aignep

902464012

€52.42 (€42.62 tax excl.)

Flange for downspouts or bypass flange for 40mm outer diameter pipe and for downpipes with 1/2 cylindrical female thread, body and nut made of nickel-plated brass. Flange with anti-condensation system for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Its...

Derivation socket diameter 32mm thread 3/4 Sicomat | ADAJUSA | price

Derivation socket diameter 32mm thread 3/4 Sicomat | ADAJUSA | price 2

Flanges and branches for downpipes for compressed air installations

Derivation flange diameter 32mm female downpipe 3/4 - Sicomat

Sicomat

QSB3234

€10.57 (€8.59 tax excl.)

Flange for downspouts or bypass flange for 32mm outer diameter pipe and for downpipes with 3/4 cylindrical female thread. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: QSB3234 Representative image for illustrative purposes, the...

Flange for downpipes diameter 32 downspout 20mm Aignep | ADAJUSA | price

Flanges and branches for downpipes for compressed air installations

Flange for downspout diameter 32mm downspout 20mm - Aignep

Aignep

90240 32 20

€48.28 (€39.25 tax excl.)

Flange for downspouts or bypass flange for 32mm outer diameter pipe and 20mm diameter downpipe, body and nut made of nickel-plated brass. Flange with anti-condensation system for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them.Its internal design allows the use of...

Derivation socket diameter 25mm thread 1/2 Sicomat | ADAJUSA | price

Derivation socket diameter 25mm thread 1/2 Sicomat | ADAJUSA | price 2

Flanges and branches for downpipes for compressed air installations

Derivation flange diameter 25mm female downpipe 1/2 - Sicomat

Sicomat

QSB2512

€10.57 (€8.59 tax excl.)

Flange for downspouts or bypass flange for 25mm outer diameter pipe and for downpipes with 1/2 cylindrical female thread. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: QSB2512 Representative image for illustrative purposes, the...

Flanges and branches for downpipes for compressed air installations

Centering tool for 50mm tube drill - Aignep

Aignep

9024950

€51.14 (€41.58 tax excl.)

Tool or centering element for drilling holes in a 50mm outer diameter tube. This element allows the correct drilling of the tube to be carried out quickly, easily and centered on the desired point of the tube, for the subsequent placement of a flange for downspout or bypass flange for the 90247 series of the Aignep brand. Reference: 90249 50...

Derivation socket diameter 25mm thread 3/4 Sicomat | ADAJUSA | price

Derivation socket diameter 25mm thread 3/4 Sicomat | ADAJUSA | price 2

Flanges and branches for downpipes for compressed air installations

Derivation flange diameter 25mm female downpipe 3/4 - Sicomat

Sicomat

QSB2534

€10.57 (€8.59 tax excl.)

Flange for downspouts or bypass flange for 25mm outer diameter pipe and for downpipes with 3/4 cylindrical female thread. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: QSB2534 Representative image for illustrative purposes, the...

Milling cutter for downpipe flange 50-63mm 90241 - Aignep | ADAJUSA | price

Supplies and tools

Milling cutter for drill diameters 50, 63mm

Aignep

9024100002

€83.36 (€67.77 tax excl.)

Milling cutter for drilling aluminum tubes, allows you to make drills with diameters of 50 and 63mm. Reference: 9024100002 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Derivation socket diameter 50mm thread 1/2 Sicomat | ADAJUSA | price

Derivation socket diameter 50mm thread 1/2 Sicomat | ADAJUSA | price 2

Flanges and branches for downpipes for compressed air installations

Derivation flange diameter 50mm female downspout 1/2 - Sicomat

Sicomat

QSB5012

€18.35 (€14.92 tax excl.)

Flange for downspouts or bypass flange for 50mm outer diameter pipe and for downpipes with 1/2 cylindrical female thread. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: QSB5012 Representative image for illustrative purposes, the...

Derivation socket diameter 50mm thread 3/4 Sicomat | ADAJUSA | price

Derivation socket diameter 50mm thread 3/4 Sicomat | ADAJUSA | price 2

Flanges and branches for downpipes for compressed air installations

Derivation flange diameter 50mm female downpipe 3/4 - Sicomat

Sicomat

QSB5034

€18.35 (€14.92 tax excl.)

Flange for downspouts or bypass flange for 50mm outer diameter pipe and for downpipes with 3/4 cylindrical female thread. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: QSB5034 Representative image for illustrative purposes, the...

Flange for downpipes diameter 40 downspout 25mm Aignep | ADAJUSA | price

Flanges and branches for downpipes for compressed air installations

Flange for downspout diameter 40mm downspout 25mm - Aignep

Aignep

90240 40 25

€60.05 (€48.82 tax excl.)

Flange for downspouts or diversion flange for 40mm outer diameter pipe and 25mm diameter downspout, body and nut made of nickel-plated brass. Flange with anti-condensation system for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Its internal design allows the...

Socket for intermediate connection diameter 63 female downpipe 1 Sicomat | ADAJUSA | price

Socket for intermediate connection diameter 63 female downpipe 1 Sicomat | ADAJUSA | price 2

Flanges and branches for downpipes for compressed air installations

Socket for intermediate connection diameter 63mm female downpipe 1 - Sicomat

Sicomat

R208.063.063

€57.83 (€47.02 tax excl.)

Air intake for branches and intermediate connections, for 63mm outer diameter tube and for downpipe with 1 cylindrical female thread. Branch with anti-condensation system for creating downpipes in compressed air, vacuum and inert gas networks and installations. Its internal design allows the use of air without any type of condensate, which remains in the...

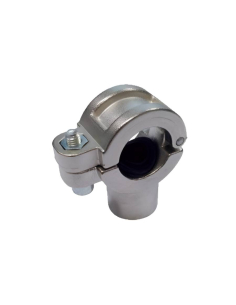

Downpipe flange diameter 50 female downpipe 1/2 Aignep | ADAJUSA | price
