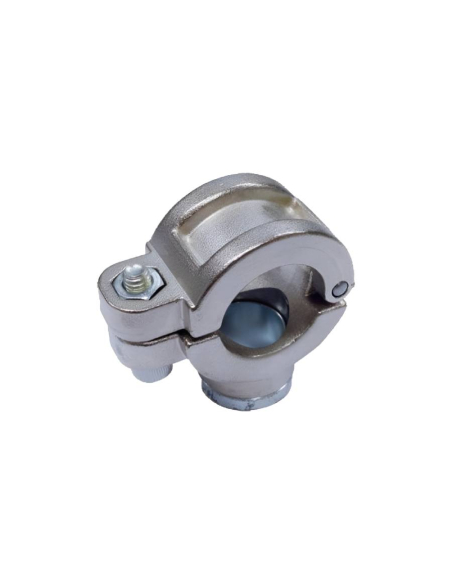

Centering tool for 40mm tube drill - Aignep

Name: Centering tool for 40mm tube drill - Aignep
Brand: Aignep
SKU: 9024940
Price: 34.0978 EUR
Availability: InStock

€34.10 Tax included

€28.18 tax excl.

Tool or centering element for drilling holes in a 40mm outer diameter tube. This element allows the correct drilling of the tube to be carried out quickly, easily and centered on the desired point of the tube, for the subsequent placement of a flange for downspout or bypass flange for the 90247 series of the Aignep brand.

Reference: 90249 40

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Tool or element for drilling holes in a 40mm outer diameter tube. This type of element allows you to easily drill the tube at the desired point for the subsequent placement of a downspout flange or bypass flange . The guide hole of the tool must be perpendicular to the axis of the tube to be drilled.

Valid for Aignep brand 90247 series flanges.

Characteristics:

Manufacturer: Aignep
Reference: 90249 40
Series: Infinity
Pipe diameter: 40mm
Material: Nickel-plated brass
Application: Compressed air, vacuum, inert gas (nitrogen, argon)
Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Flanges and branches for downpipes for compressed air installations

simple flange for downpipe diameter 32mm female downspout 1/2 - Aignep

Aignep

902473212

€27.83 (€23.00 tax excl.)

Flange for downspouts or bypass flange for 32mm outer diameter pipe and for downspouts with 1/2 cylindrical female thread, body and nut made of nickel-plated brass. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: 90247 32 1/2...

Flanges and branches for downpipes for compressed air installations

Flange for downspout diameter 50mm downspout 20mm - Aignep

Aignep

90240 50 20

€53.89 (€44.54 tax excl.)

Flange for downspouts or diversion flange for 50mm outer diameter pipe and 20mm diameter downspout, body and nut made of nickel-plated brass. Flange with anti-condensation system for creating downpipes in already finished compressed air, vacuum and inert gas networks and installations without having to dismantle them. Its internal design allows the use of...

Flanges and branches for downpipes for compressed air installations

Centering tool for 63mm tube drill - Aignep

Aignep

9024963

€51.10 (€42.23 tax excl.)

Tool or centering element for drilling holes in a 63mm outer diameter tube. This element allows the correct drilling of the tube to be carried out quickly, easily and centered on the desired point of the tube, for the subsequent placement of a flange for downspout or bypass flange for the 90247 series of the Aignep brand. Reference: 90249 63...

Flanges and branches for downpipes for compressed air installations

Derivation flange diameter 50mm female downspout 1/2 - Sicomat

Sicomat

QSB5012

€15.58 (€12.88 tax excl.)

Flange for downspouts or bypass flange for 50mm outer diameter pipe and for downpipes with 1/2 cylindrical female thread. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: QSB5012 Representative image for illustrative purposes, the...

Supplies and tools

Drill bit diameter 25mm

Aignep

9024100003

€55.94 (€46.23 tax excl.)

Milling cutter for drilling aluminum tubes, allows you to make 25mm diameter drills. Reference: 9024100003 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Flanges and branches for downpipes for compressed air installations

Flange for downspout diameter 40mm female downspout 1/2 - Aignep

Aignep

902464012

€39.75 (€32.85 tax excl.)

Flange for downspouts or bypass flange for 40mm outer diameter pipe and for downpipes with 1/2 cylindrical female thread, body and nut made of nickel-plated brass. Flange with anti-condensation system for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Its...

Flanges and branches for downpipes for compressed air installations

Flange for downspout diameter 50mm downspout 25mm - Aignep

Aignep

90240 50 25

€48.50 (€40.08 tax excl.)

Flange for downspouts or diversion flange for 50mm outer diameter pipe and 25mm diameter downpipe, body and nut made of nickel-plated brass. Flange with anti-condensation system for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Its internal design allows the...

Flanges and branches for downpipes for compressed air installations

Derivation flange diameter 20mm female downpipe 1/2 - Sicomat

Sicomat

QSB2012

€8.97 (€7.41 tax excl.)

Flange for downspouts or bypass flange for 20mm outer diameter pipe and for downpipes with 1/2 cylindrical female thread. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: QSB2012 Representative image for illustrative purposes, the...

Flanges and branches for downpipes for compressed air installations

Derivation flange diameter 50mm female downpipe 3/4 - Sicomat

Sicomat

QSB5034

€15.58 (€12.88 tax excl.)

Flange for downspouts or bypass flange for 50mm outer diameter pipe and for downpipes with 3/4 cylindrical female thread. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them. Reference: QSB5034 Representative image for illustrative purposes, the...

Flanges and branches for downpipes for compressed air installations

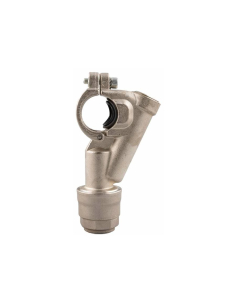

Flange for downspout diameter 63mm downspout 25mm - Aignep
