Hall magnetic sensor PNP 2 wires connector and cable - Aignep

€45.63 Tax included

37.1 tax excl.

DSM3N225

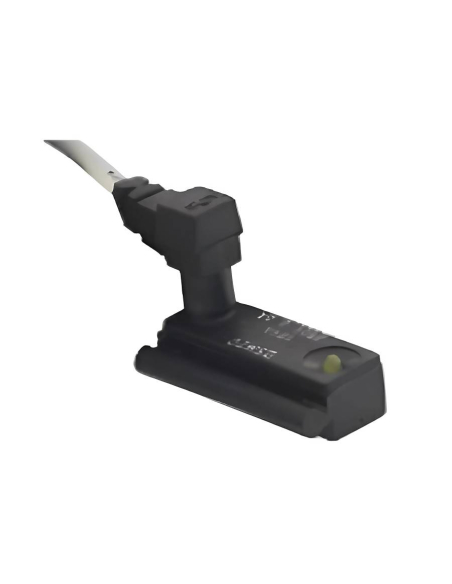

PNP hall contact magnetic proximity sensor with 2-wire cable and connector included, operating range 3 - 30 V, cable length 2.5 m facilitating flexible installation. This sensor is ideal for applications requiring position monitoring in pneumatic systems, such as in industrial automation and process control.

Valid for mounting on ISO cylinders of the L series of the Aignep brand.

Series: Sensors
Reference: DSM3N225

Aignep logoDSMHALL_SCHEMA

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


PNP hall contact magnetic proximity sensor with 2-wire cable and connector included, operating range 3 - 30 V, cable length 2.5 m facilitating flexible installation. This sensor is ideal for applications requiring position monitoring in pneumatic systems, such as in industrial automation and process control.

This sensor allows precise monitoring of the piston position inside pneumatic cylinders, ensuring efficient operation in industrial applications.



Features of magnetic detector:

  • Manufacturer: Aignep
  • Manufacturer reference: DSM3N225
  • Contact type: hall PNP
  • AC/DC voltage max:6-30V
  • Max current at 25C: 0.2 Amp
  • Power with inductive load: 4VA
  • Power with resistive load: 6W
  • Connection time: 0.8μsec
  • Disconnection time: 0.3μsec
  • Connection point: 30 Gauss
  • Disconnection point: 25 Gauss
  • Electrical life: 10000000000 impulses
  • Cable length: 25000 mm
  • Operating temperature: -20 C + 85 C
  • IP67 protection



DSM2C525_DRAWING




Professional use material, install in compliance with the regulations in force at the installation site.
