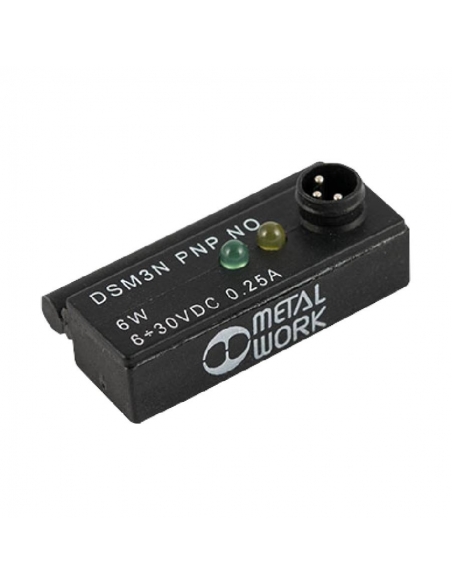

Magnetic sensor PNP (3 wires) with connector and cable - Metal Work

Magnetic detector with sensor E. HALL PNP DSM3-N225 - Metal Work

Name: Magnetic detector with sensor E. HALL PNP DSM3-N225 - Metal Work
Brand: Metal Work
SKU: W0950000222
Price: 60.91 EUR
Availability: InStock

€60.91 Tax included

€49.52 tax excl.

W0950000222

Sensor detector magnético con cable y conector incluido 3 hilos.

Referencia: W0950000222

Diagrama electrico detector mágnetico
Logotipo Metal Work

Imagen representativa para fines ilustrativos, el artículo suministrado corresponderá a las especificaciones indicadas.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Magnetic detector sensor with cable and connector included for mounting on pneumatic cylinders. PNP type 3 wires protected by varistor.

Valid for different manufacturers such as Metal Work, Pneumax, Aignep.

The supply includes:

Sensor with connector.
Cable with connector.

ATTENTION: The sensor holder is not included.

Technical characteristics.

Manufacturer: Metalwork
Manufacturer reference: W0950000222
Contact type: HALL effect NO
Alternating current supply voltage (Vac): 6 ÷ 30.
Resistive load power (W): 6
Voltage drop (V):
mA output current: 250
Change frequency (Hz): >2000
With reverse polarity protection
EMC: EN 60 947-5-2
Degree of protection (EN 62592): IP 67
Connection cable 2.5 m: PVP; ^3X0.25mm2
Wire NO.: 3

dimensions-magnetic-detector-with-connector

connection-magnetic-detector-with-connector

dimensions-sensor-holder-32-40

dimensions-sensor-holder-50-63

dimensions-sensor-holder-diameter-80-100 Material for professional use, install in compliance with the regulations in force at the place of installation.
