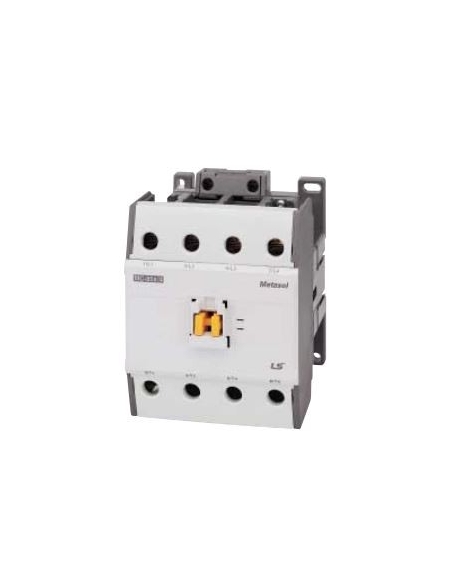

Tetrapolar contactor 80A coil 230Vac - LS
Tetrapolar contactor 80A coil 230Vac - LS

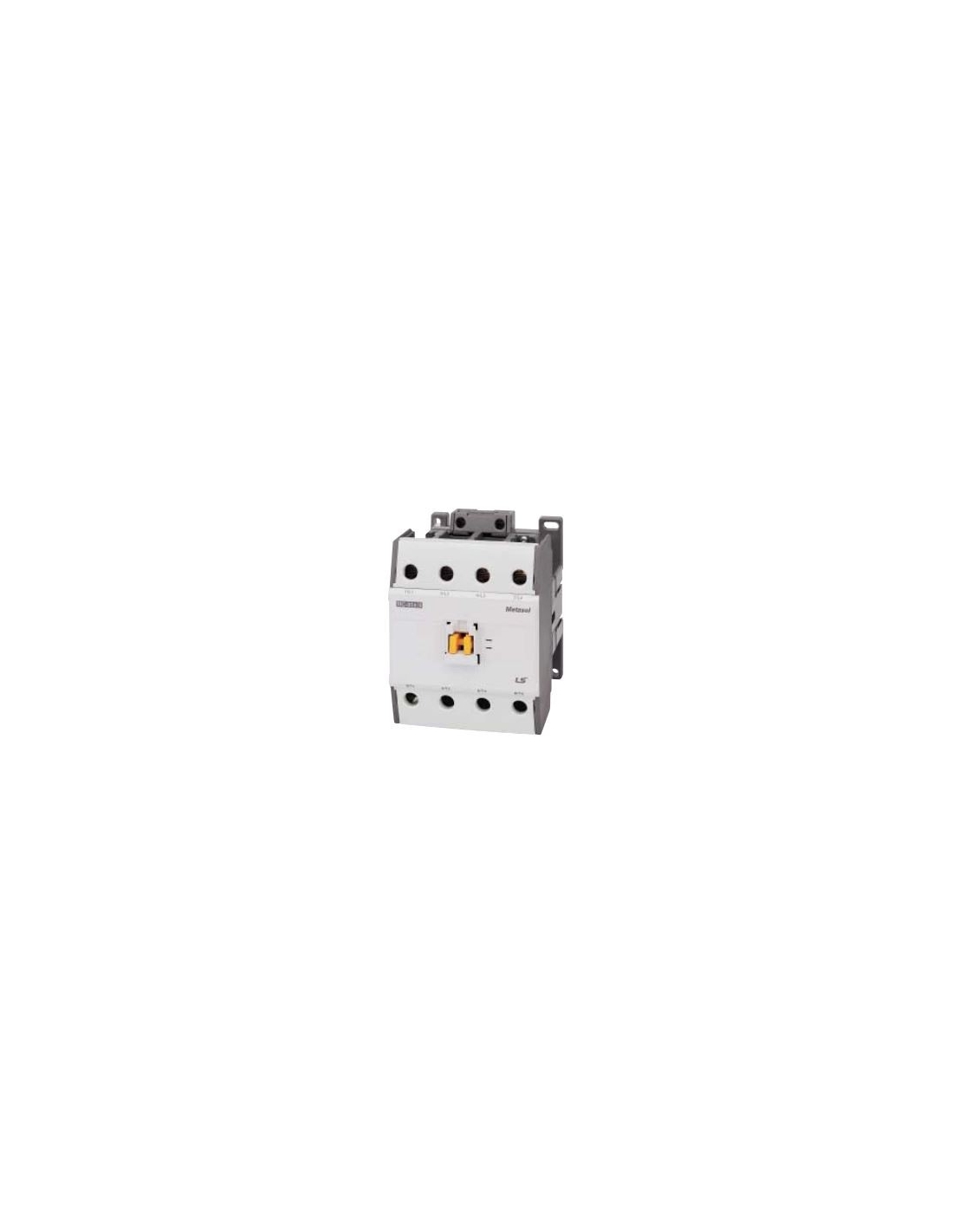

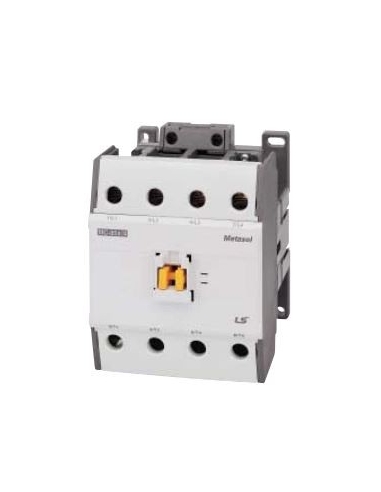

Four-pole contactor 80A coil 230Vac - LS

€143.16 Tax included

116.39 tax excl.

97MC50A230A4P

Four-pole contactor equipped with high-capacity contacts for controlling electrical systems, generating sets, or general uses, 4-pole with a current capacity of 80A in AC1 or 50A in AC3, with 230Vac coil.

Maximum power AC1 (400Vac): 56kW.

Reference: MC-50a/4 AC230V 50/60HZ

4-pole contactor electrical diagram

LS logo LG industrial Systems

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


Four-pole contactor (4 poles) of 80A in category AC1 or 50A in category AC3, the contactor is equipped with highly robust main contacts, suitable for demanding applications for controlling electrical systems, generator sets and general use. The contactor can be fixed using screws or by DIN rail.

Technical characteristics:

  • Manufacturer: LS (LG).
  • Contactor reference: MC-50a/4 AC230V 50/60Hz.
  • Maximum operating voltage: 690Vac.
  • Coil voltage: 230Vac.
  • number of contactor poles: 4.
  • Rated current for contactor in AC3: 50A.
  • Rated current for contactor in AC1: 80A.
  • Maximum power (kW) 380-400Vac: 56kW.
  • Maximum power (kW) 220-230Vac: 30kW.
  • Maximum peak voltage (Uimp): 6kV.
  • Maximum number of operations per hour: 1800.
  • Mechanical durability: 12.000.000 cycles.
  • Electrical durability: 1.000.000 cycles.
  • Weight: 1.2 kg.
  • Dimensions: 91x123.5x117.8 mm.

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
Tienen enclavamiento mecánico para complementar este contactores magnético tetrapolar de 80A???
Answer

Buenos días,

En stock no estan disponibles, pero si estan en catálogo. Durante el mesx de Agosto no podemos cursar pedidos de material que no este en stock,

A partir de Septiembre si podemos atender su peditición, con el plazo de entrega que nos confirme el proveedor.

Saludos

Gustavo on 08/10/2018 15:08:15

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)
