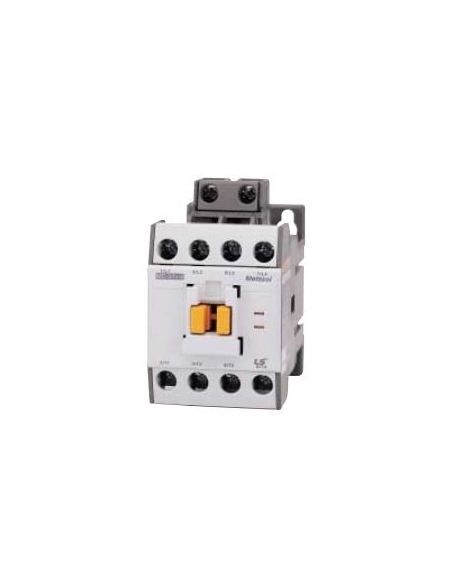

Tetrapolar contactor 25A coil 230Vac - LS
Tetrapolar contactor 25A coil 230Vac - LS

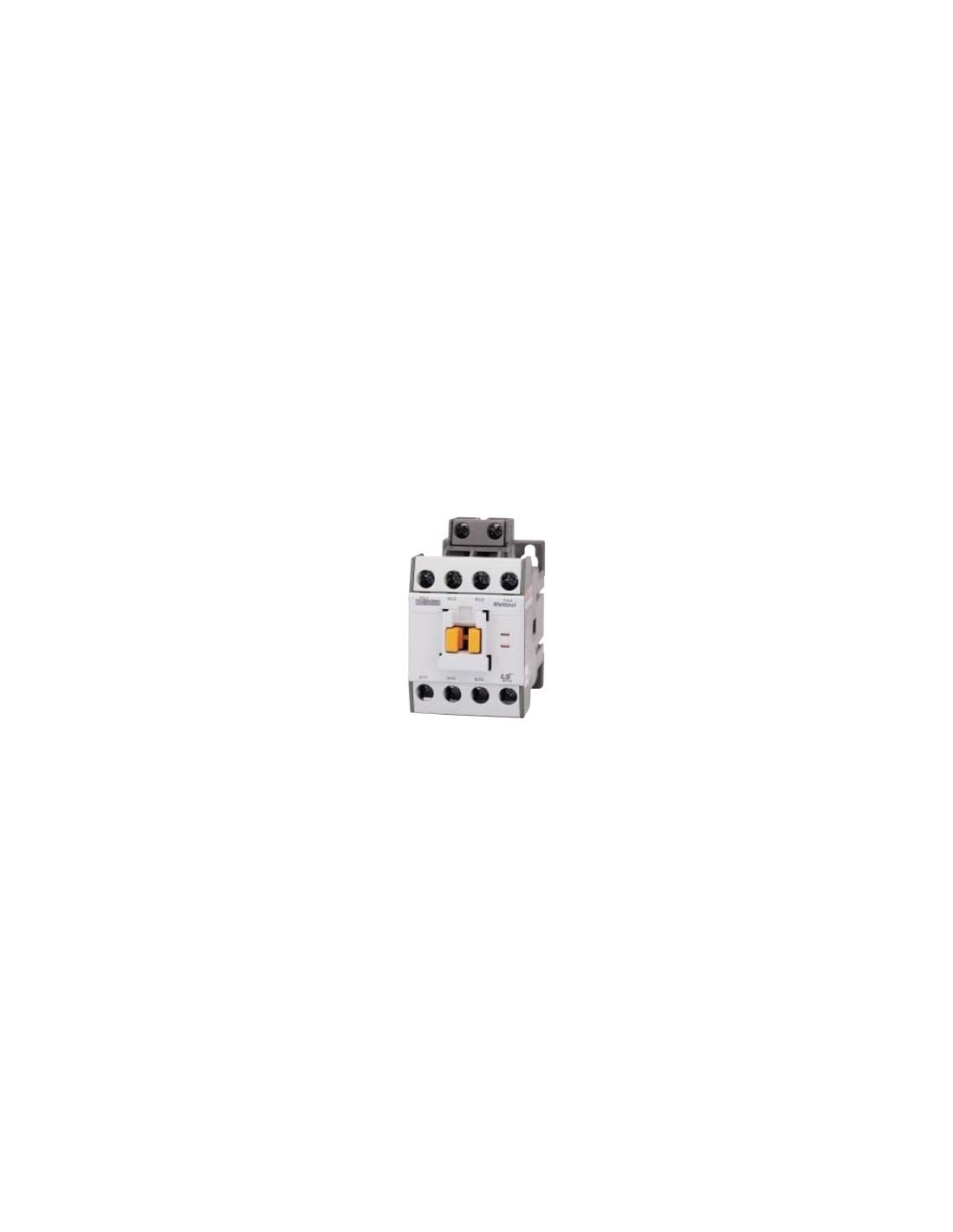

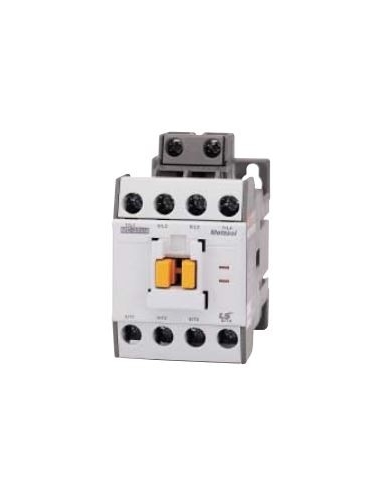

Four-pole contactor 40A coil 230Vac - LS

€39.62 Tax included

€32.21 tax excl.

97MC18A230A4P

Four-pole contactor equipped with high-capacity contacts for controlling electrical systems, generating sets, or general uses, 4-pole with a current capacity of 40A in AC1 or 18A in AC3, with 230Vac coil.

Maximum power AC1 (400Vac): 27kW.

Reference: MC-18a/4 AC230V 50/60HZ

4-pole contactor electrical diagram

LS logo LG industrial Systems

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


Four-pole contactor (4 poles) of 40A in category AC1 or 18A in category AC3, the contactor is equipped with highly robust main contacts, suitable for demanding applications for controlling electrical systems, generating sets and general use. The contactor can be fixed using screws or by DIN rail.

Technical characteristics:

  • Manufacturer: LS (LG).
  • Contactor reference: MC-18a/4 AC230V 50/60Hz.
  • Maximum operating voltage: 690Vac.
  • Coil voltage: 230Vac.
  • number of contactor poles: 4.
  • Rated current for contactor in AC3: 18A.
  • Rated current for the contactor in AC1: 40A.
  • Maximum power (kW) 380-400Vac: 27kW.
  • Maximum power (kW) 220-230Vac: 15kW.
  • Maximum peak voltage (Uimp): 6kV.
  • Maximum number of operations per hour: 1800.
  • Mechanical durability: 15.000.000 cycles.
  • Electrical durability: 800,000 cycles.
  • Weight: 0.33 kg.
  • Dimensions: 45x73.5x79 mm.

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
Se puede añadir contactos auiliares
Answer

Buenos días,

Esta serie de contactores si se le puede añadir contactos auxiliares laterales, pero usted no estan colocados para su venta online.

El precio de la camará con 2 contactos laterales (NA+NC) es de 6,08+IVA, y el plazo de entrega se incrementará en 2 días.

Si usted esta interesado en realizar el pedido, indiquelo para crear un enlace y que usted pueda añadir el producto a su carrito.

Saludos

Felix on 01/05/2018 00:46:41
