Tetrapolar connection delivery man 7 outputs

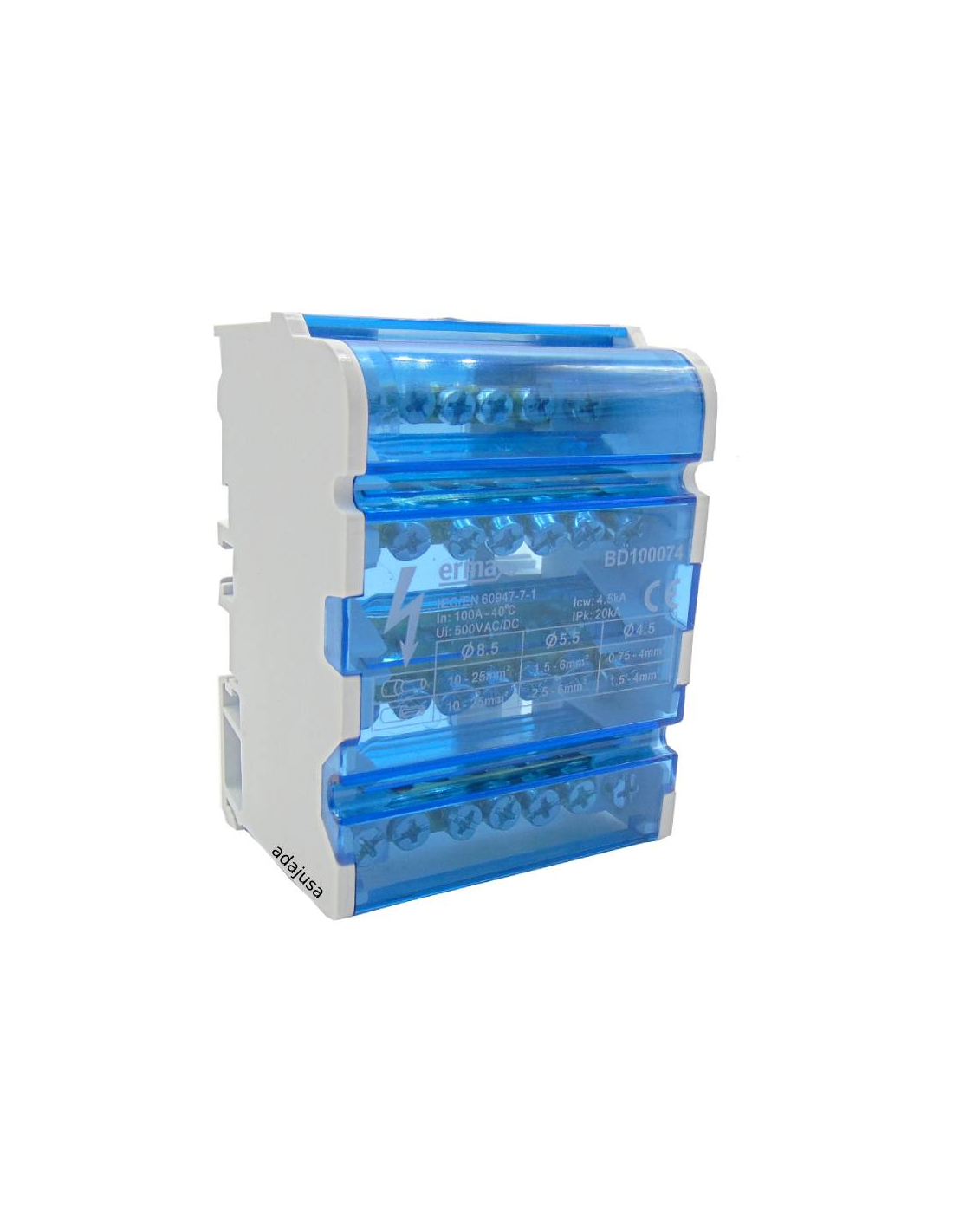

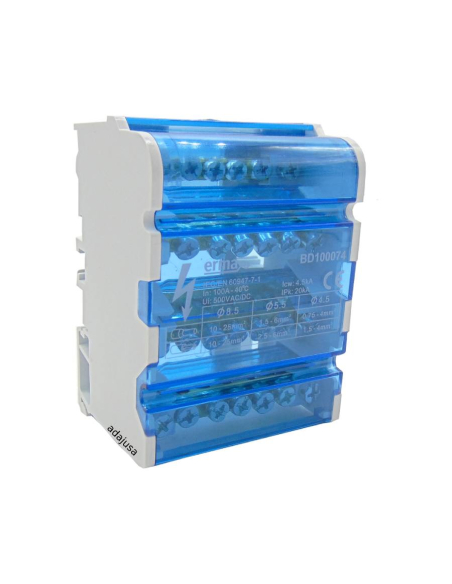

Four-pole distribution switch 6 outputs 100A

Name: Four-pole distribution switch 6 outputs 100A
Brand: ErMa
SKU: BD100074
Price: 12.66 EUR
Availability: InStock

€12.66 Tax included

10.29 tax excl.

BD100074

Four-pole (3 poles + neutral) electrical distribution board with 6 outputs and 1 input, suitable for currents up to 100A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size.

Part number: BD100074

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

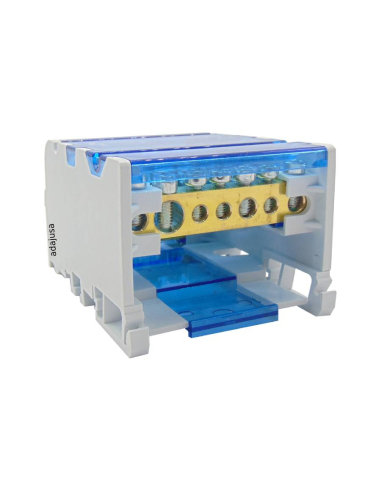

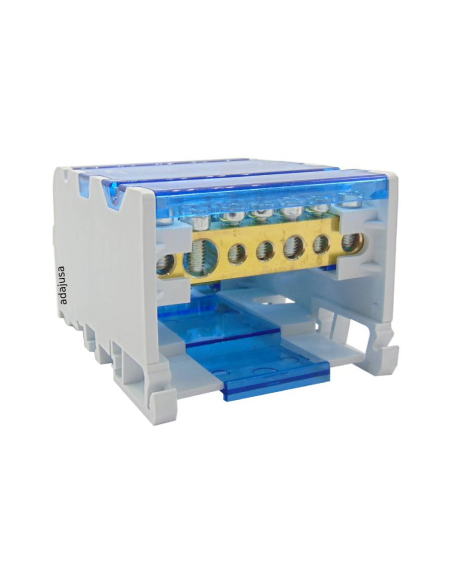

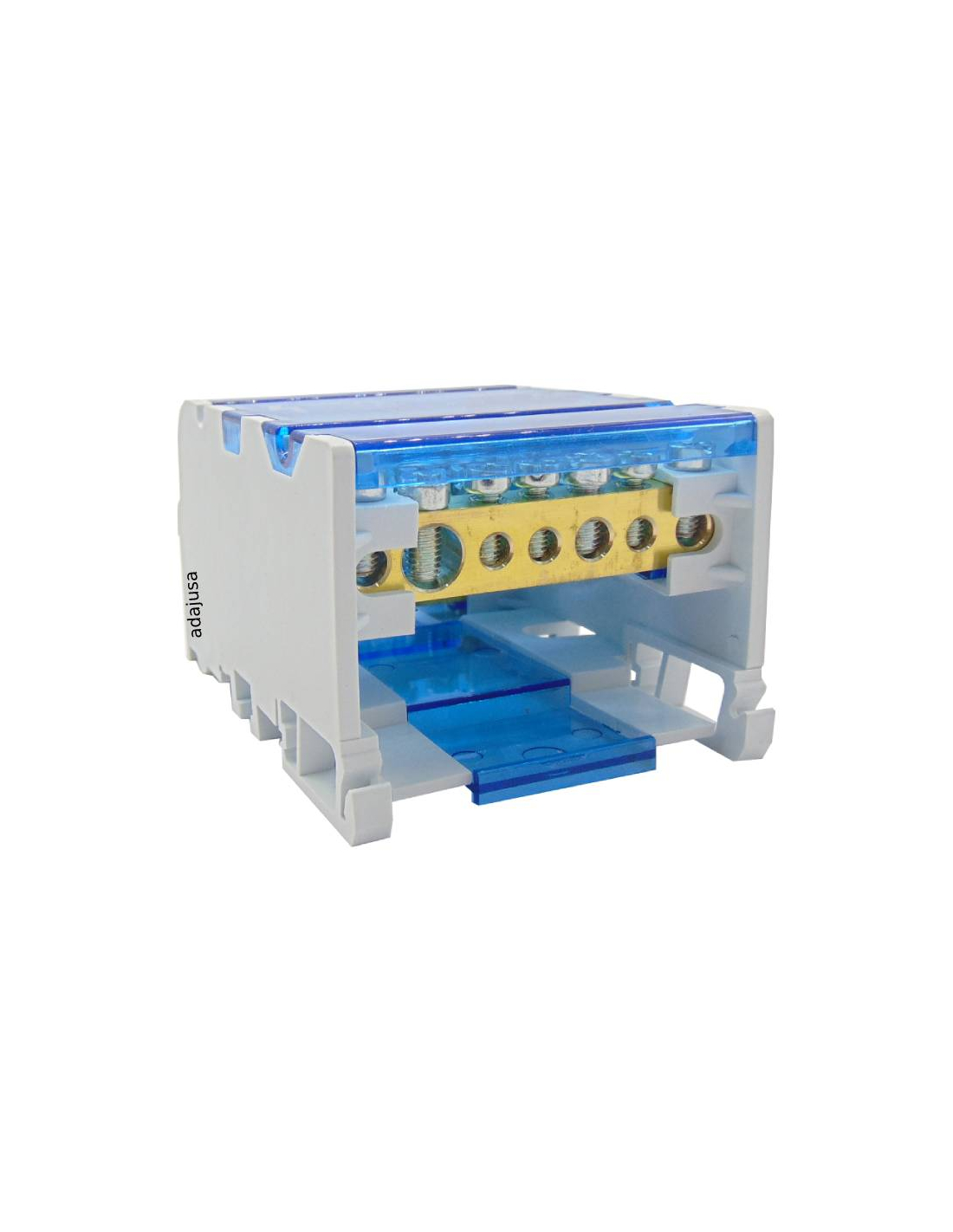

Four-pole electrical connection splitter with 7 outlets and 1 inlet, for use in electrical distribution cabinets to facilitate wiring and improve electrical load distribution and wiring.

It has 4 brass distribution bars with steel screws, distributed in 2 heights and several orientations to facilitate the connection. It allows the possibility of incorporating a neutral extension bar, which is fixed to the distributor simply with a screwdriver.

Easy and fast mounting on DIN rail or screwed. The distributor is protected with a transparent polycarbonate cover.

The connection bar is equipped with:

1 Ø8.5mm inlet for 10mm² to 25mm² cables
3 outlets Ø4.5mm for cables from 0.75mm² to 4mm²
3 outlets Ø5.5mm for cables from 1.5mm² to 6mm²

Technical characteristics:

Manufacturer/Supplier: Gaestopas
Part number: BD100074
Type: Four-pole (3P+N)
Rated voltage: 500Vac/dc
Rated current: 100A
Icw: 4,5kA
Ipk: 20kA
Number of holes per busbar: 7
Holes per pole (holes x Ø mm): 1x8,5 / 3x4,5 / 3x5,5
Dimensions: 90x64x50 mm
Halogen free
UL94-V0 flammability rating
Certification: CE, ROHS
Standards: IEC 60947-7-1

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Electrical connection dealers

Grounding dealer 14 exits

Generico-GAE

992-P1614

€8.33 (€6.77 tax excl.)

Electric connection delivery unit for distribution of ground conductors, 14 holes distributed in 2 connection bars of 7 holes, in brass with steel screws and support of green polyamide. Fixation on panel or DIN rail. Manufacturer's reference: P1614. Representative image for illustrative purposes, the item supplied will correspond to the indicated...

Terminal block 1 pole 125A FVKK | Adajusa

Terminal block 1 pole 125A FVKK | Adajusa 2

Electrical connection dealers

1-pole connection distributor 125A 1000V

TRACON

FLSO50

€11.05 (€8.98 tax excl.)

1-pole electrical connection distributor suitable for intensities up to 125A, high-conductivity tinned copper contacts protected with a polycarbonate cover. Compact design. Fixing by screw or DIN rail. Inputs: 1 x 35mm 2 Outputs: 6 x 16mm 2Reference: FLSO50Representative image for illustrative purposes, the item supplied will correspond to the indicated...

Electrical connection dealers

Grounding dispatcher 11 outputs with green support

XBS

NK-11/Green

€1.83 (€1.49 tax excl.)

Electrical connection distributor for distribution of ground conductors, 11 holes, brass bar with steel screws and green polyamide support. Fixing on panel or din-rail. Manufacturer reference: NK-11 zöld Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Direct mounting terminal block 16-120mm2 10mm thick 10mm flat bar Adajusa

Connection and assembly material

Direct mounting terminal block 16-120mm2 10mm thick plate

XBS

SZK120F10

€4.82 (€3.92 tax excl.)

Direct mounting terminal block for cable cross-section 16-120mm2, thickness of the mounting block 10mm.Reference: SZK120F10Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Branch terminal 1 pole 6x16-95mm2 blue | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 6x16-95mm² Blue

TRACON

FLEAL-95/3K

€16.81 (€13.67 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors. Reference: FLEAL-95/3KRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Connection Strips - Clemas

10 mm terminal strip

TRACON

S15A-H

€1.66 (€1.35 tax excl.)

10mm², 12-pole terminal strip, made of white polypropylene. For electrical connections. Part number: S15A-H Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Branch terminal 1 pole 2x35-150mm2 gray | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 2x35-150mm² Blue

TRACON

FLEAL-150/1K

€9.58 (€7.79 tax excl.)

1-pole shunt terminal for DIN rail mounting. Suitable for connection of copper and aluminum conductors. Part No.: FLEAL-150/1KRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Double quick connection terminal 6 poles 32A OVOFT66 | ADAJUSA | price

Electrical connection dealers

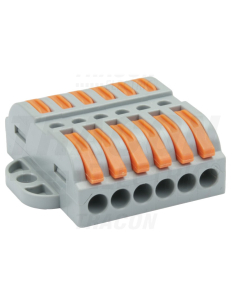

Double quick connection terminal 6-pole 32A

TRACON

OVOFT66

€2.16 (€1.76 tax excl.)

Double 6-pole quick connection terminal 32A, 400Vac for conductors from 0.5 to 4mm2 . Screwless quick connection ensures a simple and safe electrical connection. Part number: OVOFT66 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Branch terminal 1 pole 2x2.5-50mm2 gray | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 2x2.5-50mm² Gray

TRACON

FLEAL-50/1

€3.65 (€2.97 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper conductors from 2.5 to 50 mm2and aluminum conductors from 6 to 50 mm2. Gray color. Reference: FLEAL-50/1Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Tapping terminal 1-pole 4x35-240mm² Blue | Adajusa

Bypass terminals

Derivation terminal 1 pole 4x35-240mm² Blue

TRACON

FLEAL-240/2K

€29.90 (€24.31 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors. Part number: FLEAL-240/2KRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Connection Strips - Clemas

Strip 35mm

XBS

SK50/35-80A

€5.66 (€4.60 tax excl.)

Connection strip of 35mm² of 12 Poles in white, for use of intensities up to 80A, made of white polyamide. For electrical connections.Reference: SK50/35-80A

Four-pole connection distributor 15 outputs 100A Adajusa

Four-pole connection distributor 15 outputs 100A Adajusa 2

Electrical connection dealers

Four-pole 13-outlet 100A switchgear for connection to 13 outlets

ErMa

BD100154

€24.03 (€19.54 tax excl.)

Four-pole (3 poles + neutral) electrical distribution board with 13 outputs and 2 inputs, suitable for currents up to 100A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size. Part number: BD100154 Representative image for illustrative purposes, the...

Connection Strips - Clemas

4 mm terminal strip

TRACON

S5A-H

€0.93 (€0.76 tax excl.)

12-pole 4mm² terminal strip, made of white polypropylene. For electrical connections. Part number: S5A-H Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Connection Strips - Clemas

16 mm terminal strip

TRACON

S30A-H

€2.36 (€1.92 tax excl.)

Connection strip of 16mm² of 12 poles, made of white polypropylene. For electrical connections. Part number: S30A-H Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Terminal block 1 pole 500A FVKK | Adajusa

Terminal block 1 pole 500A FVKK | Adajusa 2

Electrical connection dealers

Connection distributor 1 pole 3 500A 1000V

TRACON

FLSO8x25

€35.50 (€28.86 tax excl.)

1-pole electrical connection distributor suitable for intensities up to 500A, high-conductivity tinned copper contacts protected with a polycarbonate cover. Compact design. Fixing by screw or DIN rail. Inputs: Flat conductor 8x25mm Outputs: 4 x 10mm 2 + 5 x 16mm 2 + 2 x 25mm 2 Reference: FLSO8x25 Representative image for illustrative purposes, the item...

1-pole bypass terminal 4x16-95mm2 Green/Yellow | ADAJUSA | price

Bypass terminals

Derivation terminal 1 pole 4x16-95mm² Green/Yellow

TRACON

FLEAL-95/2ZS

€11.44 (€9.30 tax excl.)

1-pole shunt terminal. Valid for connection of copper and aluminum conductors. Part No.: FLEAL-95/2ZSRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Customers who bought this product also bought:

Connection Strips - Clemas

25 mm black terminal strip

TRACON

SF60A-H

€4.18 (€3.40 tax excl.)

25mm² 12-pole terminal strip, made of black polypropylene. For electrical connections. Part number: SF60A-H Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

MCB circuit breaker 2 poles 16A OMU adajusa OMB06216C

MCB circuit breakers 2 poles

Circuit breaker 2 poles 16A curve C - OMU

OMU System

OMB06216C

€4.91 (€3.99 tax excl.)

MCB circuit breaker 2 poles 16A curve C, for protection against short circuits and overloads in single-phase or biphasic installations. With an assigned cutting power of 6000A. Active protection of both poles with individual status indication. Protects both drivers. It can be used in installations and assemblies up to 500VAC. Manufacturer's Reference:...

MCB circuit breaker 4 poles 63A OMU adajusa OMB06463C

MCB circuit breakers 4 poles

Circuit breaker 4 poles 63A curve C - OMU

OMU System

OMB06463C

€11.57 (€9.41 tax excl.)

MCB circuit breaker 4 poles 63A curve C, for protection against short circuits and overloads in three-phase installations. With an assigned cutting power of 6000A. Active protection of all poles with individual status indication. Protects both drivers. It can be used in installations and assemblies up to 500VAC. Manufacturer's Reference: OMB06463C...

Connection Strips - Clemas

Strip 35mm

XBS

SK50/35-80A

€5.66 (€4.60 tax excl.)

Connection strip of 35mm² of 12 Poles in white, for use of intensities up to 80A, made of white polyamide. For electrical connections.Reference: SK50/35-80A

Cables for electrical installations

Unipolar flexible cable roll 0.75mm black 100m

Top Cable

H05V-K-N751

€27.99 (€22.76 tax excl.)

Roll of 100m flexible cable of 0.75mm2 section, black color, specially designed for internal wiring of electrical cabinets, switch boxes and electrical appliances. Designed under CPR (EN 50575). Series: TopFlex V-K Color: Black. Section: 0.75mm2. Representative image for illustrative purposes, the item supplied will correspond to the...

Lamp holder block with integrated LED 12V - Giovenzana

Buttons

Lamp holder block with integrated LED 220V - Giovenzana

Giovenzana Internacional B.V.

GIPL0045L220

€5.17 (€4.20 tax excl.)

Portalámpara block with integrated LED of 220V, to be mounted on pushbuttons and luminous elements of the pegasus series. Connection of the cables by means of screws. The lampholder block has a 220V LED that can work with both continuous and alternating voltages. The Pegasus series are industrial control elements, manufactured in Europe by the...

Metric thread glands

Glands M12 grey polyamide with nut

XBS

XBS-M12

€0.17 (€0.14 tax excl.)

Polyamide (Nylon) glands with M12x1.5mm thread, NUT and NBR gasket included. Grey.Ref: XBS-M12 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Distribution boxes and envelopes

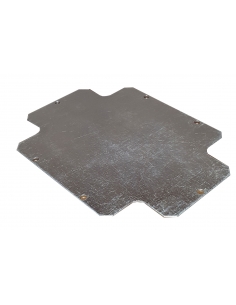

Mounting plate 190x145 for ABS boxes

TRACON

MD-SZL1

€5.69 (€4.63 tax excl.)

Metal mounting plate, for 190x145mm boxes. Made of zinc-plated sheet metal. Valid for ABS box of 190x145mm. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Ground Borna 2.5 Weidmuller WPE 2.5 adajusa.com.a

Connection terminals screw - Weidmuller

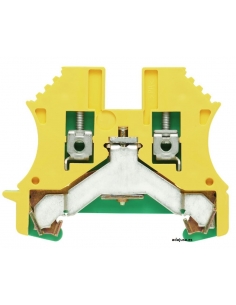

Ground terminal 16 mm WPE 16 - Weidmuller
