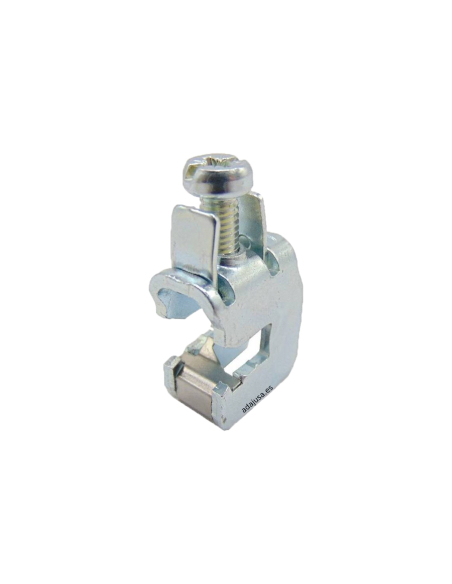

Direct mounting terminal block 16-120mm2 10mm thick 10mm flat bar Adajusa

Direct mounting terminal block 16-120mm2 10mm thick plate

Name: Direct mounting terminal block 16-120mm2 10mm thick plate
Brand: XBS
SKU: SZK120F10
Price: 4.82 EUR
Availability: InStock

€4.82 Tax included

3.92 tax excl.

SZK120F10

Direct mounting terminal block for cable cross-section ^16-120mm2, thickness of the mounting block 10mm.

Reference: SZK120F10

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Direct mounting terminal on 10mm thick copper plates, for cable cross-section between ^16-120mm2. Mounting with quick clamp type coupling. Manufactured in high quality steel, Chromium VI free. Solution for a simple and robust installation.

Easy and safe mounting on the plate thanks to the high clamping force provided by the screw, avoiding torsion thanks to its patented "Twist-Stop" mechanism and guaranteeing a fixed mounting after installation.

Features:

Manufacturer/supplier: XBS/Mixvil
Part number: SZK120F10
Cable cross section: ^16-120mm2
Allowable current: 344A
Mounting: 10mm thick plate
Standard: EN 60999
Material: High quality steel
Spring: Stainless steel

Material for professional use, must be installed by qualified personnel in compliance with the regulations in force at the place of installation

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

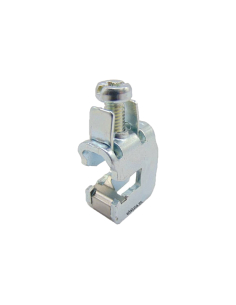

Direct mounting terminal block 1,5-16mm2 10mm thick

XBS

SZK16F10

€1.41 (€1.15 tax excl.)

Direct mounting terminal block for cables with cross section 1.5-16mm2, thickness of the mounting block 10mm.Part number: SZK16F10Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Direct mounting terminal block 1.5-35mm2 10mm thick 10mm wide strip | Adajusa

Connection and assembly material

Direct mounting terminal block 1,5-35mm2 10mm thick plate

XBS

SZK35F10

€2.24 (€1.82 tax excl.)

Direct mounting terminal block for cable cross-section 1.5-35mm2, thickness of the mounting block 10mm.Part number: SZK35F10Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Direct mounting terminal block 16-70mm2 10mm thick 10mm flat bar | Adajusa

Connection and assembly material

Direct mounting terminal block 16-70mm2 10mm thick plate

XBS

SZK70F10

€2.89 (€2.35 tax excl.)

Direct mounting terminal block for cable cross-section 16-70mm2, thickness of the mounting block 10mm.Reference: SZK70F10Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Four-pole connection distributor 13 outputs 80A Adajusa

Four-pole connection distributor 13 outputs 80A Adajusa 2

Electrical connection dealers

Four-pole distribution switch 8 outlets 80A

ErMa

BD80134

€14.23 (€11.57 tax excl.)

Four-pole (3 poles + neutral) electrical distribution board with 8 outputs and 5 inputs, suitable for currents up to 80A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size. Part number: BD80134 Representative image for illustrative purposes, the item...

Universal pliers 160mm insulation VDE 1000V | Adajusa

Universal pliers 160mm insulation VDE 1000V | Adajusa 2

Tools

Universal pliers insulated VDE 1000V 160mm

OMU System

KF-1

€14.93 (€12.14 tax excl.)

Universal use pliers with VDE 1000V insulation. Size 160mm, blackened and polished tip, insulated rubber handle. Light weight and ergonomic handle, recommended for precision electrical cutting work.Reference: KF-1 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Tubular copper terminal 50 mm2 hole 12 mm ADAJUSA

Copper terminals

50 mm2 copper tubular terminal for 12 mm hole

XBS

MSC-50/12,5

€1.03 (€0.84 tax excl.)

Tinned copper tubular terminal for 50 mm 2 section cable and 12 mm hole diameter, manufactured according to IEC 61238-1 standard. Its design guarantees easy insertion of the cable by adjusting securely around it. Reference: MSC-50 50/12.5 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Terminal signallers

Strip of 10 markers for N TSKA Series terminals

XBS

Marker N

€0.39 (€0.32 tax excl.)

Strip with 10 independent markers with "N" inscription for TSKA series terminals. Quick and easy installation, it allows you to solve marking problems in cabinets and electrical installations. Reference: Marker Strip N Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

View

Plug industrial female CEE 125A 3 Pole TICS-244| ADAJUSA : price

Plug industrial female CEE 125A 3 Pole TICS-244| ADAJUSA : price 2

Power outlets

Plug female CEE-CETAC 125A 3P+T IP-67

TRACON

TICS-244

€105.41 (€85.70 tax excl.)

Plug cEE-CETAC female type 400Vac 125A, 3 Pole + Ground (3P+T). Degree of protection IP-67. Red color.Reference: TICS-244Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

6 mm2 copper tubular terminal for 8 mm hole

Copper terminals

Copper tubular terminal 6 mm2 for 8 mm hole

XBS

MSC-6/8,2

€0.17 (€0.14 tax excl.)

Tinned copper tubular terminal for 6 mm 2 section cable and 8 mm hole diameter, manufactured according to IEC 61238-1 standard. Its design guarantees easy insertion of the cable by adjusting securely around it. Reference: MSC-6 6/8.2 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Metal gun for cable ties from 2.2 to 4.8mm TG008 | ADAJUSA | price

Herramientas para bridas

Metal tool for cable ties width 2.2 - 4.8 mm

TRACON

TG008

€19.15 (€15.57 tax excl.)

Metal tool for tensioning and cutting plastic cable ties with a width between 2.2 and 4.8 mm. It has a mechanism for regulating the tightening tension, ensuring quick and easy tensioning. Automatic cutting of the excess flange when the desired tensioning force is reached. Reference: TG008 Representative image for illustrative purposes, the item...

Branch terminal 1 pole 6x35-240mm2 Blue | ADAJUSA | price

Bypass terminals

Branch terminal 1 pole 6x35-240mm² Blue

TRACON

FLEAL-240/3K

€44.29 (€36.01 tax excl.)

1-pole branch terminal for DIN rail mounting. Valid for connecting copper conductors from 35 to 240 mm 2 and aluminum conductors from 35 to 240 mm 2 . Color blue Reference: FLEAL-240/3KRepresentative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

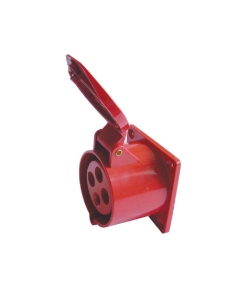

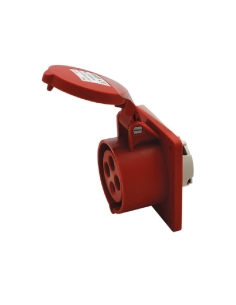

Industrial socket CEE 32A 3 Pole TICS-424| ADAJUSA | price
