Tetrapolar contactor 80A coil 230Vac - LS

Tetrapolar contactor 100A coil 230Vac - LS

Q: BUENAS TARDES ME GUSTARIA SABER SI DE ESTE CONTACTOR TENEIS EL MODULO DE CONTACTOS AUXILIARES. ES PARA PEDIR CONTACTOR CON EL MODULO.

Estimado cliente, Gracias por su consulta. Respecto al módulo de contactos auxiliares , también disponemos de modelos compatibles. Puede encontrar los accesorios auxiliares de la marca LS en la siguiente categoría: https://adajusa.es/es/788-accesorios-para-contactores-ls-electric Por favor, revise que el módulo que seleccione sea compatible con el modelo exacto del contactor antes de hacer el pedido. Todos nuestros productos están destinados a uso profesional y deben ser instalados por personal cualificado. Verifique antes de realizar el pedido que se adapta a sus necesidades. Atentamente, Adajusa www.adajusa.es

€168.84 Tax included

137.27 tax excl.

97MC65A230A4P

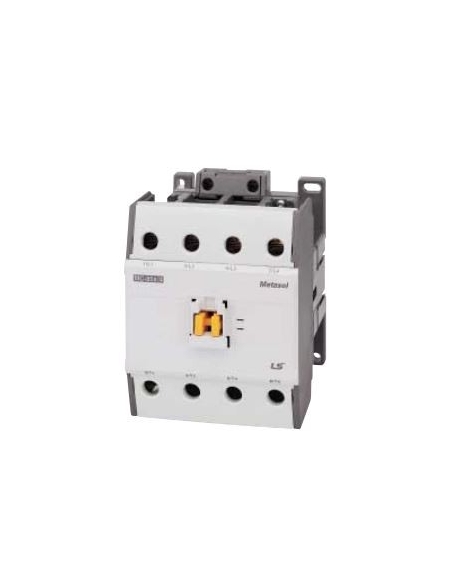

Tetrapolar contactor equipped with high capacity contacts for control of electrical systems, generator sets, or general uses, 4 poles with a current capacity of 100A in AC1 or 65A in AC3, with 230Vac coil.

Maximum power AC1 (400Vac): 70kW.

Reference: MC-65a/4 AC230V 50/60HZ

Esquema eléctrico contactor 4 polos

Logotipo LS LG industrial Systems

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product

Privacy

Shipments

Returns

Description
Frequently questions

100A tetrapolar contactor (4 poles) in AC1 category or 65A in AC3 category, the contactor is equipped with high robust main contacts, suitable for demanding applications for control of electrical systems, electrogen groups and general use. The contactor can be fastened by screws or by DIN rail.

Technical details:

Manufacturer: LS (LG Industrial Systems).
Contactor Reference: MC-65a/4 AC230V 50/60Hz.
Maximum operating voltage: 690Vac.
Coil voltage: 230Vac.
Number of contactor poles: 4.
Assigned current for contactor in AC3: 65A.
Assigned current for contactor in AC1: 100A.
Maximum power (kW) 380-400Vac: 70kW.
Maximum power (kW) 220-230Vac: 37kW.
Maximum peak voltage (Uimp): 6kV.
Maximum number of operations per hour: 1800.
Mechanical durability: 12,000,000 cycles.
Electrical durability: 1,000,000 cycles.
Weight: 1.2 Kg.
Dimensions: 91x123.5x117.8 mm.

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question

BUENAS TARDES ME GUSTARIA SABER SI DE ESTE CONTACTOR TENEIS EL MODULO DE CONTACTOS AUXILIARES. ES PARA PEDIR CONTACTOR CON EL MODULO.

Answer

Estimado cliente,

Gracias por su consulta.

Respecto al módulo de contactos auxiliares, también disponemos de modelos compatibles. Puede encontrar los accesorios auxiliares de la marca LS en la siguiente categoría:

https://adajusa.es/es/788-accesorios-para-contactores-ls-electric

Por favor, revise que el módulo que seleccione sea compatible con el modelo exacto del contactor antes de hacer el pedido.

Todos nuestros productos están destinados a uso profesional y deben ser instalados por personal cualificado. Verifique antes de realizar el pedido que se adapta a sus necesidades.

Atentamente,
Adajusa
www.adajusa.es

ISAAC on 07/11/2025 18:16:01
