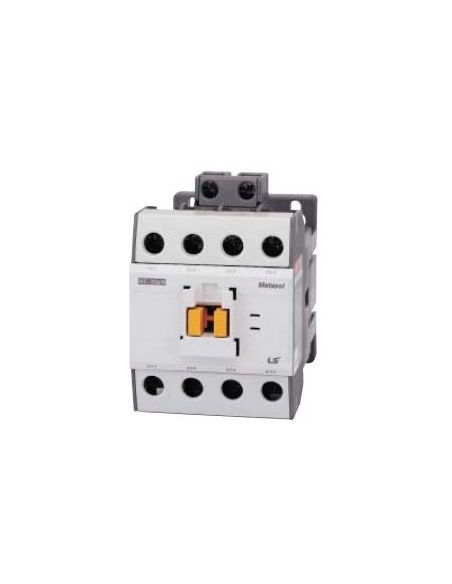

Tetrapolar contactor 50A coil 230Vac - LS

Four-pole contactor 50A coil 230Vac - LS

€68.22 Tax included

€55.46 tax excl.

97MC32A230A4P

Four-pole contactor equipped with high-capacity contacts for controlling electrical systems, generating sets, or general uses, 4-pole with a current capacity of 50A in AC1 or 32A in AC3, with 230Vac coil.

Maximum power AC1 (400Vac): 35kW.

Reference: MC-32a/4 AC230V 50/60HZ

4-pole contactor electrical diagram

Logo LS LG industrial Systems

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product

Privacy

Shipments

Returns

Description
Frequently questions

Four-pole contactor (4 poles) of 50A in category AC1 or 32A in category AC3, the contactor is equipped with highly robust main contacts, suitable for demanding applications for controlling electrical systems, generating sets and general use. The contactor can be fixed using screws or by DIN rail.

Technical characteristics:

Manufacturer: LS (LG).
Contactor reference: MC-32a/4 AC230V 50/60Hz.
Maximum operating voltage: 690Vac.
Coil voltage: 230Vac.
number of contactor poles: 4.
Rated current for contactor in AC3: 32A.
Rated current for contactor in AC1: 50A.
Maximum power (kW) 380-400Vac: 35kW.
Maximum power (kW) 220-230Vac: 18kW.
Maximum peak voltage (Uimp): 6kV.
Maximum number of operations per hour: 1800.
Mechanical durability: 15.000.000 cycles.
Electrical durability: 1.000.000 cycles.
Weight: 0.6 kg.
Dimensions: 59x83.5x94.5 mm.

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question

CONTATTORE TETRAPOLARE 50A BOBINA 230VAC - LS 49,90 € IVA inclusa 40,90 € IVA esclusa Contattore tetrapolare dotato di contatti ad alta capacità per il controllo di impianti elettrici, gruppi elettrogeni, o usi generali, di 4 poli con una capacità di corrente di 50A in AC1 o 32A in AC3, con bobina 230Vac. Potenza massima AC1 (400Vac): 35kW. Riferimento: MC-32a/4 AC230V 50/60HZ Quale è la potenza in AC3? E' adatto per dispositivo interfaccia impianto FV 15 kW? Quale è il blocco contatti ausiliari 1 N0+ 1 NA? Grazie

Answer

Buongiorno,

Questo contattore non è adatto per impianti fotovoltaici. Per gli impianti fotovoltaici sono previsti specifici contattori in corrente continua.

Il nostro fornitore dispone di modelli per applicazioni in corrente continua, ma per potervi offrire abbiamo bisogno che confermiate le seguenti informazioni:

- stress lavorativo
- intensità di cui hai bisogno
- categoria di impiego DC-3?

Siamo in attesa di conferma.

Saluti

ADAJUSA

Antonio on 02/24/2023 20:46:01
