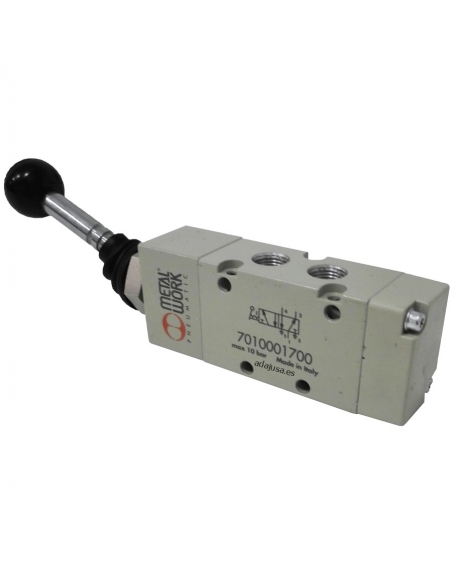

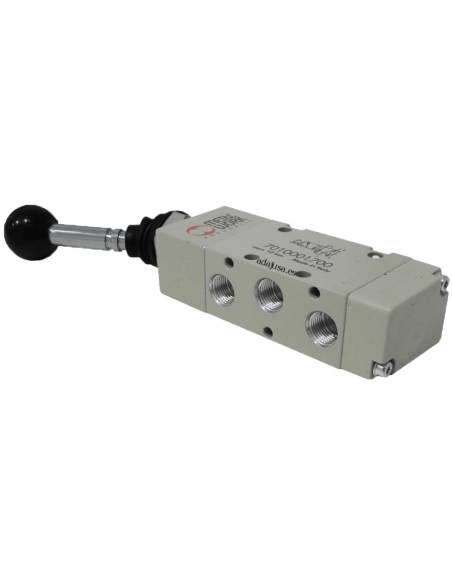

Manual lever valve 1/8 5/2 fixed position front lever - Metal Work

€40.69 Tax included

33.08 tax excl.

7010001700

1/8 valve manual drive by front lever. 5 ways 2 fixed positions, metal body. For dual-effect cylinder control.

Reference: 7010001700

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


1/8 manual lever-operated valve with 2 fixed positions, 5-way 2 fixed positions, which allow to control double-effect cylinders. In one position the cylinder is collected, in another position the cylinder advances. It can also be used as a pneumatic circuit passage valve or cut-off.

Fastening by side screws or front nut. For pneumatic applications.

  • Manufacturer: Metal Work.
  • Reference: MAV 25 VLB OO Code: 7010001700
  • Operating pressure bar: Empty ÷ 10
  • Operating temperature C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min ? bar: 121.43
  • Critical relationship b bar/bar: 0.32
  • Flow rate at 6 bar P 0.5 bar Nl/min: 400
  • Flow rate at 6 bar P 1 bar Nl/min: 550

For other models consult.

dimensiones valvula neumatica palanca frontal 1/8 5/2 biestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Questions

Question
Salve,

vorrei capire se la valvola è adatta a azionare avanti e indietro un cilindro o 63 ad aria. E non capisco a cosa si riferisce1/8 ?
Quanto mi costa la spedizione in Italia e quali sono i tempi?
Attendo info
M.Canu
Answer
Gentile Cliente,

1/8 si riferisce ai pollici del raccordo o del silenziatore da mettere sulla presa.

Per quanto riguarda il prezzo, è indicato sul sito. Se desideri un preventivo devi registrarti, aggiungere il prodotto al carrello e premere il pulsante Stampa carrello in PDF.

Infine, non possiamo dirti se può funzionare per le applicazioni che desideri fornirgli poiché dipenderà dal client.
Cogliamo inoltre l'occasione per ricordarvi che ad ADAJUSA vendiamo forniture industriali e tutti i prodotti richiedono la supervisione di personale qualificato.

Saluti
ADAJUSA
Massimo Canu on 03/03/2025 08:52:31
